Connector Views
Engine Control Module Connector End Views

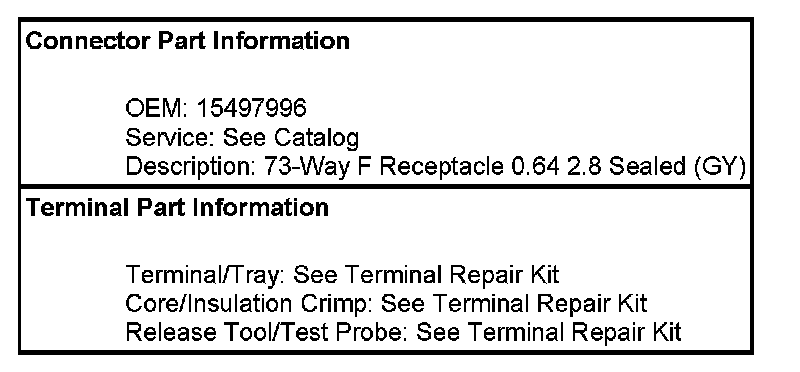

Powertrain Control Module (PCM) C1

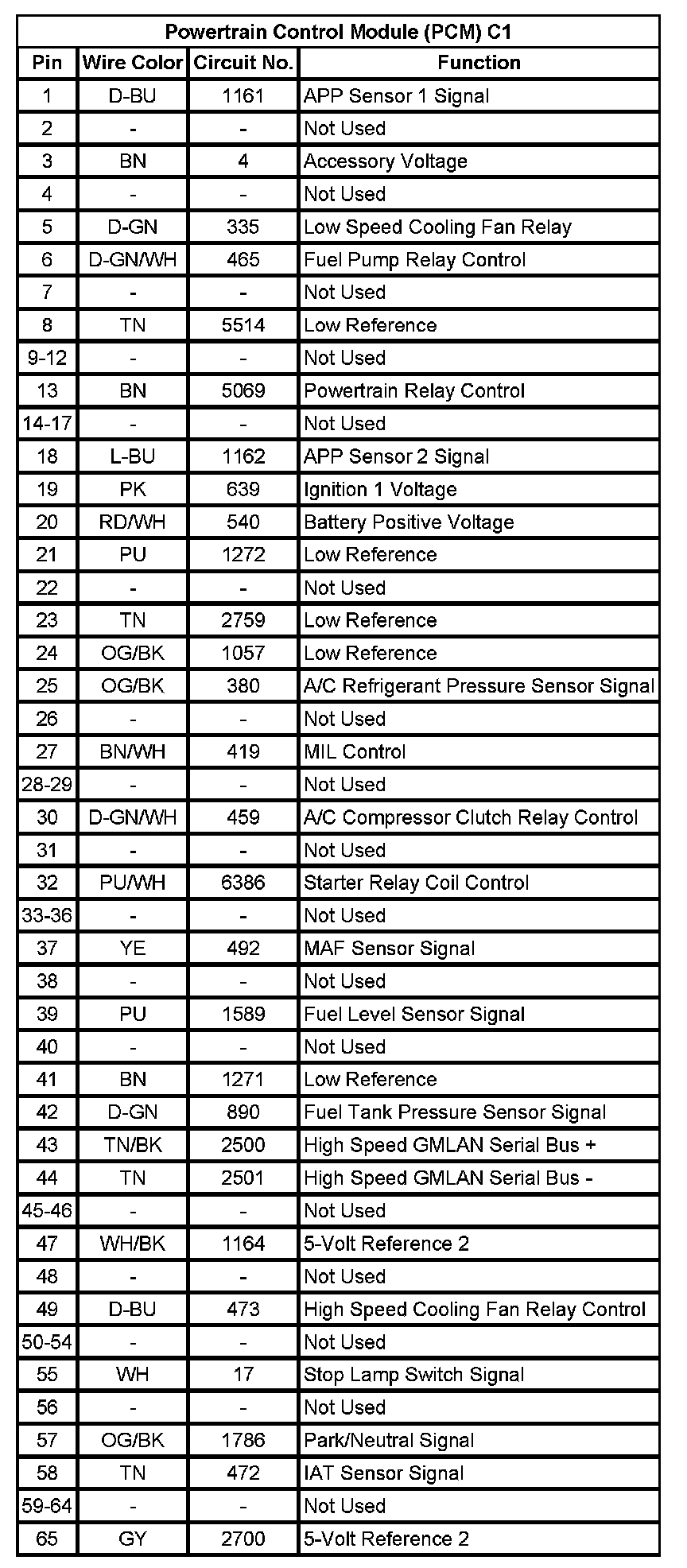

Powertrain Control Module (PCM) C1 (Pin 1 To 65):

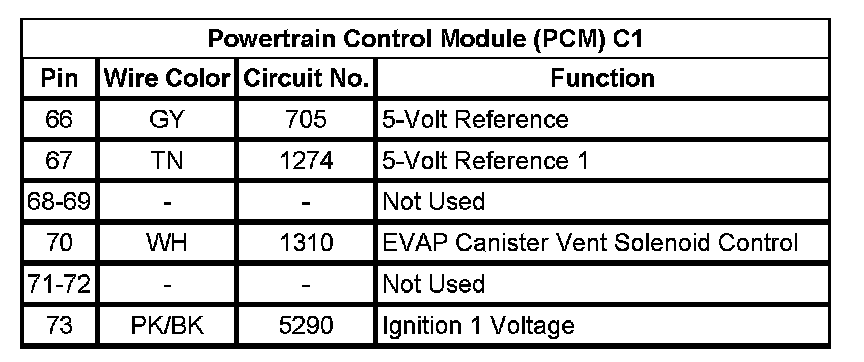

Powertrain Control Module (PCM) C1 (Pin 66 To 73):

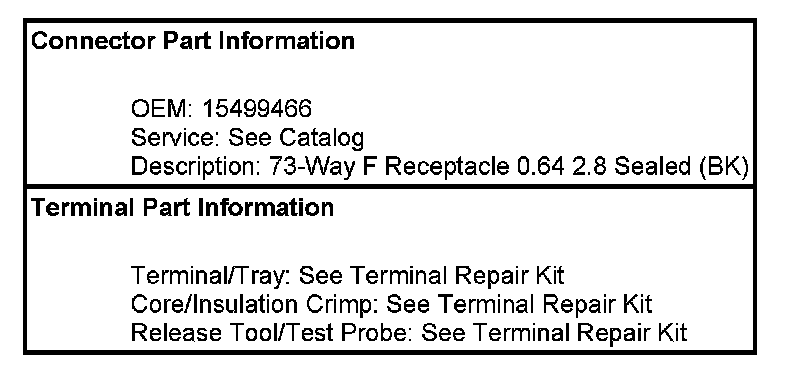

Powertrain Control Module (PCM) C2

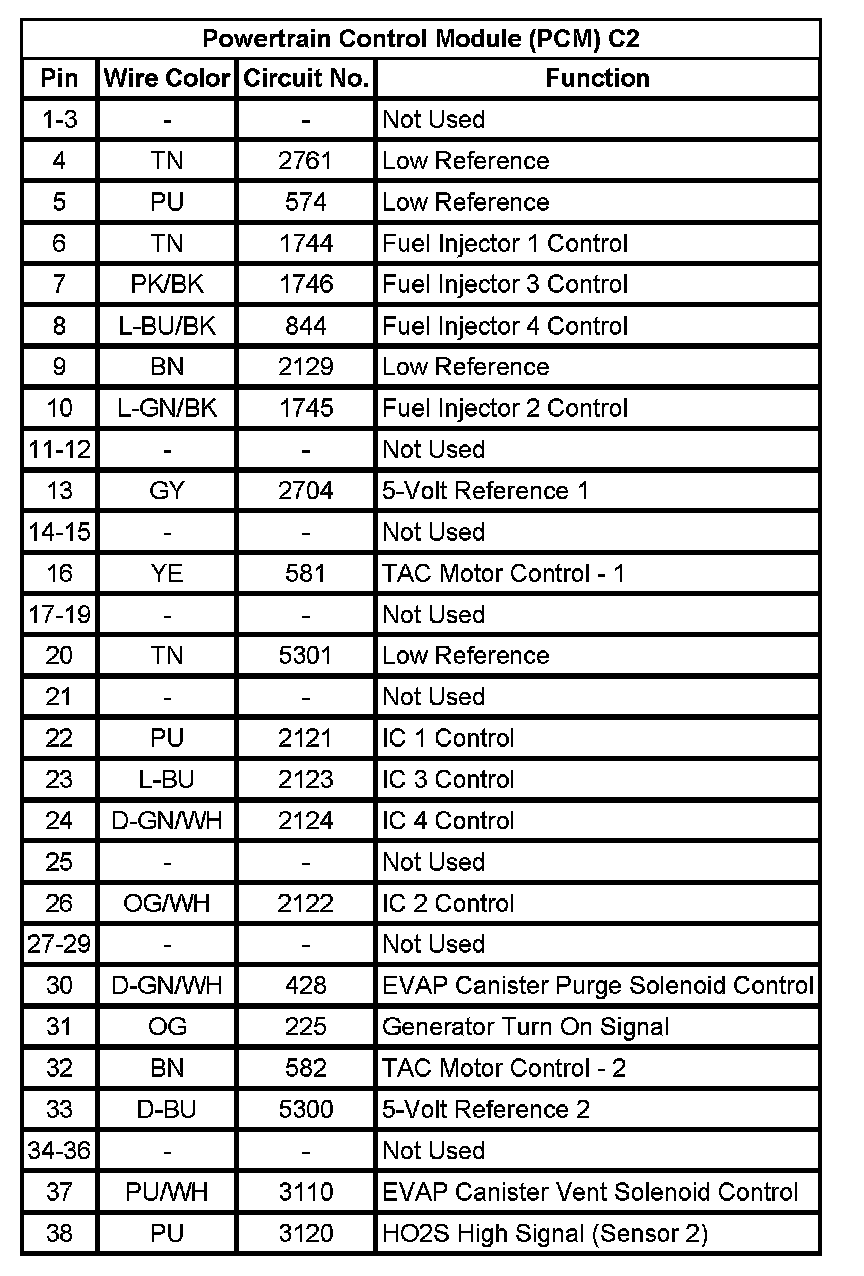

Powertrain Control Module (PCM) C2 (Pin 1 To 38):

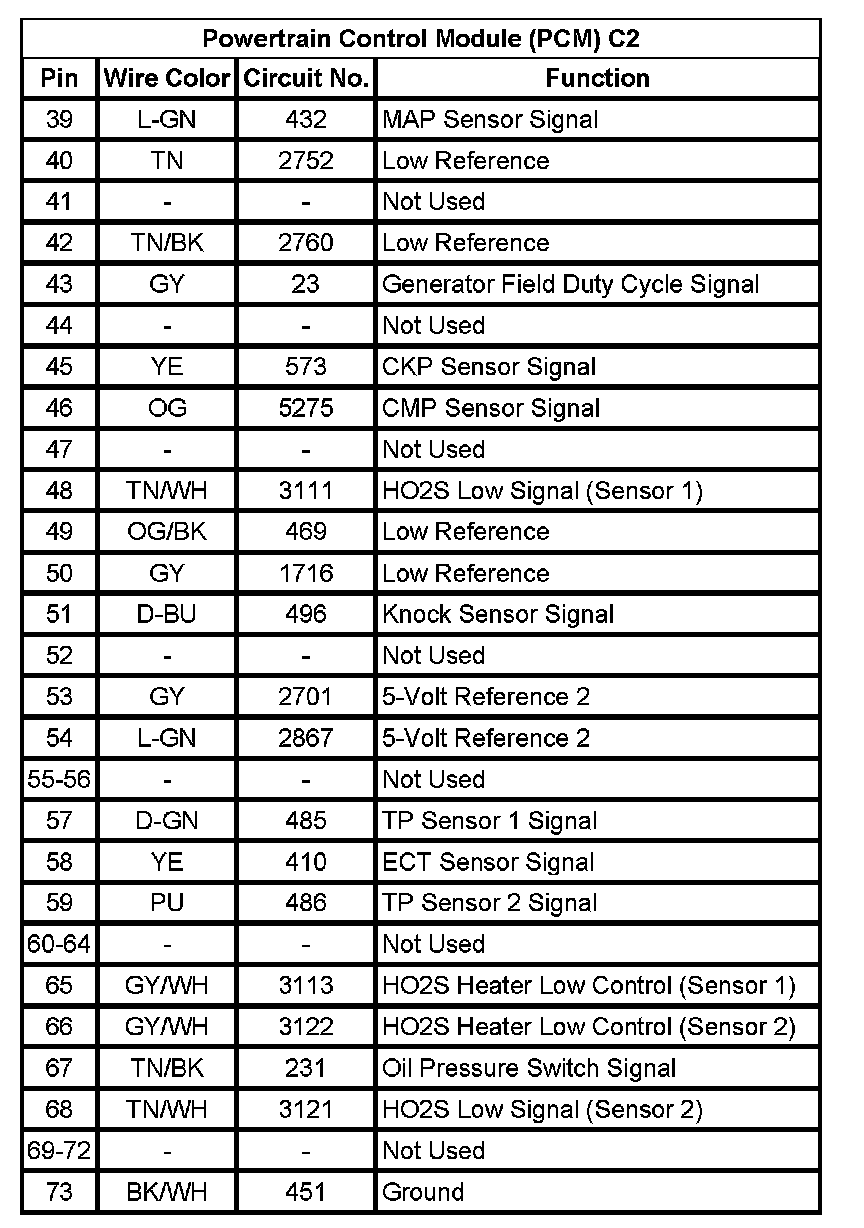

Powertrain Control Module (PCM) C2 (Pin 39 To 73):
