Installation Procedure

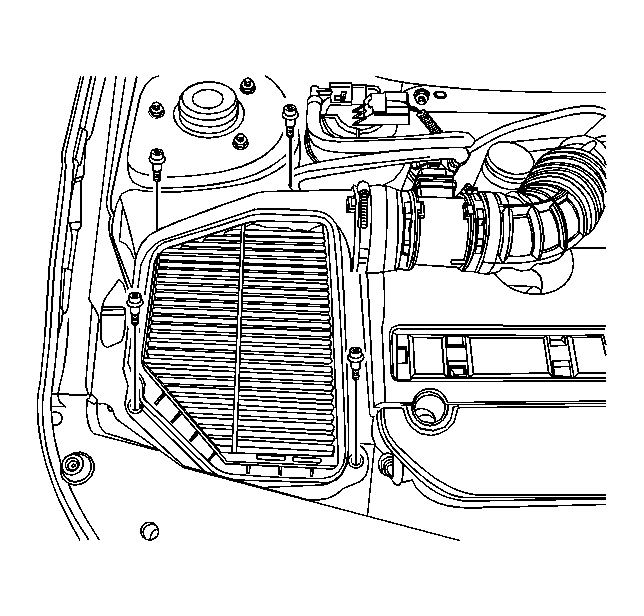

    Fig 1: View Of Air Cleaner Upper Housing, Element And Screws
    GM1822503Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner element.
    2. NOTE: Refer to Fastener Notice .
  2. Install the air cleaner upper housing.

    Tighten:  Tighten the air cleaner upper housing screws to 2 N.m (17.7 lb in)  .
