Installation Procedure

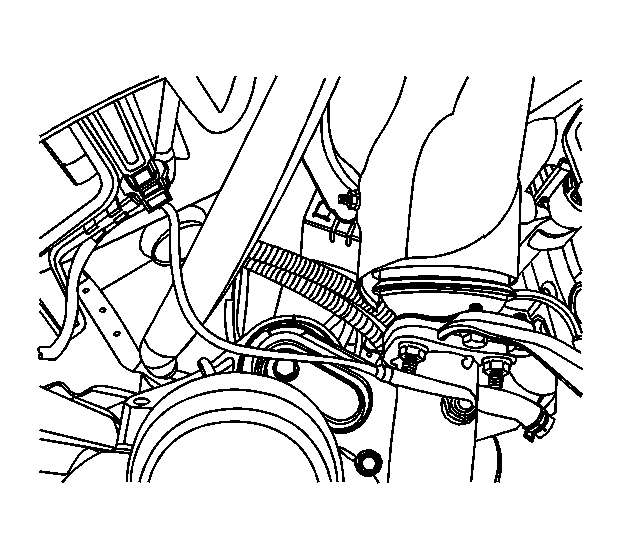

Fig 1: Locating Exhaust Gas Temperature Sensor Connector

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the EGT sensor 1 in the front exhaust pipe.
Tighten: Tighten the EGT sensor 1 to 45 N.m (33.2 lb ft) .
Connect the exhaust gas temperature (EGT) sensor 1 connector.
Connect the negative battery cable.
