Installation Procedure

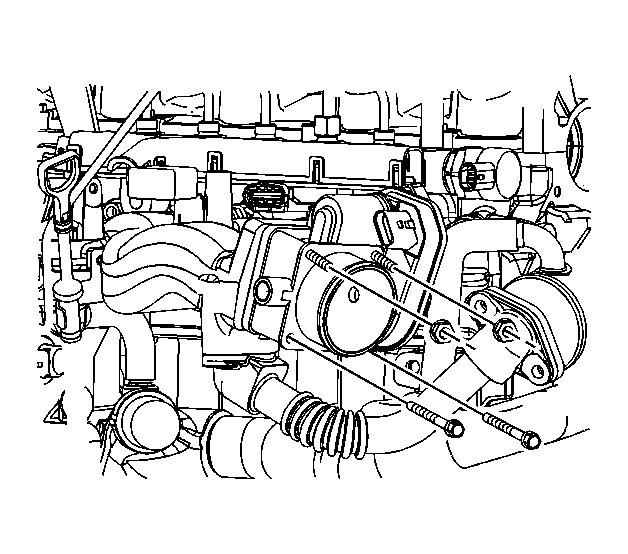

Fig 1: View Of Throttle Body Assembly And Retainers

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the throttle body.
Tighten: Tighten the throttle body retaining bolts and nuts to 9 N.m (79.7 lb in) .
Connect the ETC connector.
Install the charge air cooler outlet hose.
Install the engine cover. Refer to Engine Cover Replacement .
Connect the negative battery cable.
