Installation Procedure

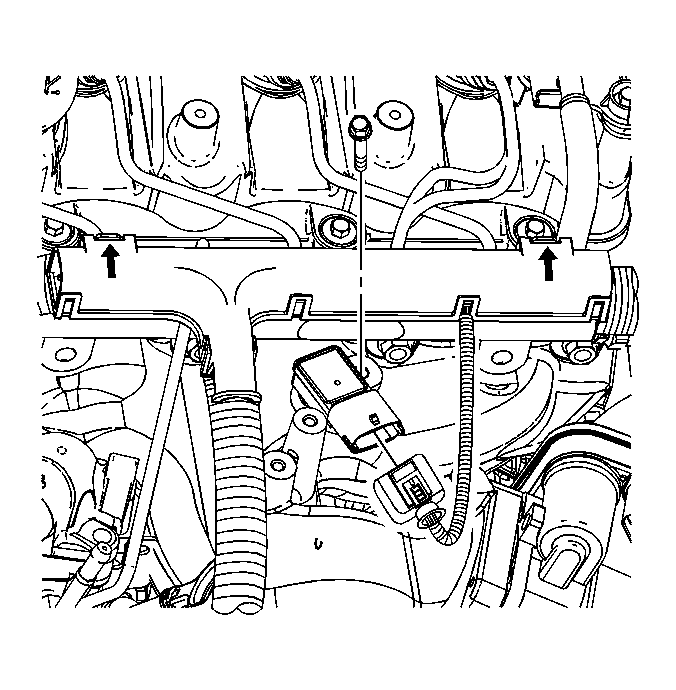

    Fig 1: View Of Boost Pressure Sensor And Connector
    GM1820588Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the boost pressure sensor.

    Tighten:  Tighten the boost pressure sensor bolt to 8 N.m (70.8 lb in)  .

  2. Install the engine wiring harness cover.
  3. Connect the boost pressure sensor connector.
    4. Fig 2: View Of Engine Cover And Fasteners
    GM1962428Courtesy of GENERAL MOTORS CORP.
  4. Install the engine cover. Refer to Engine Cover Replacement .
  5. Connect the negative battery cable.
