Installation Procedure

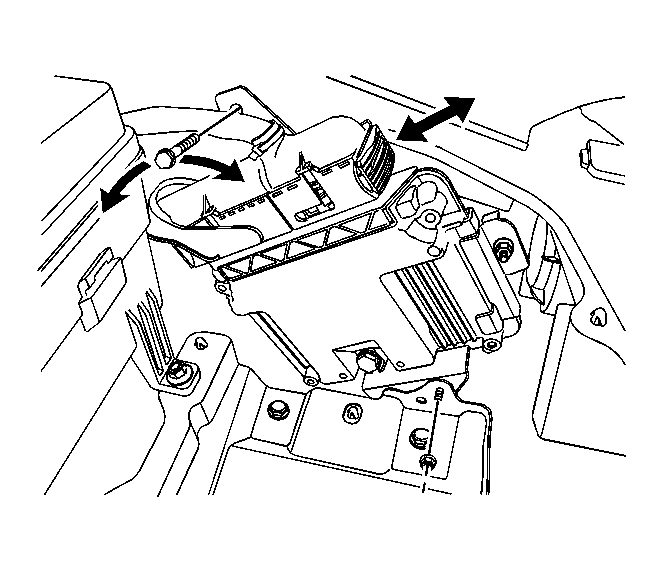

Fig 1: Identifying ECM, Bracket And Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

If removed, install the ECM bracket.
Tighten: Tighten the ECM bracket bolts to 12 N.m (106 lb in) .
Install the ECM.
Connect the ECM connectors.
Install the battery. Refer to Battery Replacement .
