ECM-IMA Diesel Injector Replacement (IQA) Programming

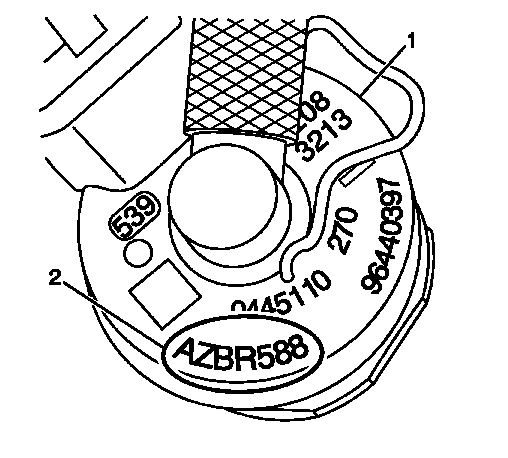

Fig 1: Identifying Injector Code

Courtesy of GENERAL MOTORS CORP.

1. Ignition OFF.
2. Record all the IQA codes from the corresponding cylinder from each injector that is being replaced or from all injectors if the ECM was replaced.
3. From the scan main menu, select service programming system, then follow the instructions on the screen.
4. Enter the 7 digit IQA code (2) from the injector or injectors (1).
