Passenger Compartment/Roof Component Views

Passenger Compartment/Roof Component Views

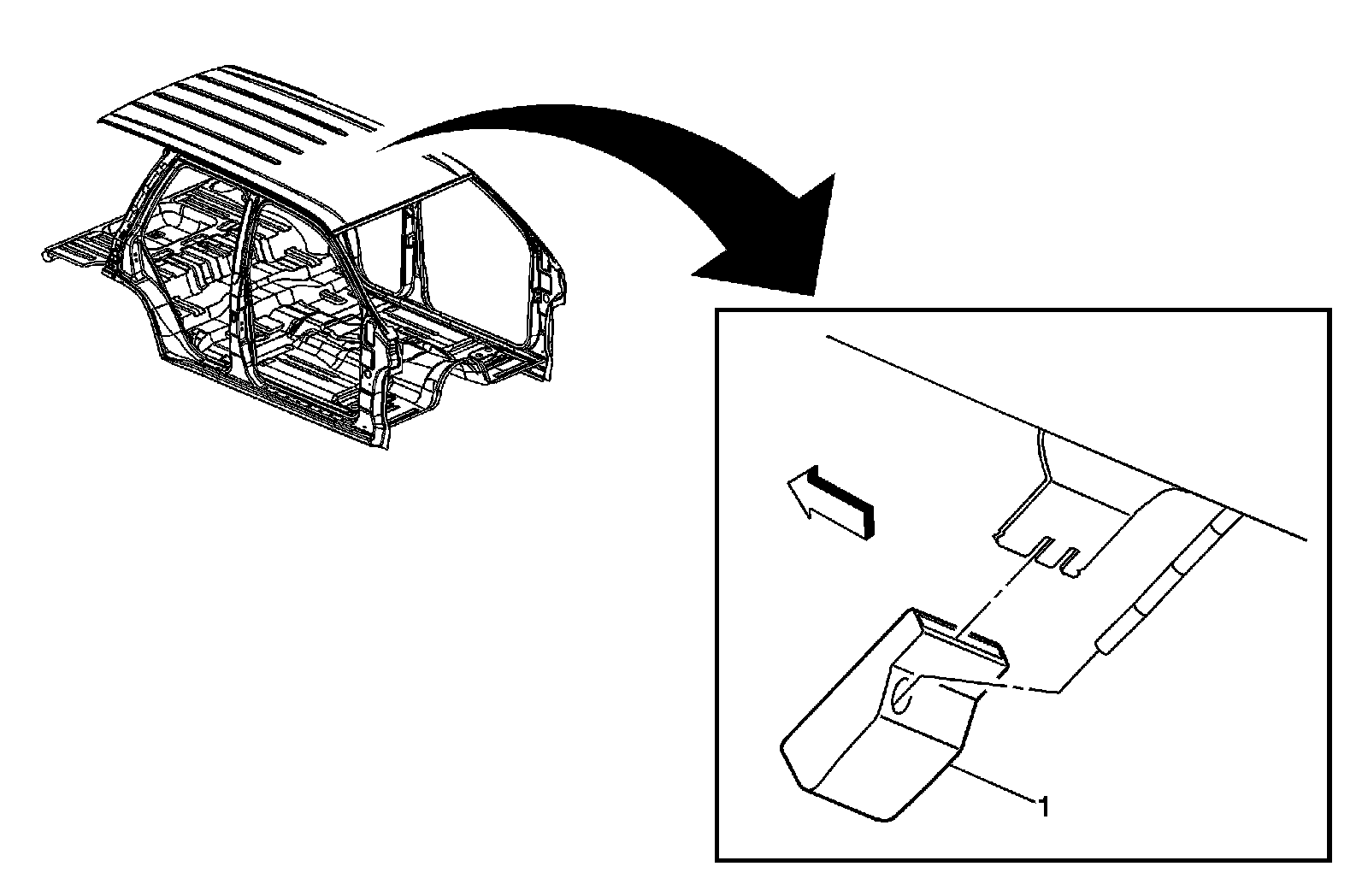

Front of Roof Components




1 - Global Positioning System (GPS) Antenna

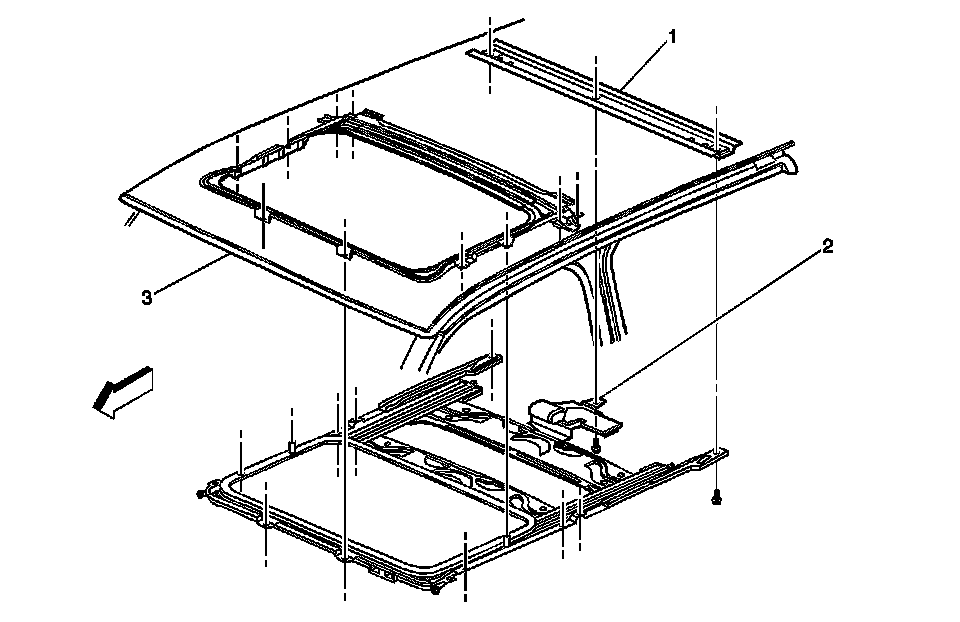

Top of Roof Components




1 - Sunroof/Moonroof Reinforcement
2 - Sunroof Motor
3 - Sunroof/Moonroof Panel

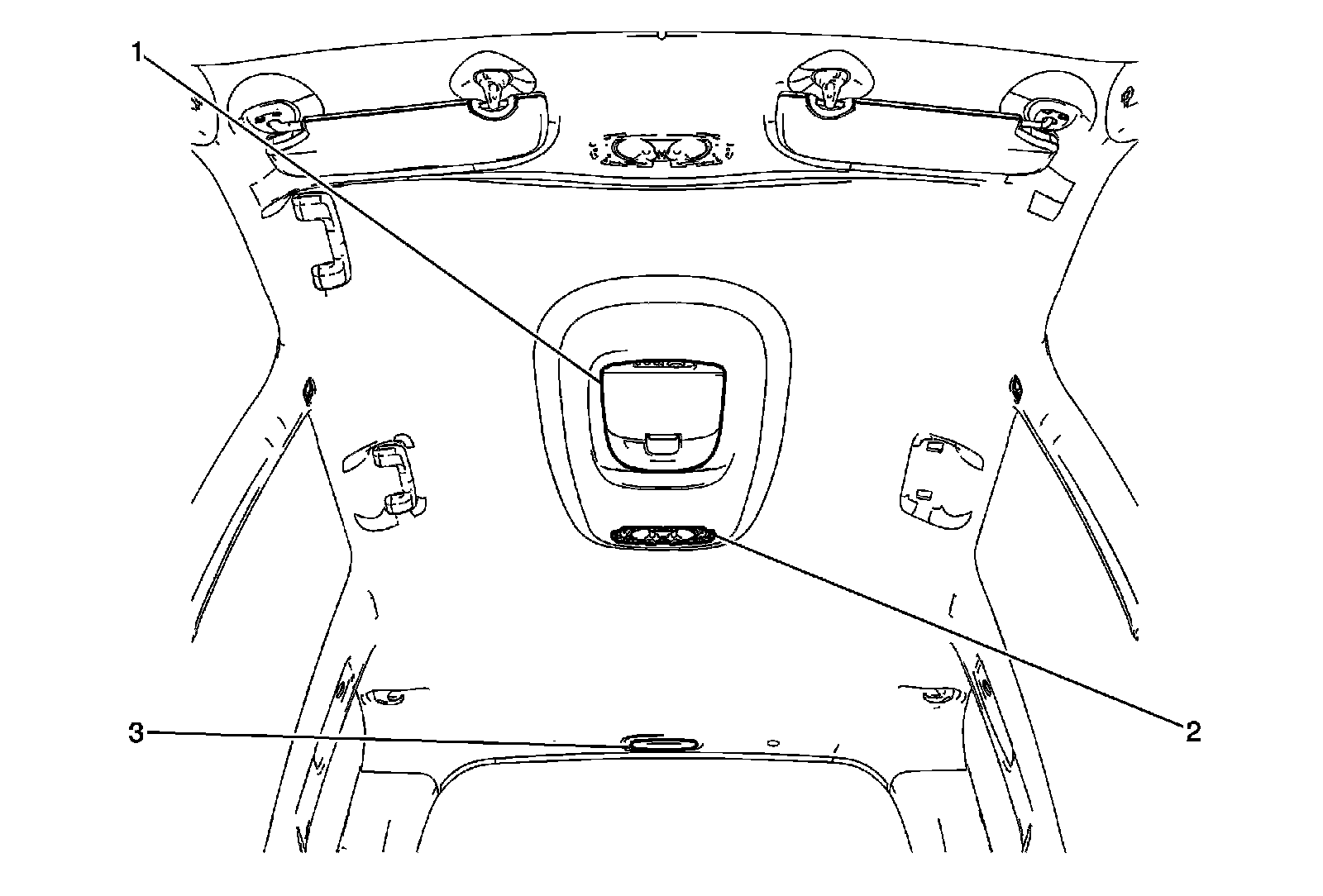

Headliner Components




1 - Digital Video Disc (DVD) Player (U42)
2 - Courtesy/Reading Lamp - Center
3 - Cargo Lamp

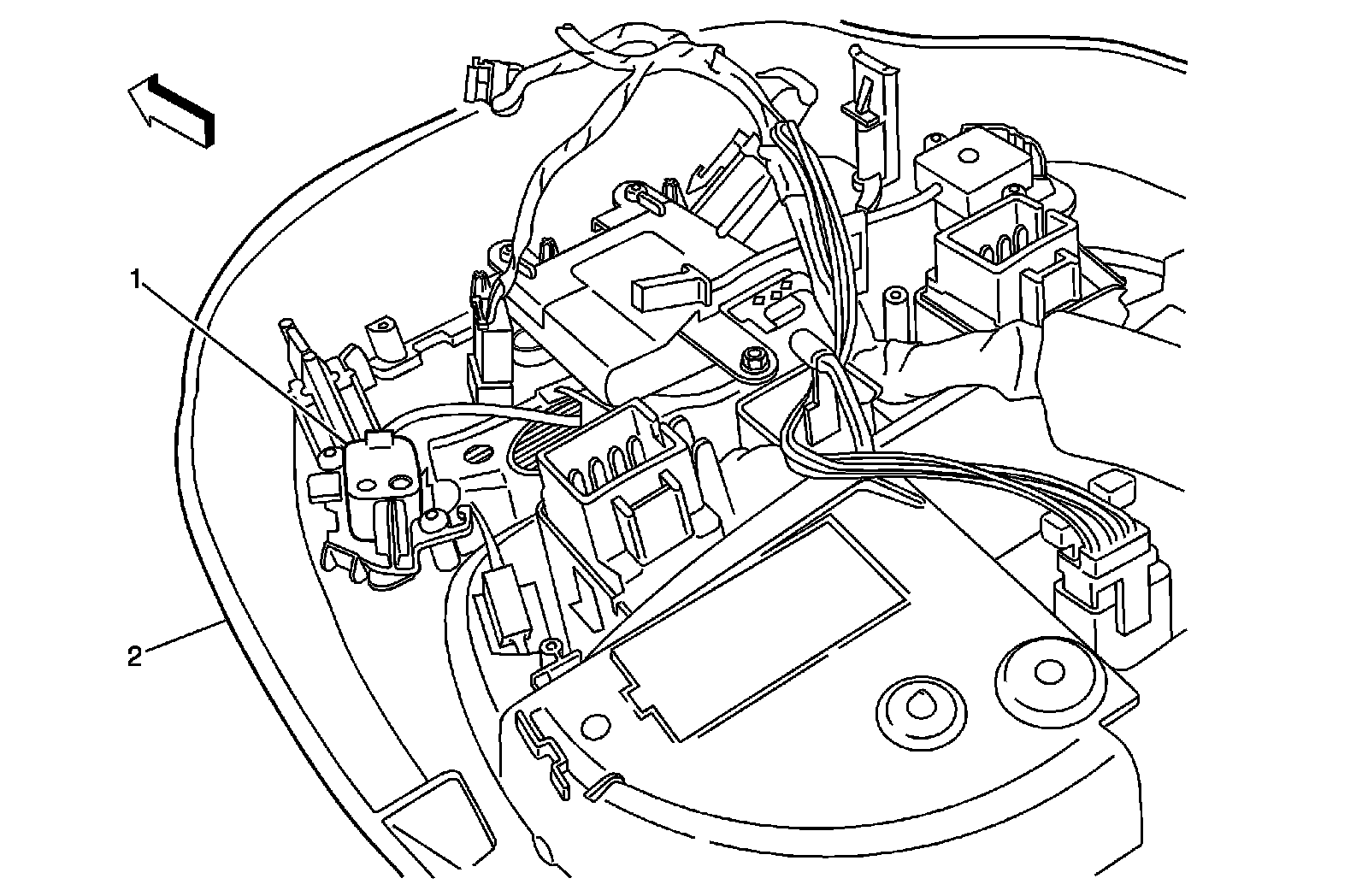

Overhead Console Components




1 - Cellular Microphone (UE1)
2 - Overhead Console
