Amplifier, Sound System
Component Connector End Views

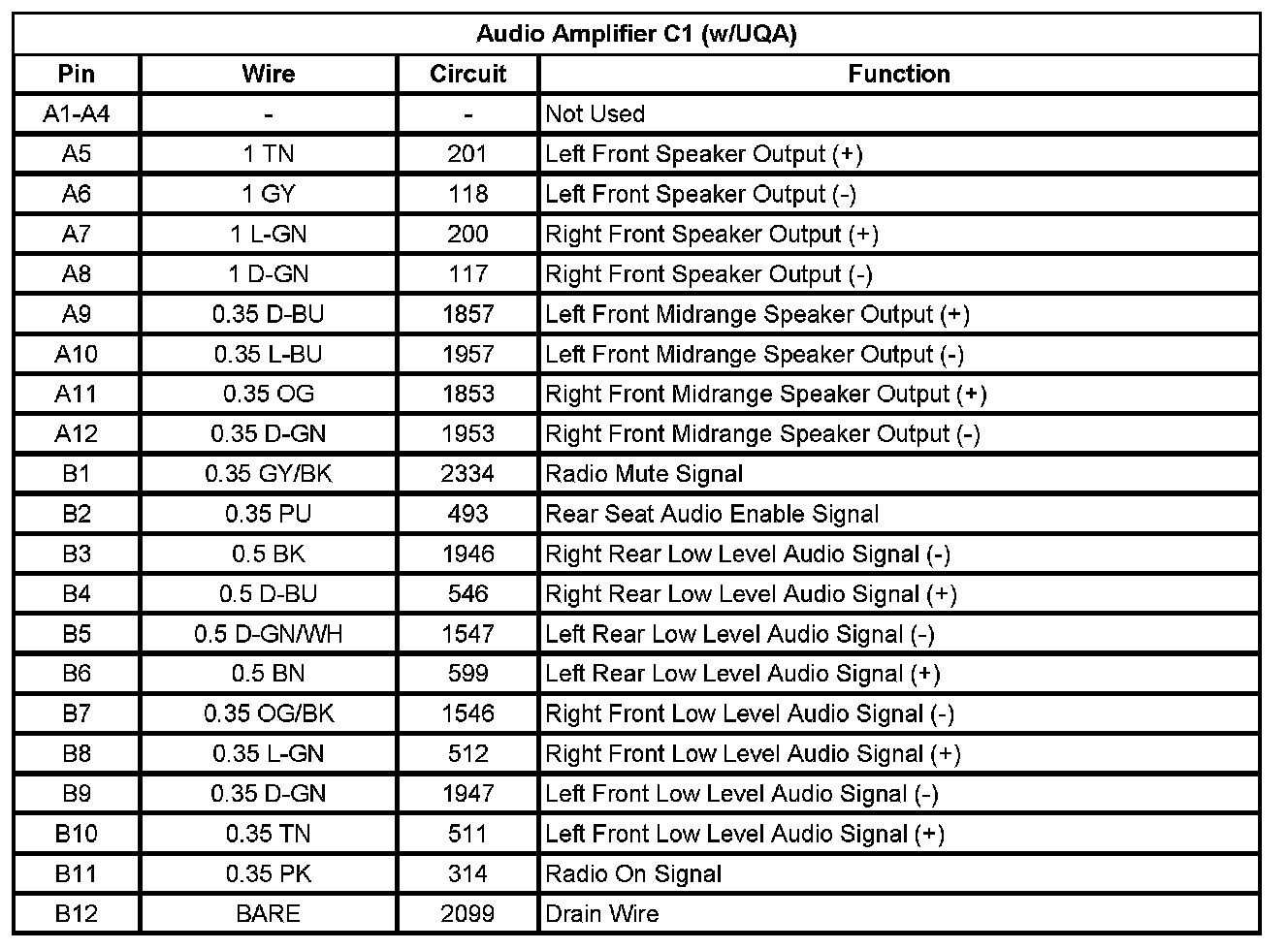

Audio Amplifier C1 (w/UQA)
Audio Amplifier C2 (w/UQA)
