Console Views



Harness Routing Views

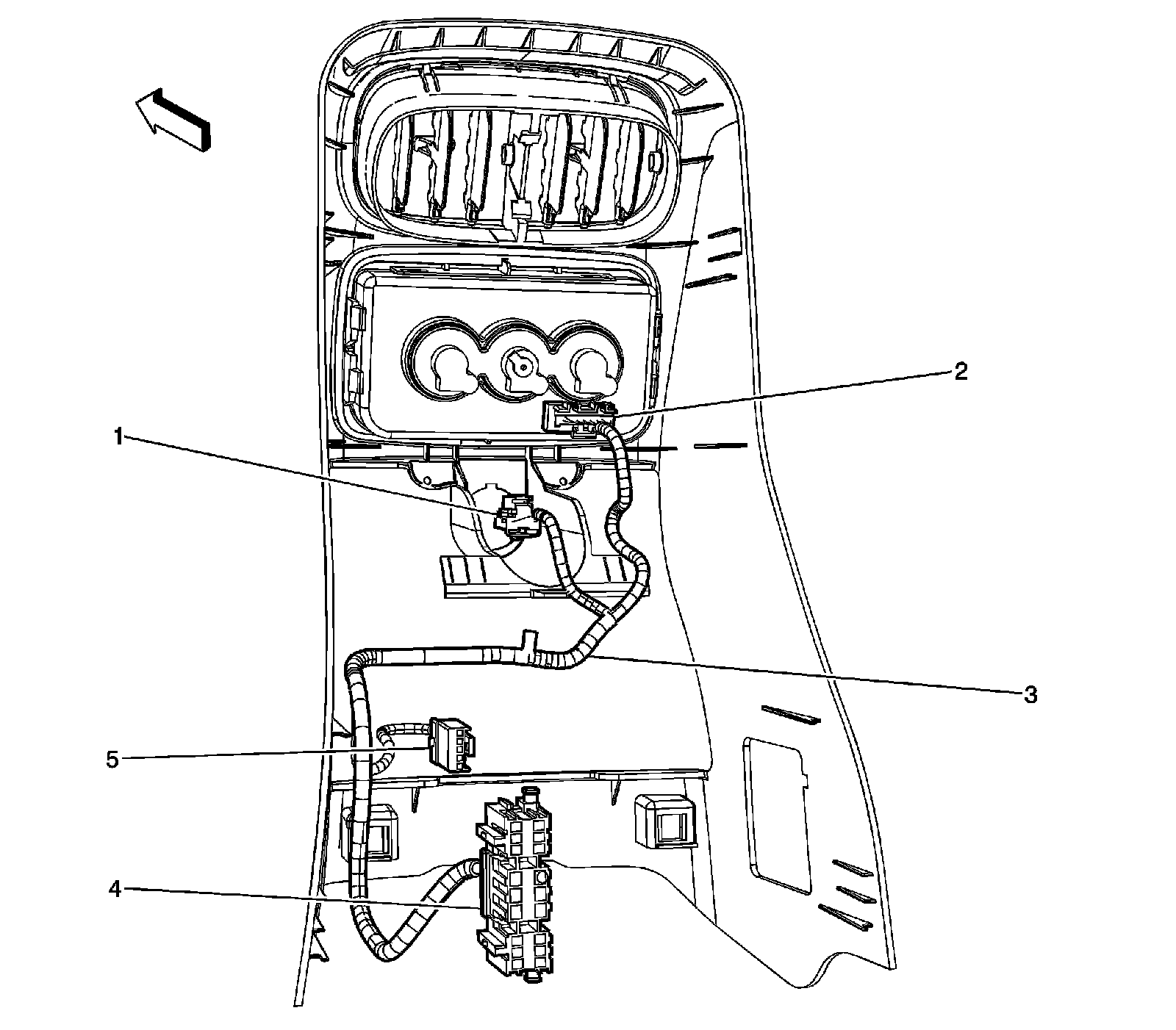

Floor Console Harness Routing




1 - Auxiliary Power Outlet - Console
2 - HVAC Control Module - Auxiliary
3 - S307
4 - C307
5 - Console Mode Actuator - Auxiliary
