Front of Vehicle/Engine Compartment Component Views

Fig 1: Engine Compartment Components - Forward Lamp Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3/AP8)
2	Inflatable Restraint Front End Sensor - Left
3	Horn - Left
4	Cooling Fan - Left
5	Cooling Fan - Right
6	Ambient Air Temperature Sensor (UH8/UH9)
7	Horn Assembly
8	Inflatable Restraint Front End Sensor - Right
9	Hood Ajar Switch Connector (AP3/AP8)

Fig 2: Front Fascia Exterior Lighting

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - High Beam - Left
2	Headlamp - Low Beam - Left
3	Marker Lamp - Left Front
4	Park/Turn Signal Lamp - Left Front
5	Park/Turn Signal Lamp - Right Front
6	Marker Lamp - Right Front
7	Headlamp - Low Beam - Right
8	Headlamp - High Beam - Right

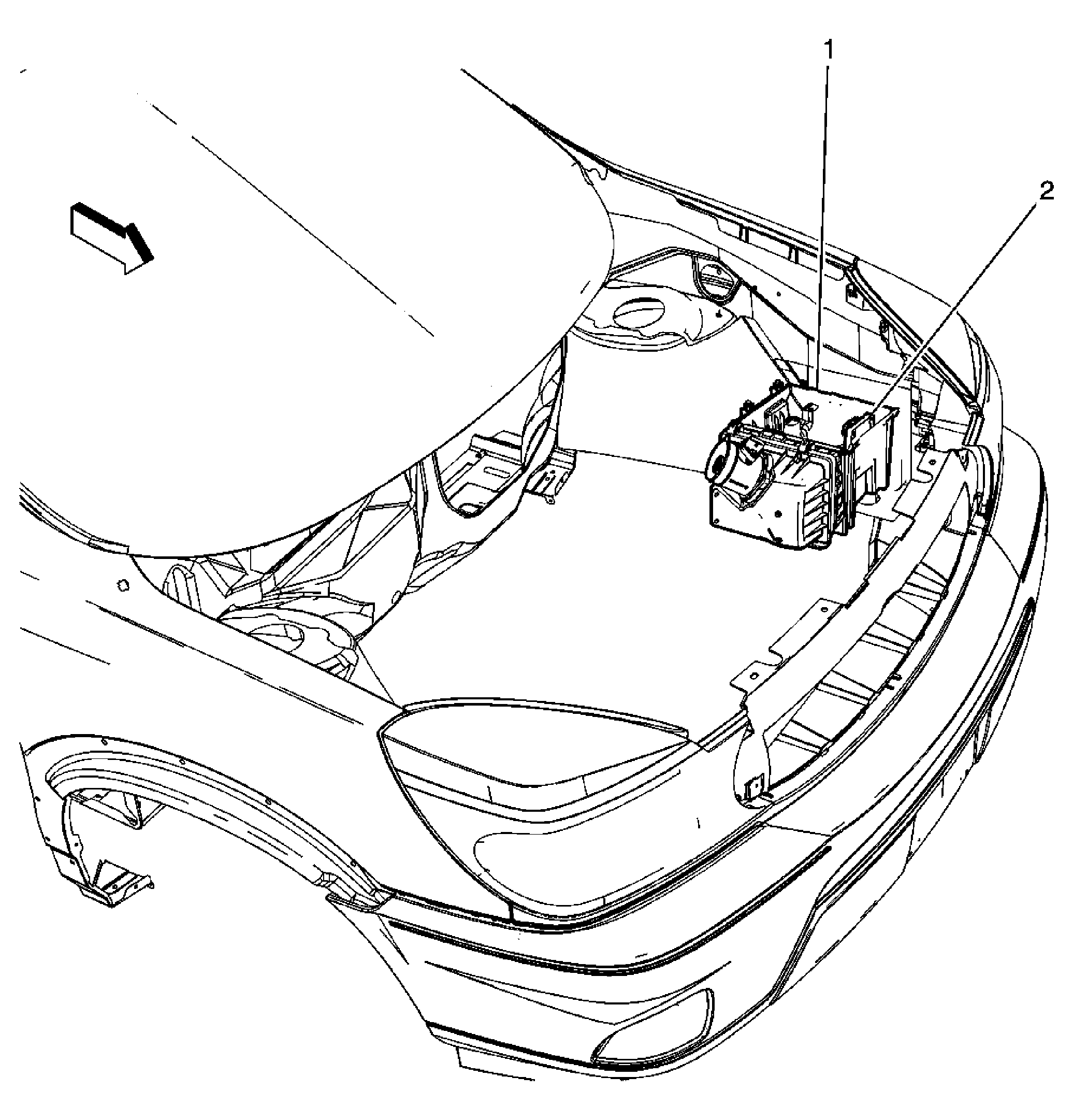

Fig 3: Left Front of Engine Compartment Components 1 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Cleaner Assembly
2	Transmission Control Module (TCM)

Fig 4: Left Front of Engine Compartment Components 2 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Dash Panel
2	Electronic Brake Control Module (EBCM)

Fig 5: View Of Engine Compartment Components - I/P Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Windshield Wiper Motor
3	Brake Fluid Level Switch
4	Windshield Washer Fluid Pump
5	Rear Window Washer Fluid Pump

Fig 6: Right Front of Engine Compartment Components 1 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	X108
3	Rear Window Washer Fluid Pump Relay
4	Instrument Panel Harness

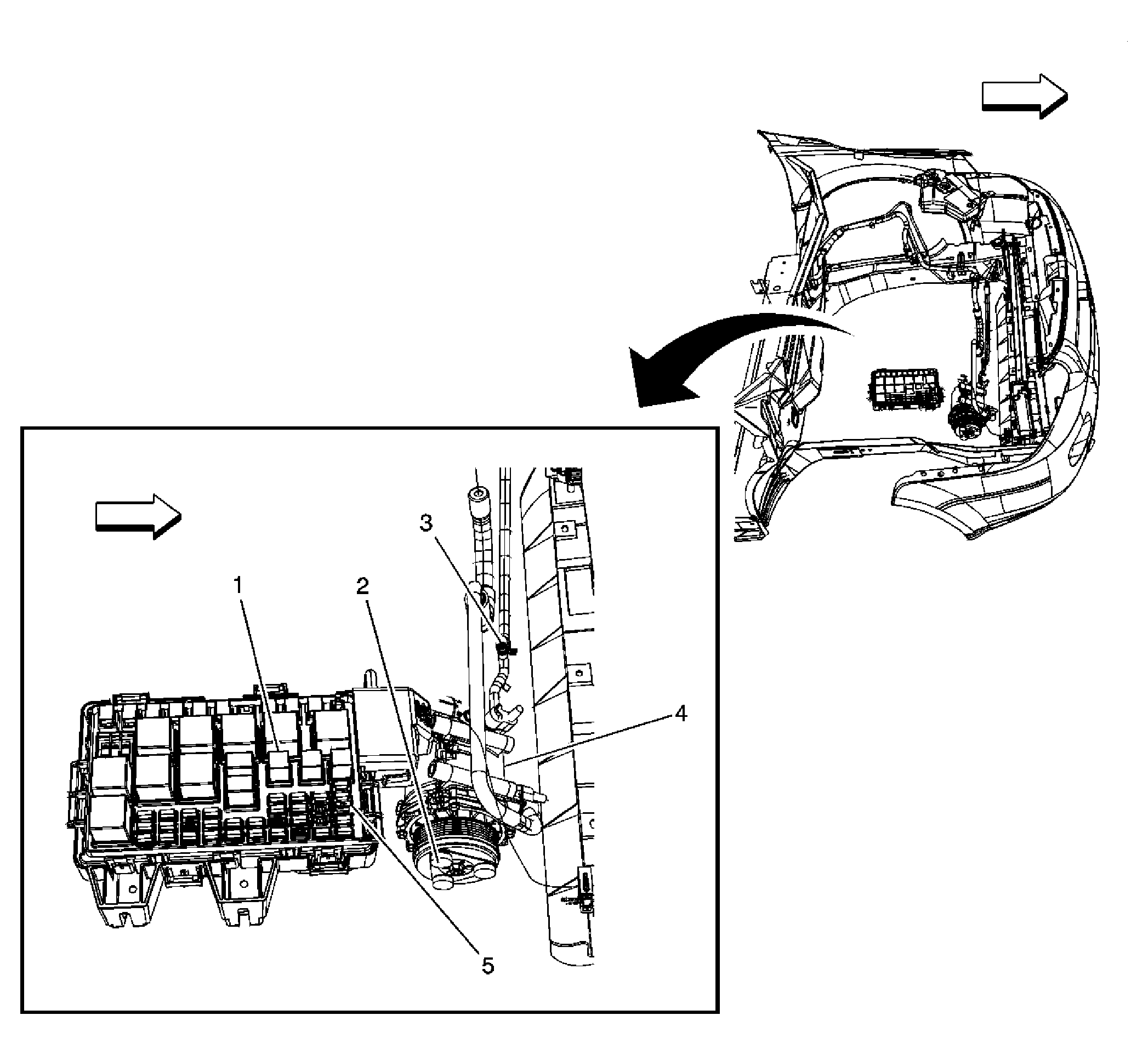

Fig 7: Right Front of Engine Compartment Components 2 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C CLTCH Relay
2	A/C Compressor Clutch
3	A/C Refrigerant Pressure Sensor
4	A/C Compressor
5	DIODE 3
