Electrical Diagrams



Automatic Transmission Controls Schematics

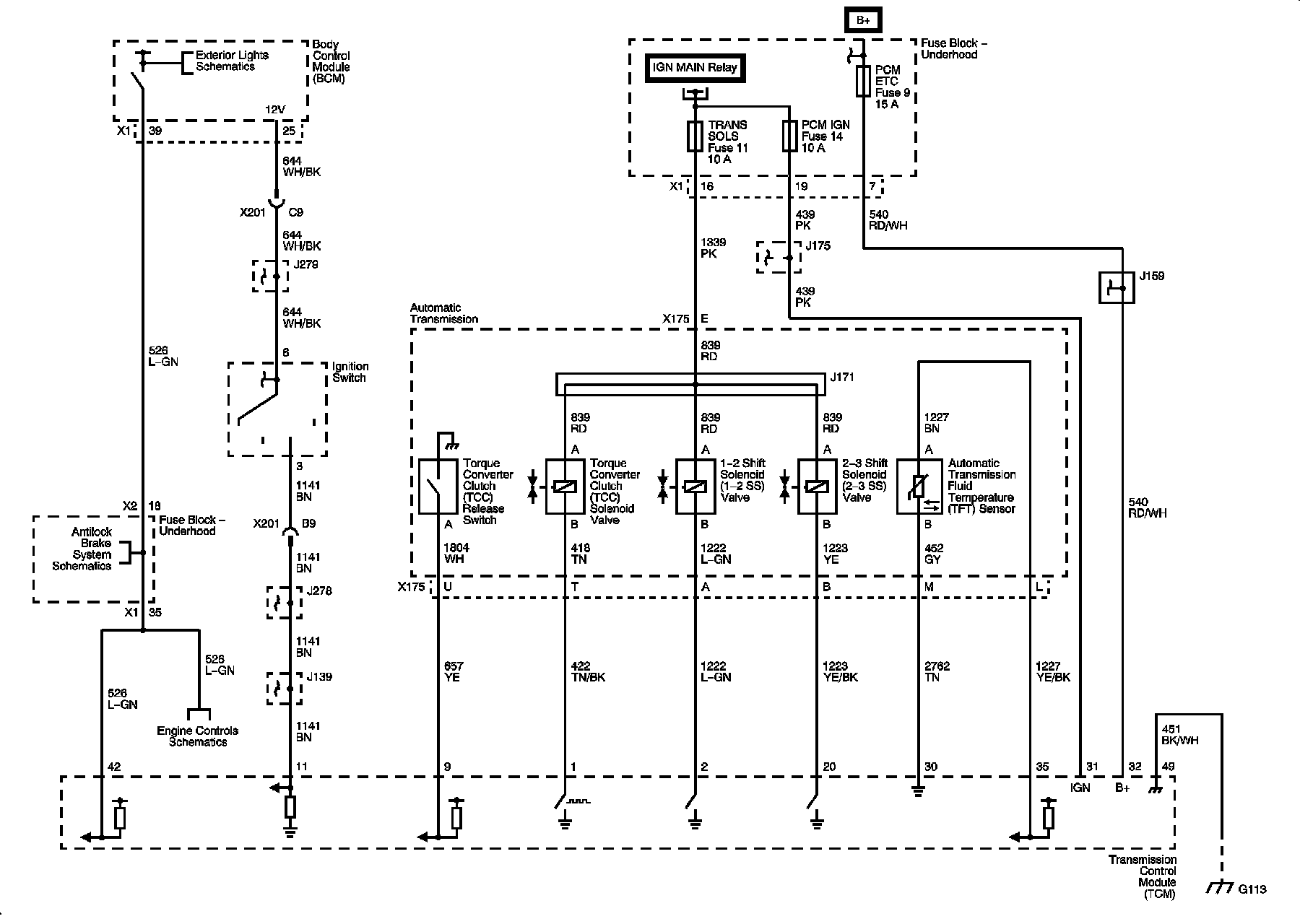

Ground, Power, Shift Solenoids, Stop Lamp Switch, TCC, and TFT





Indicators, ISS, Pressure Control, Serial Data, and VSS





Internal Mode Switch
