Communication Interface Module Bracket Replacement

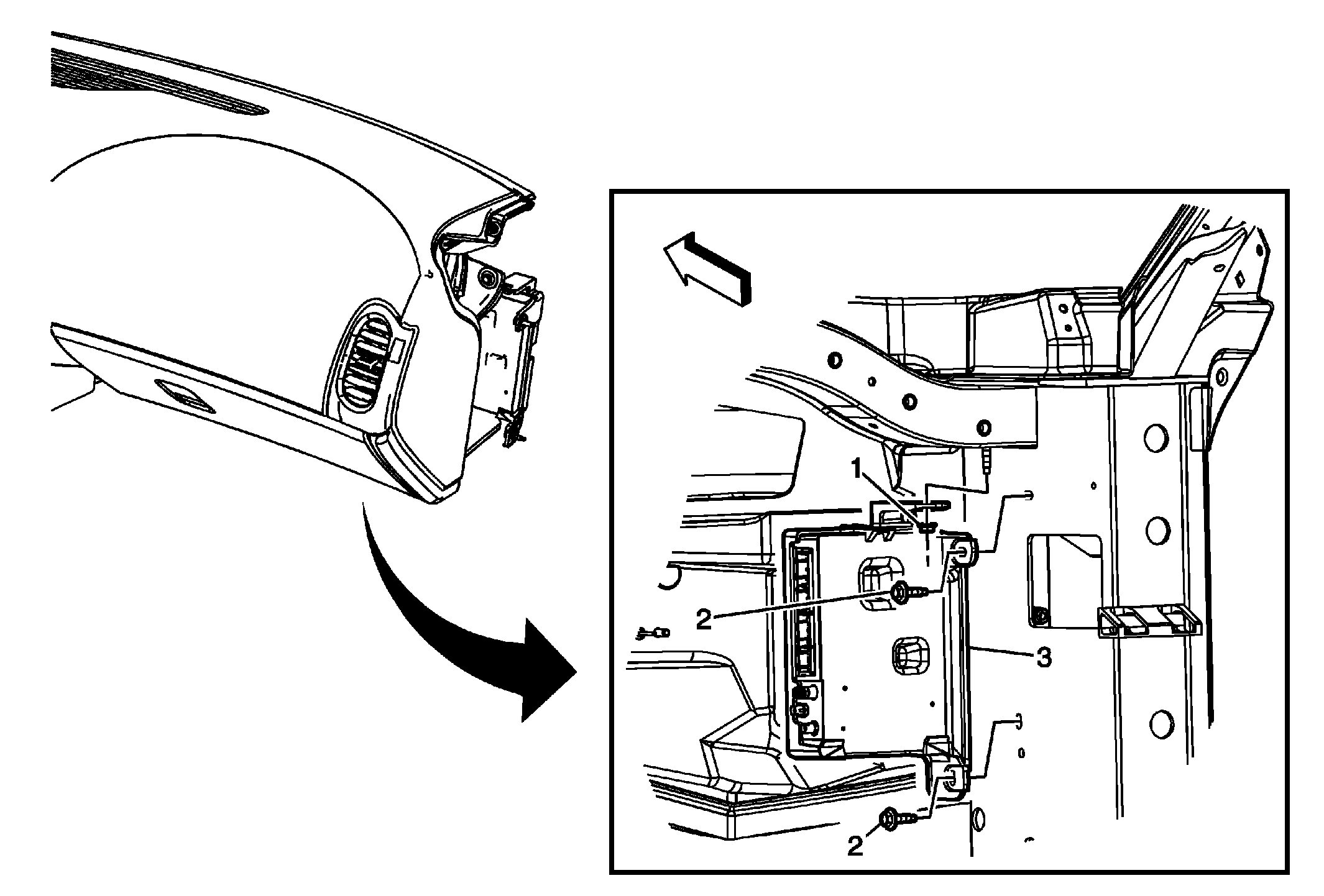

Fig 1: View Of Communication Interface Module Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel insulator right panel. Refer to Instrument Panel Insulator Panel Replacement .
1	Communication Interface Module Nut (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Communication Interface Module Bolt Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
3	Communication Interface Module Bracket Procedure Disconnect the electrical connections. If replacing the communication interface module be sure to transfer Bluetooth antenna, if equipped. For programming and set up procedures, refer to Control Module References .
