Cellular Phone Microphone

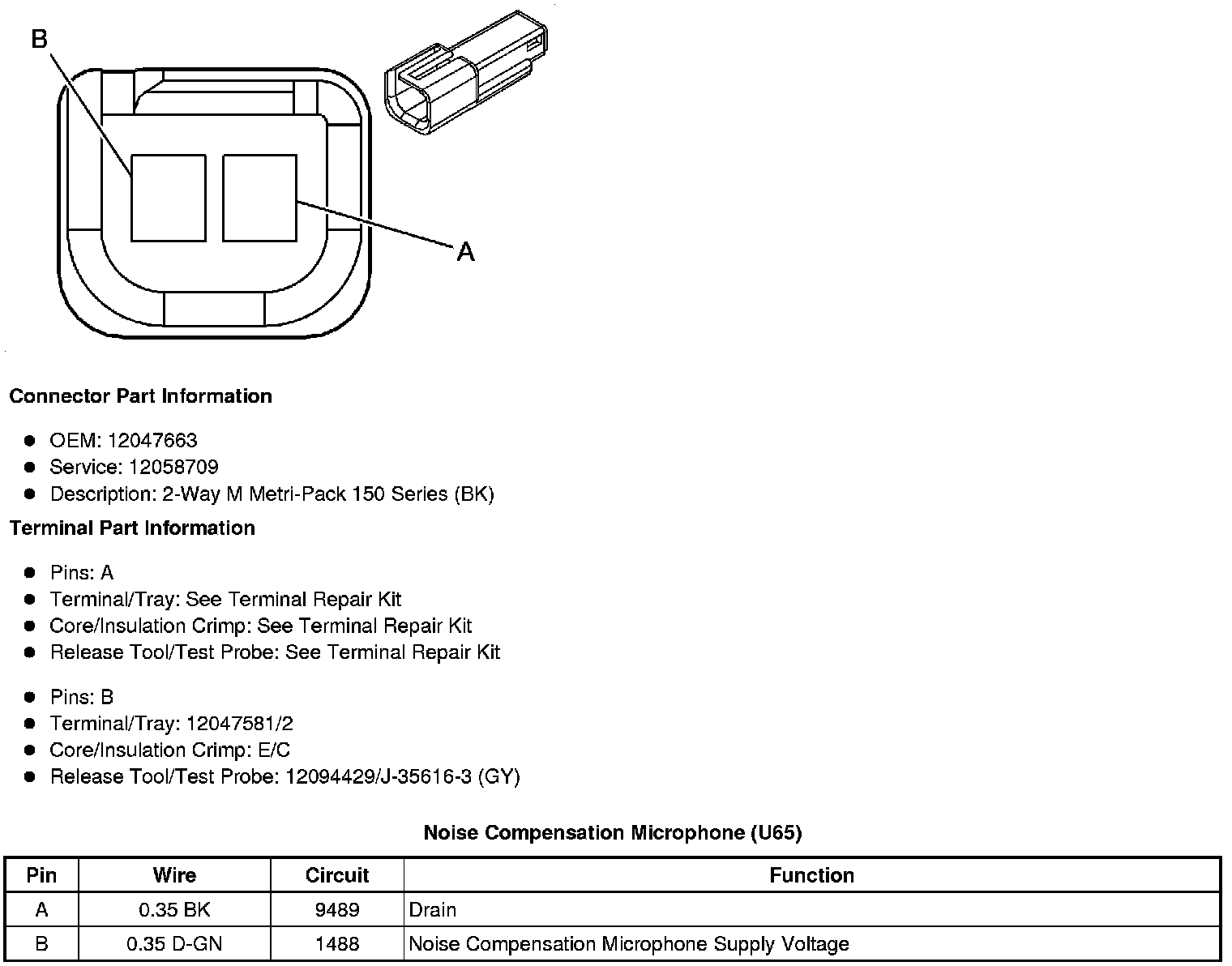

Component Connector End Views

Cellular Telephone Microphone






Noise Compensation Microphone (U65)
