Mirrors




Component Connector End Views

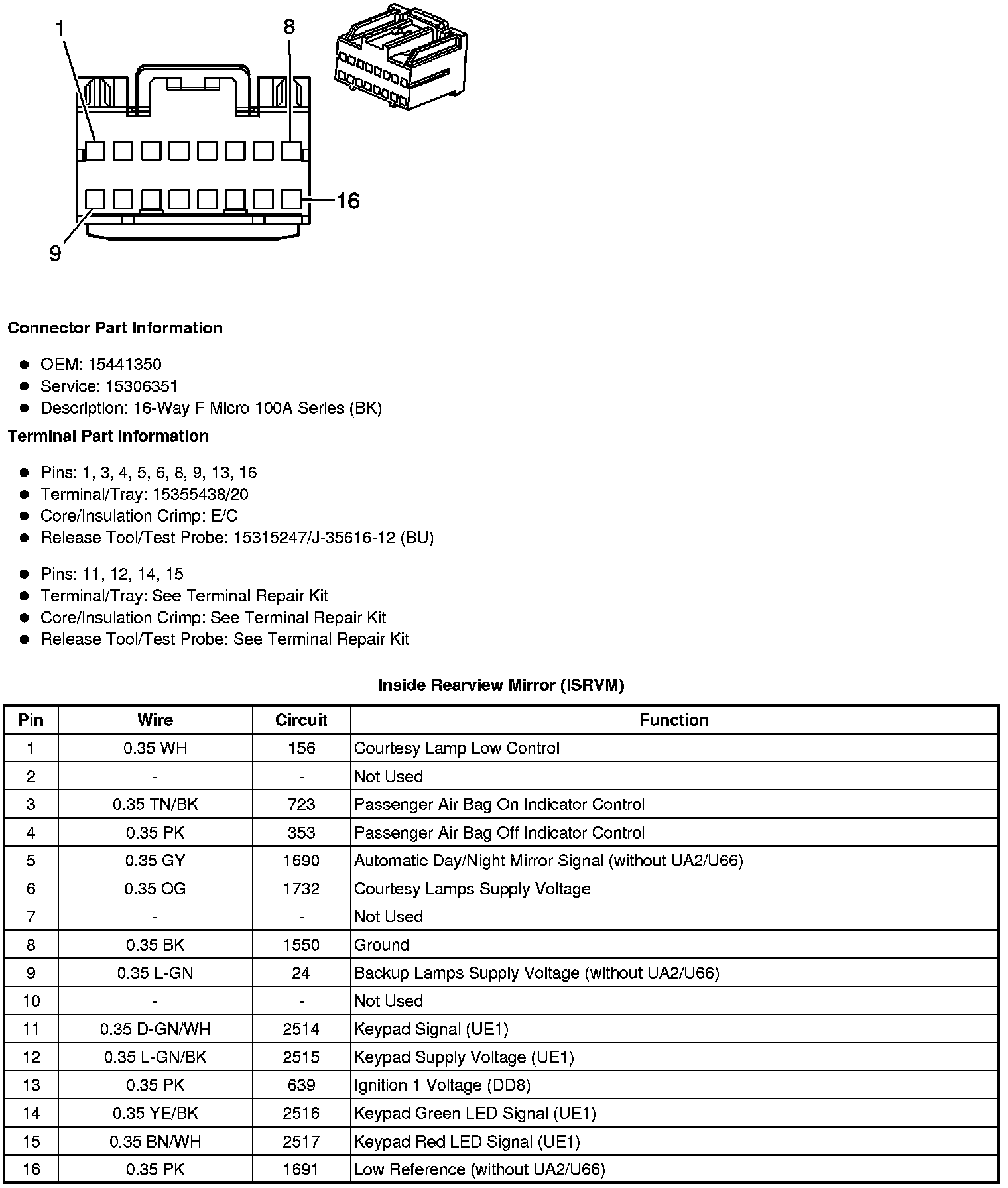

Inside Rearview Mirror (ISRVM)

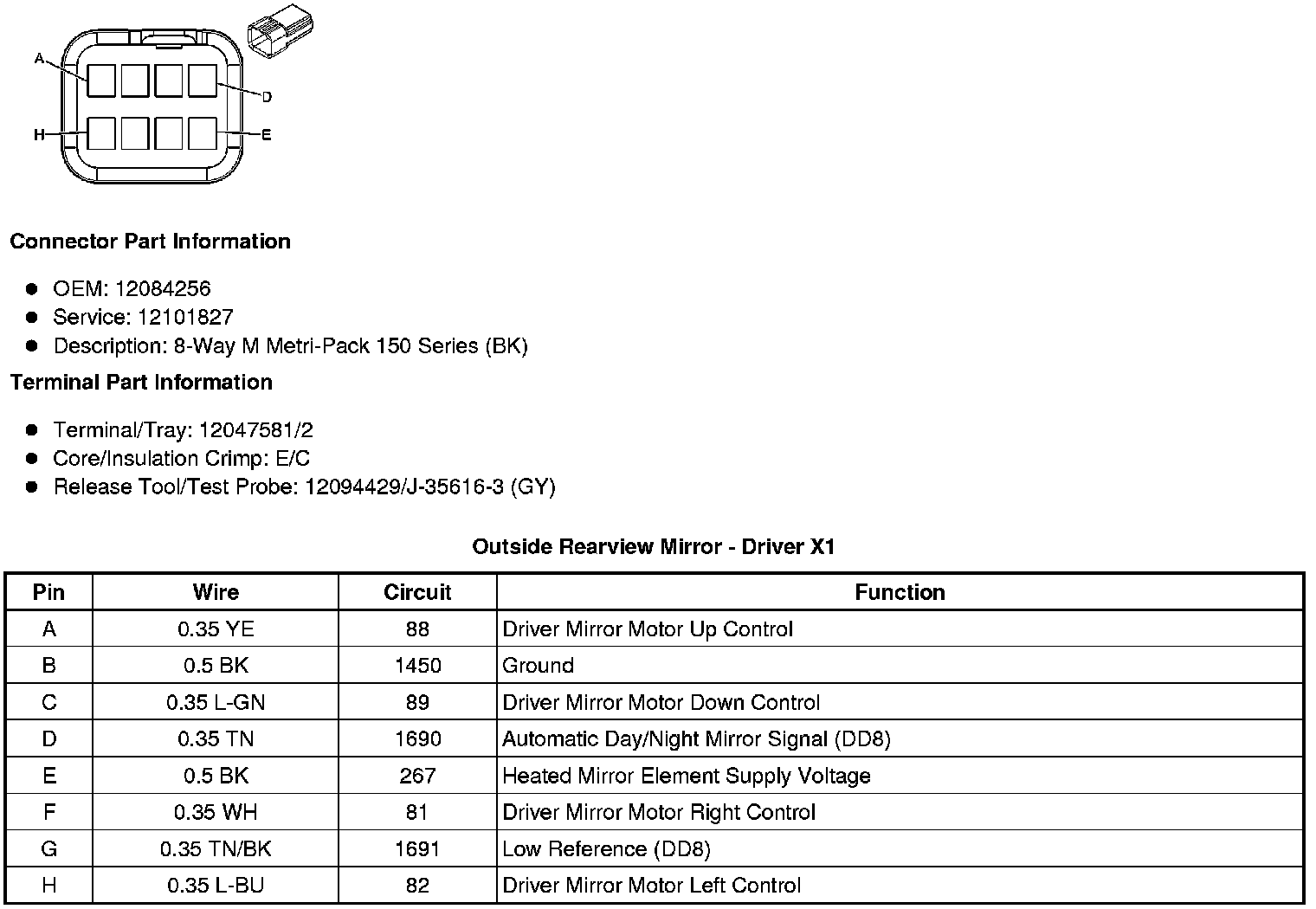

Outside Rearview Mirror - Driver X1






Outside Rearview Mirror - Driver X2 (DD0)

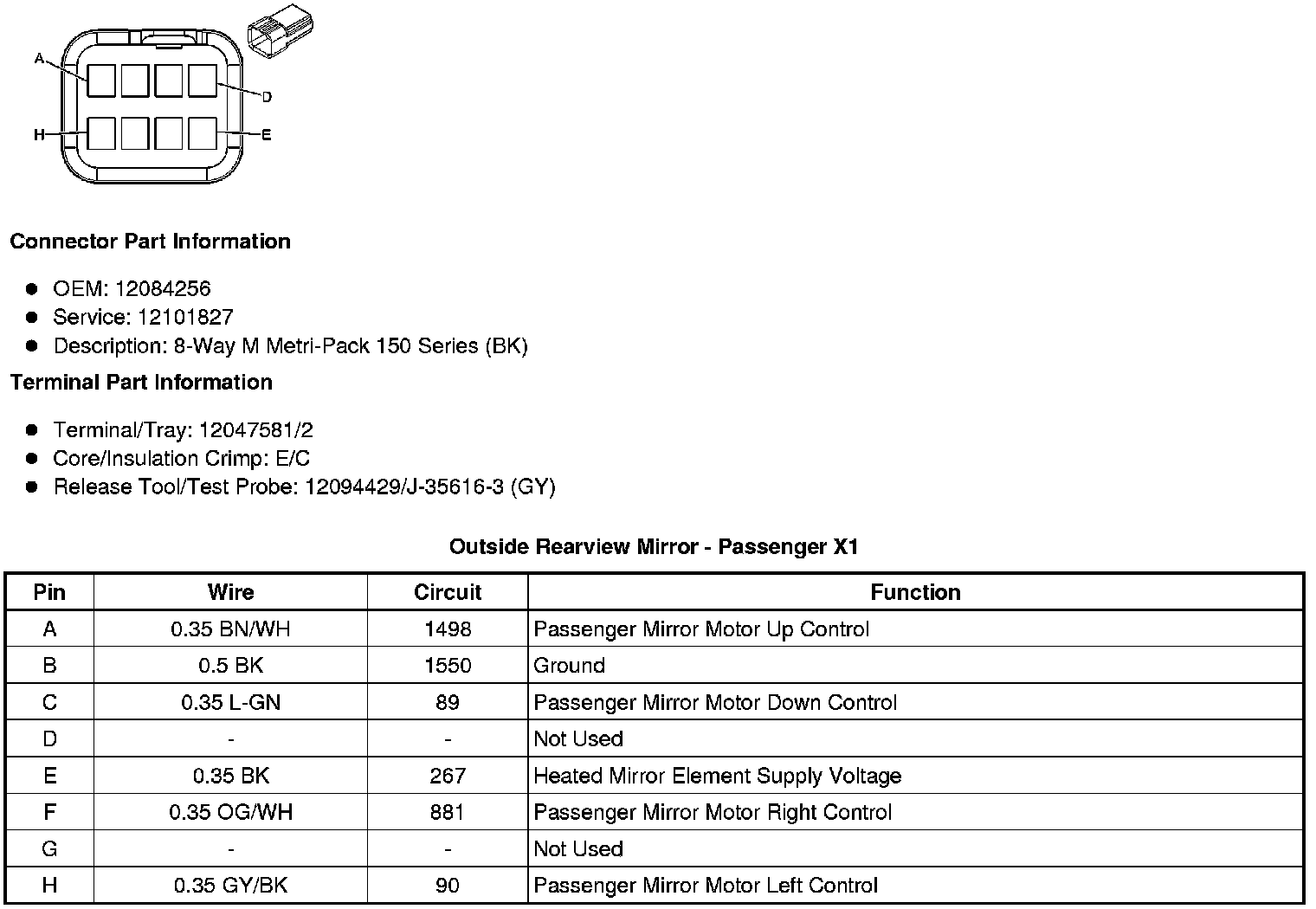

Outside Rearview Mirror - Passenger X1

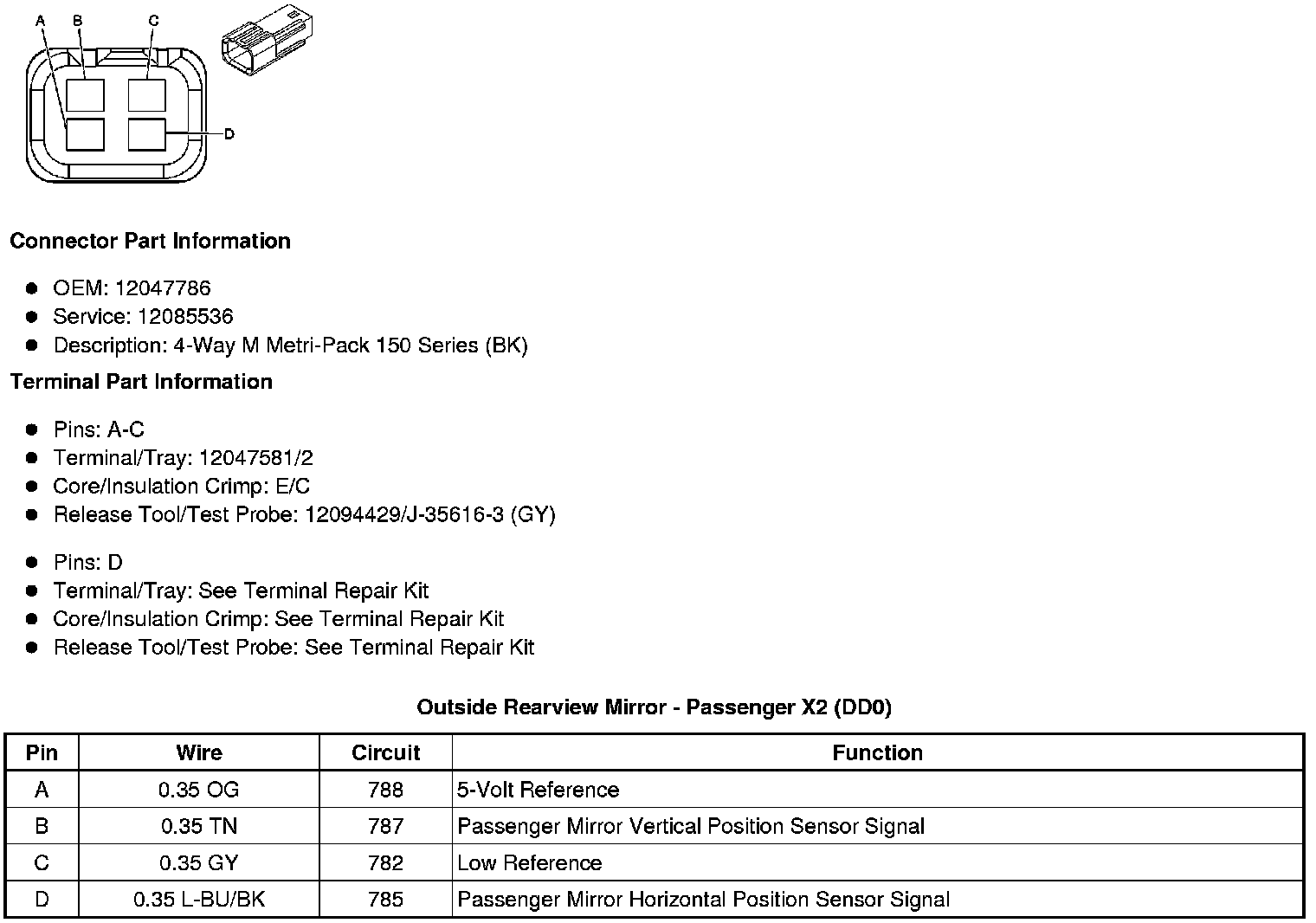

Outside Rearview Mirror - Passenger X2 (DD0)
