Underhood Fuse Block

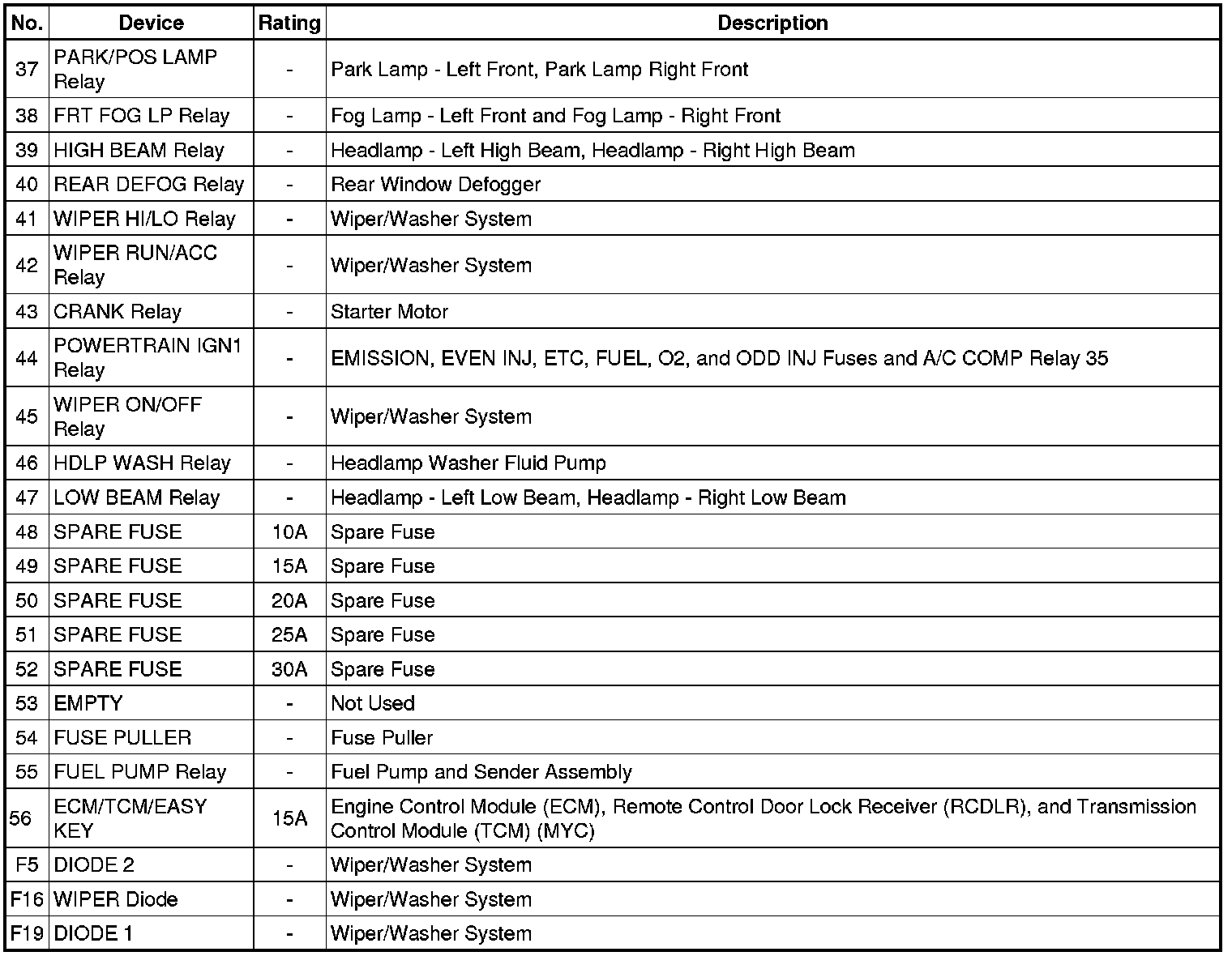

Electrical Center Identification Views

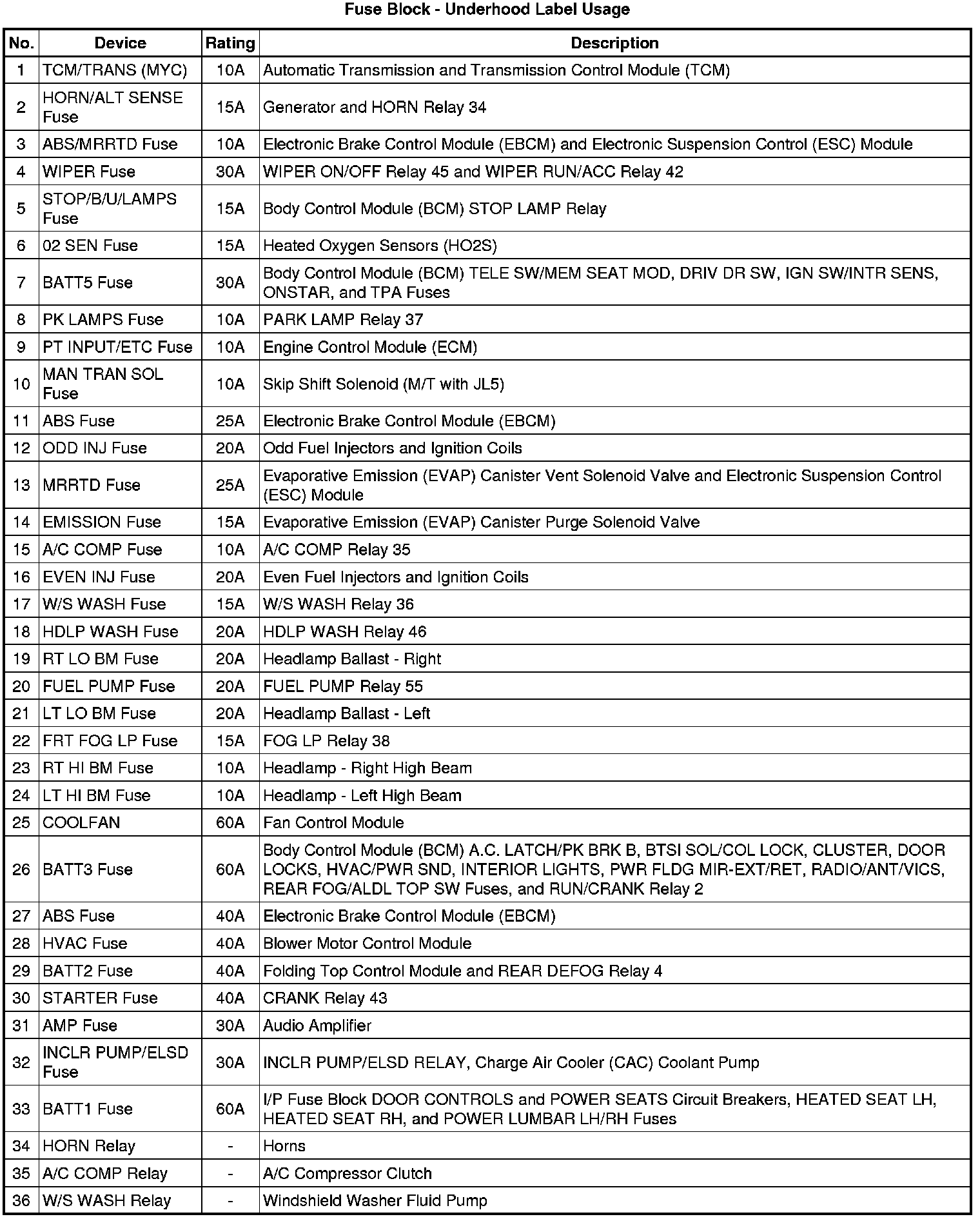

Fuse Block - Underhood Label

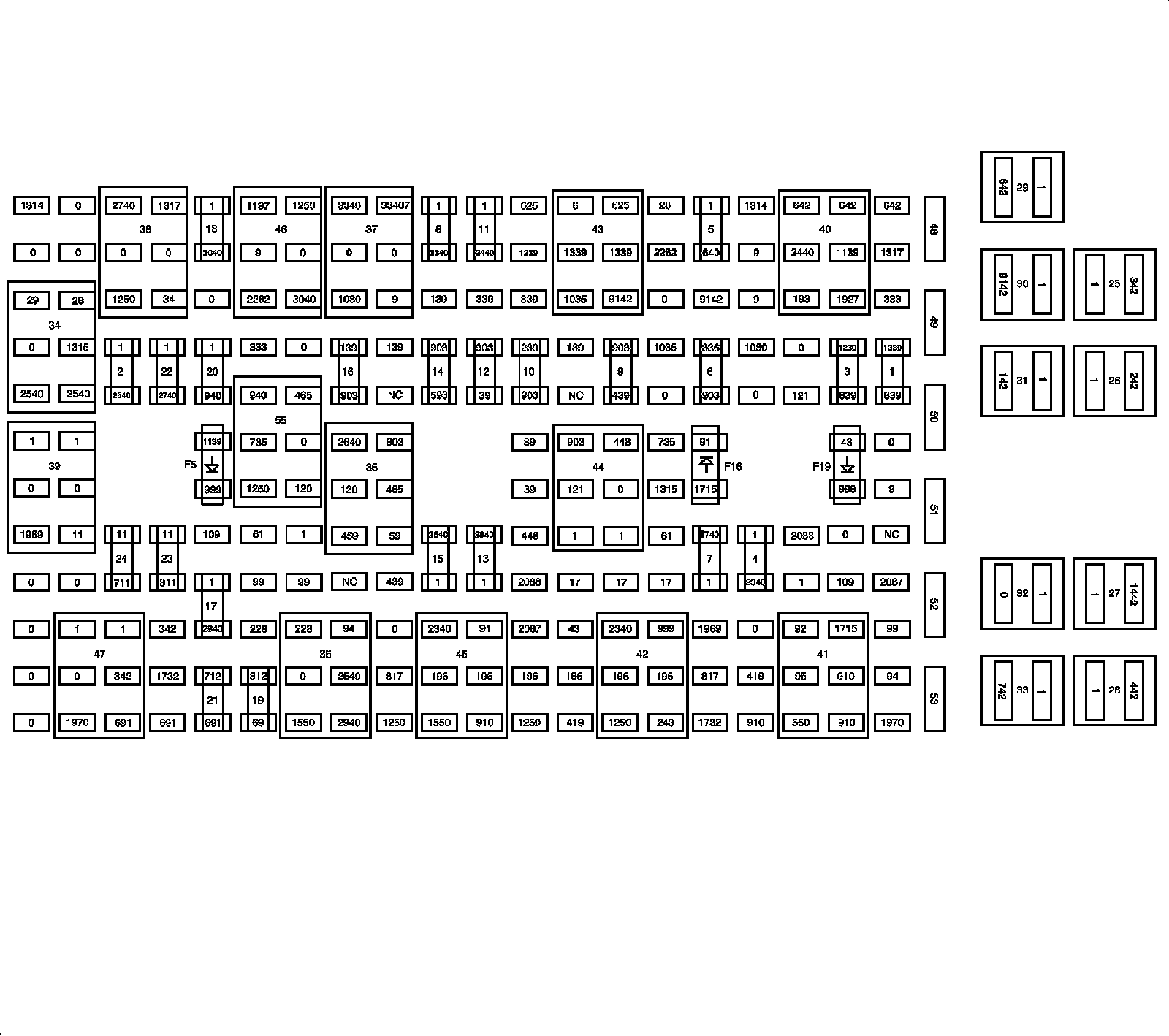

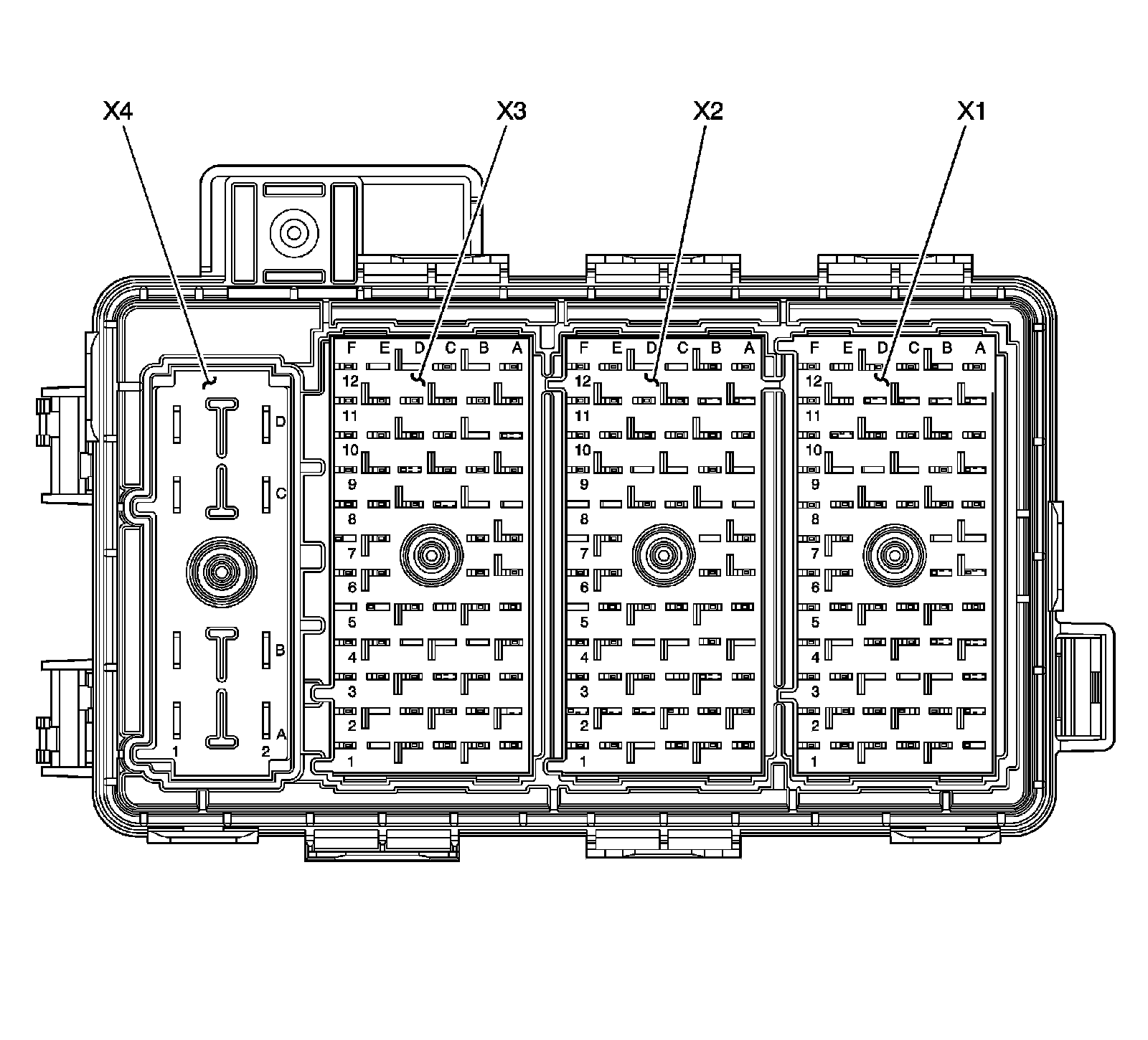

Fuse Block - Underhood Top View





Fuse Block - Underhood Bottom View

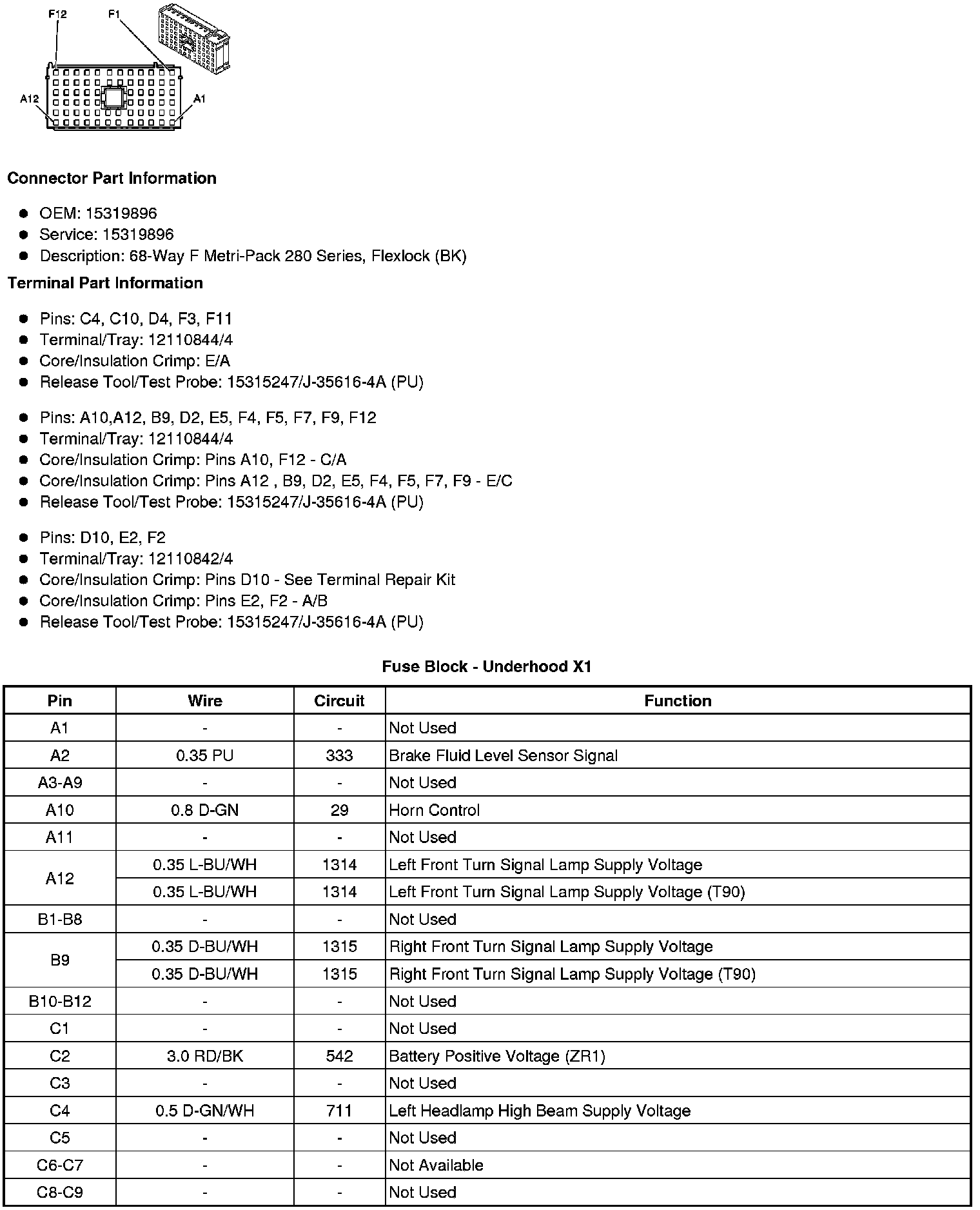

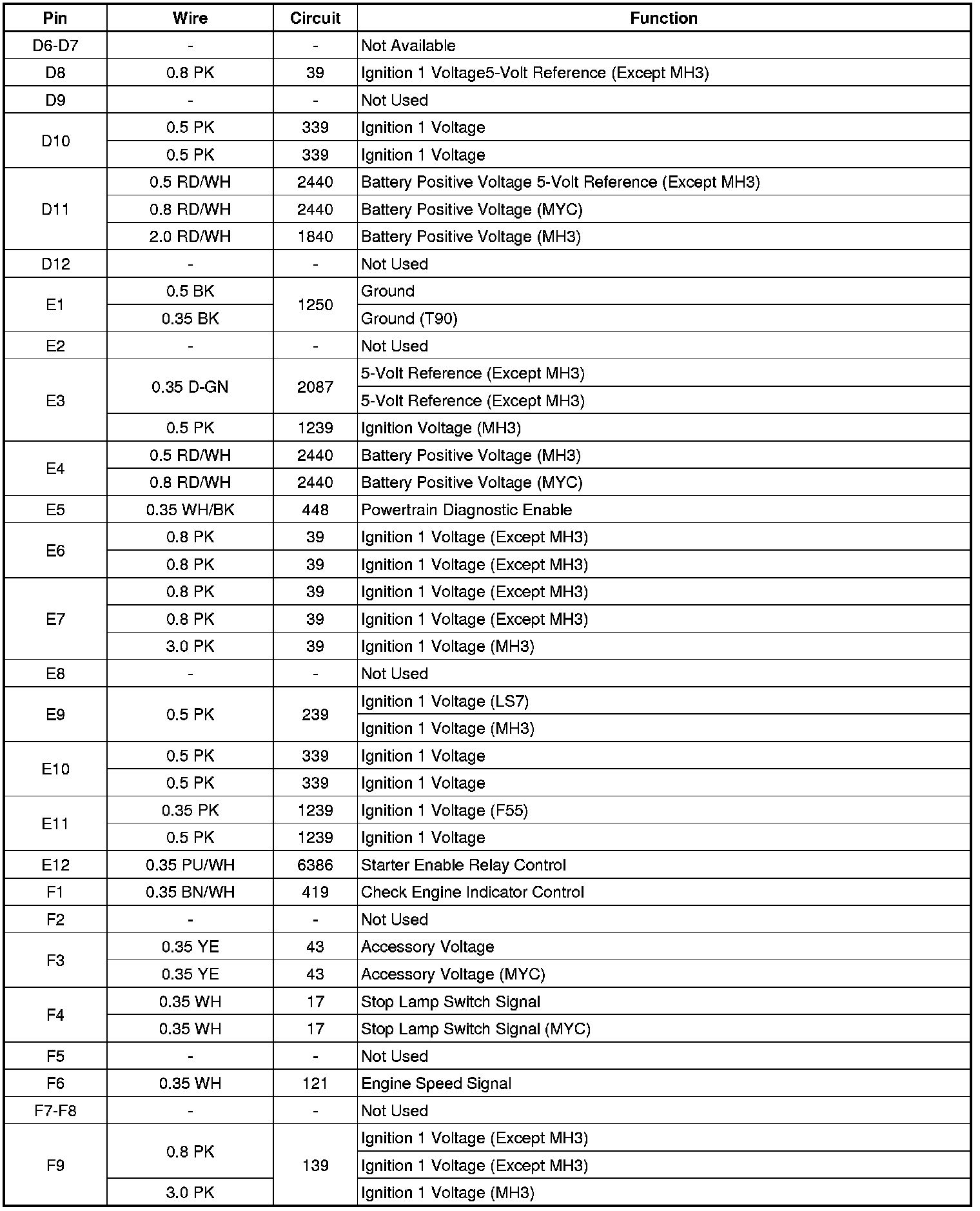

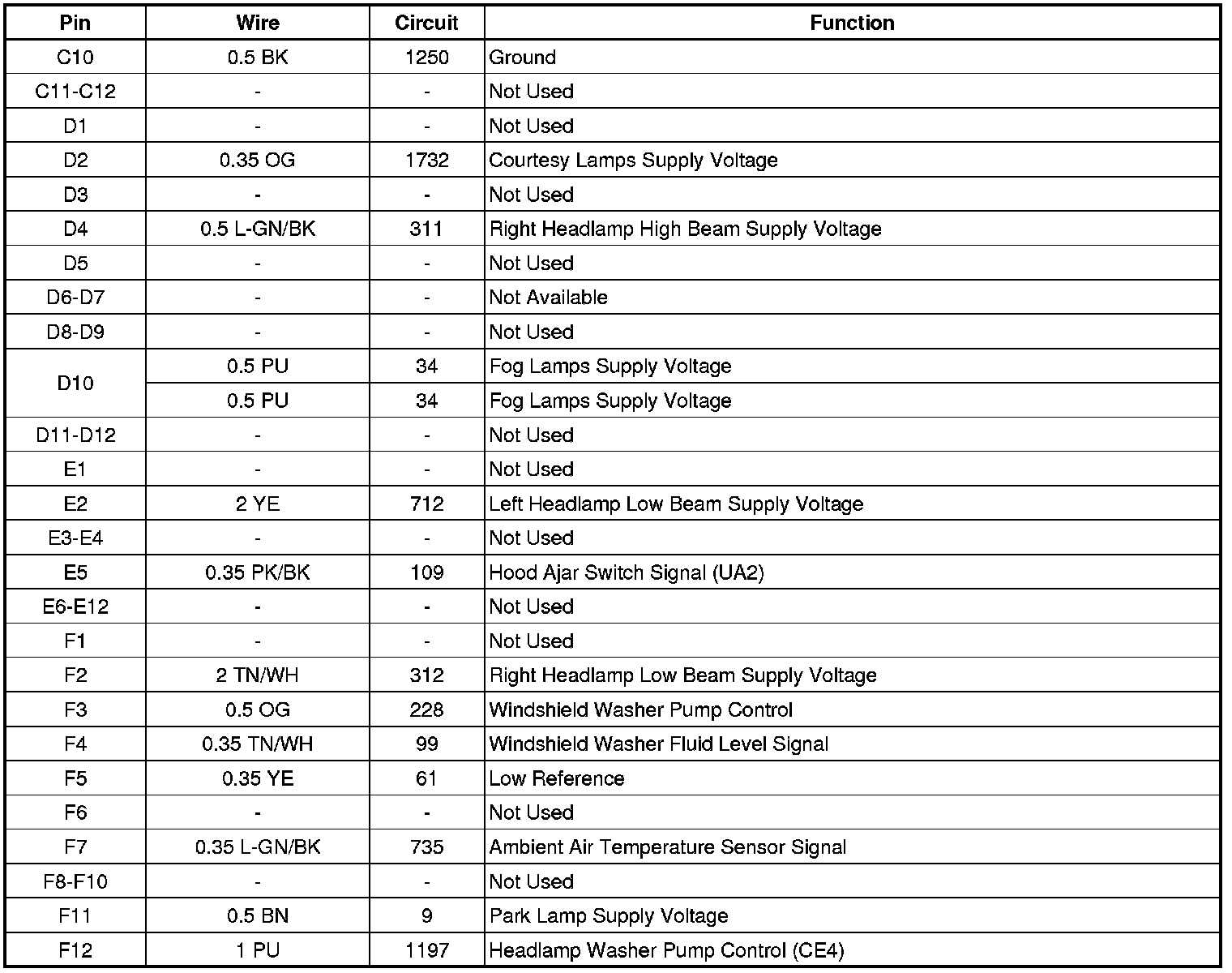

Fuse Block - Underhood X1

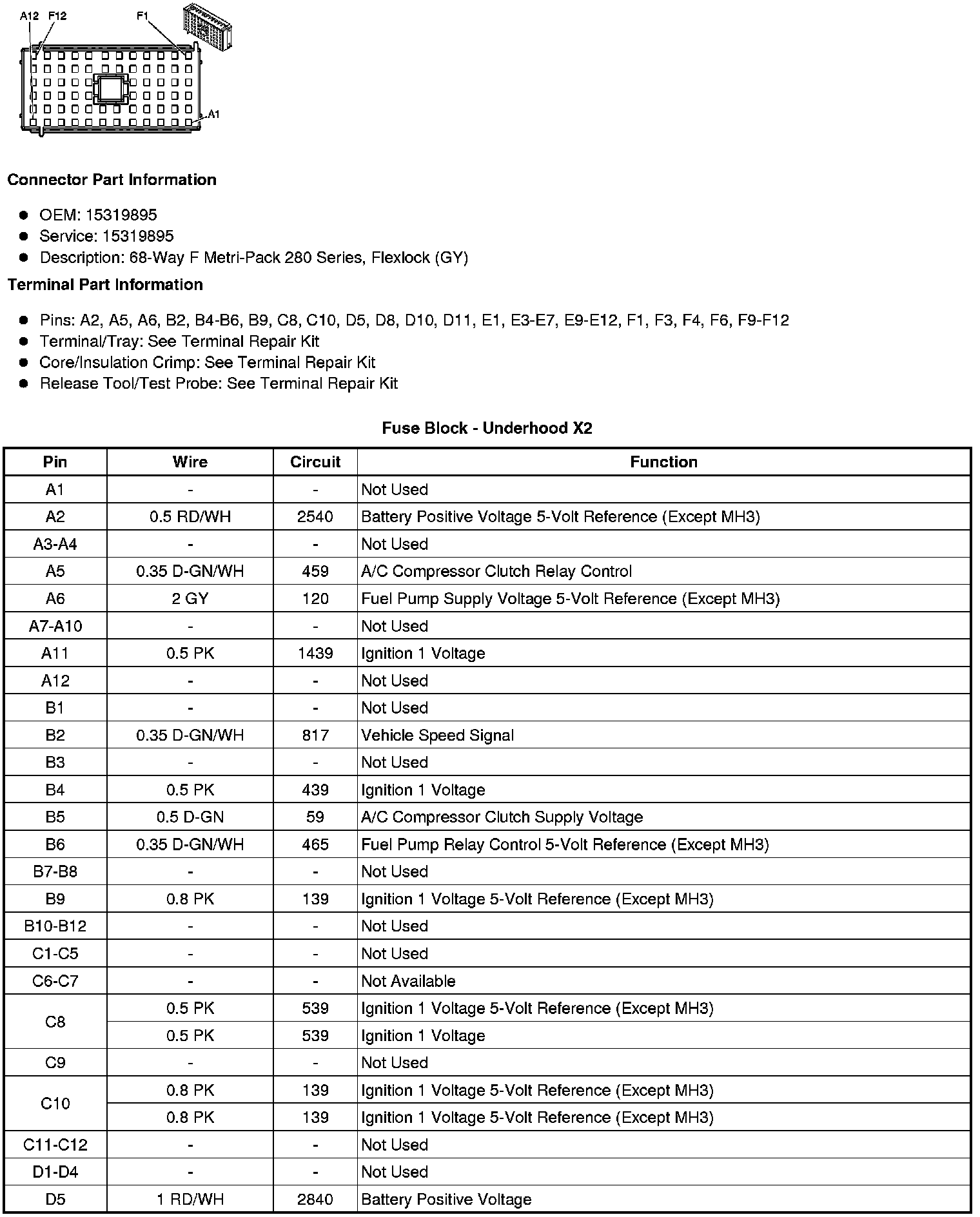

Fuse Block - Underhood X2

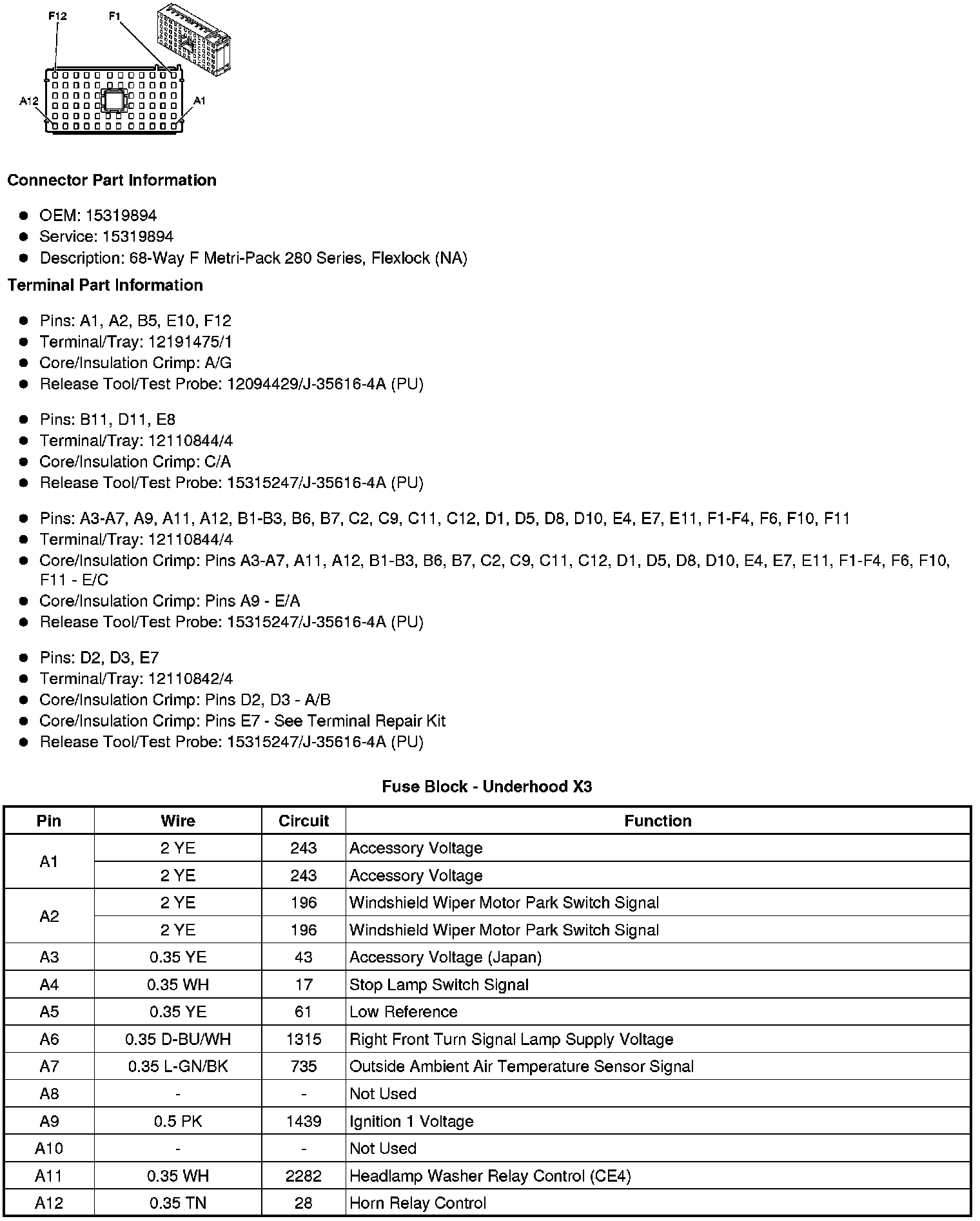

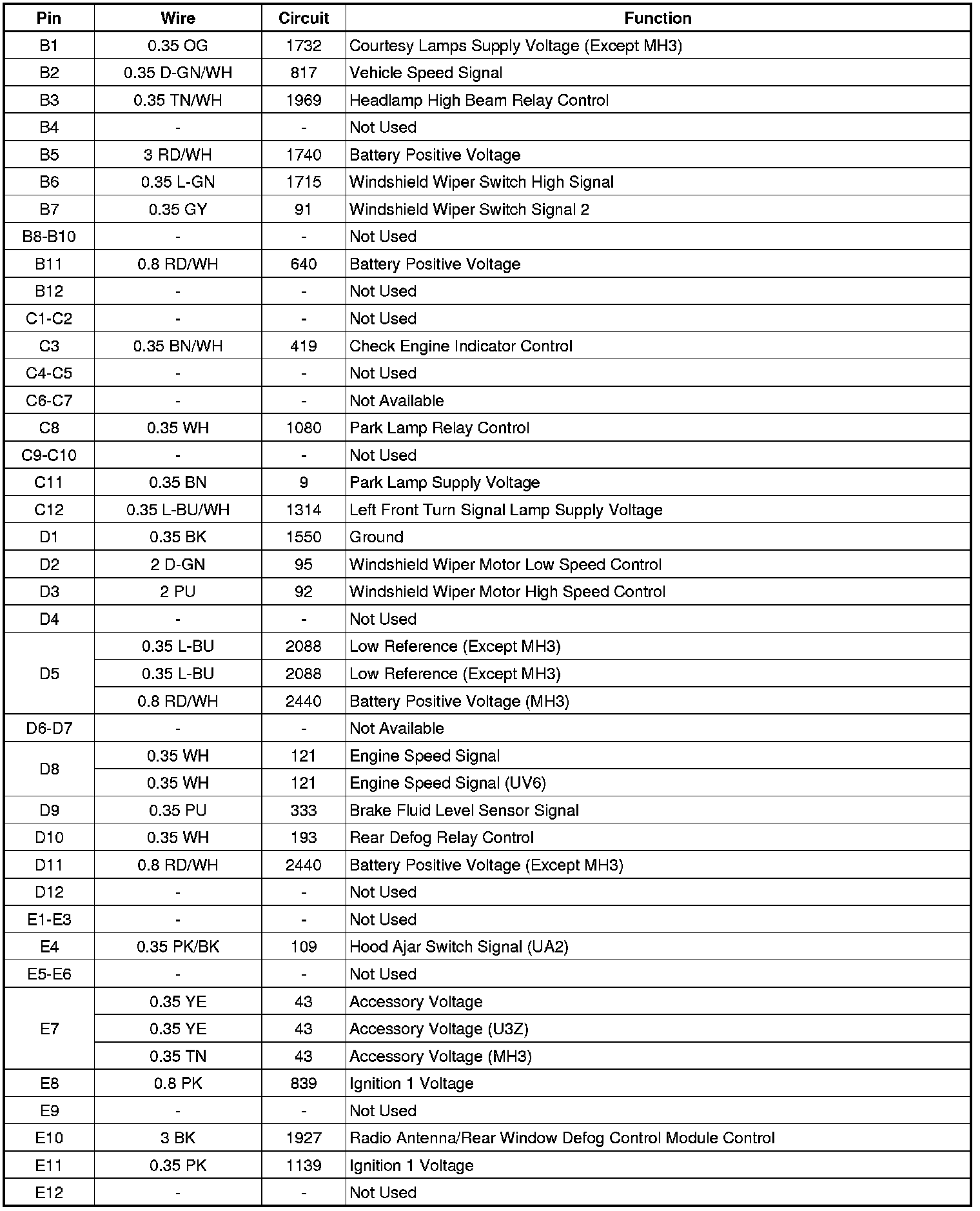

Fuse Block - Underhood X3

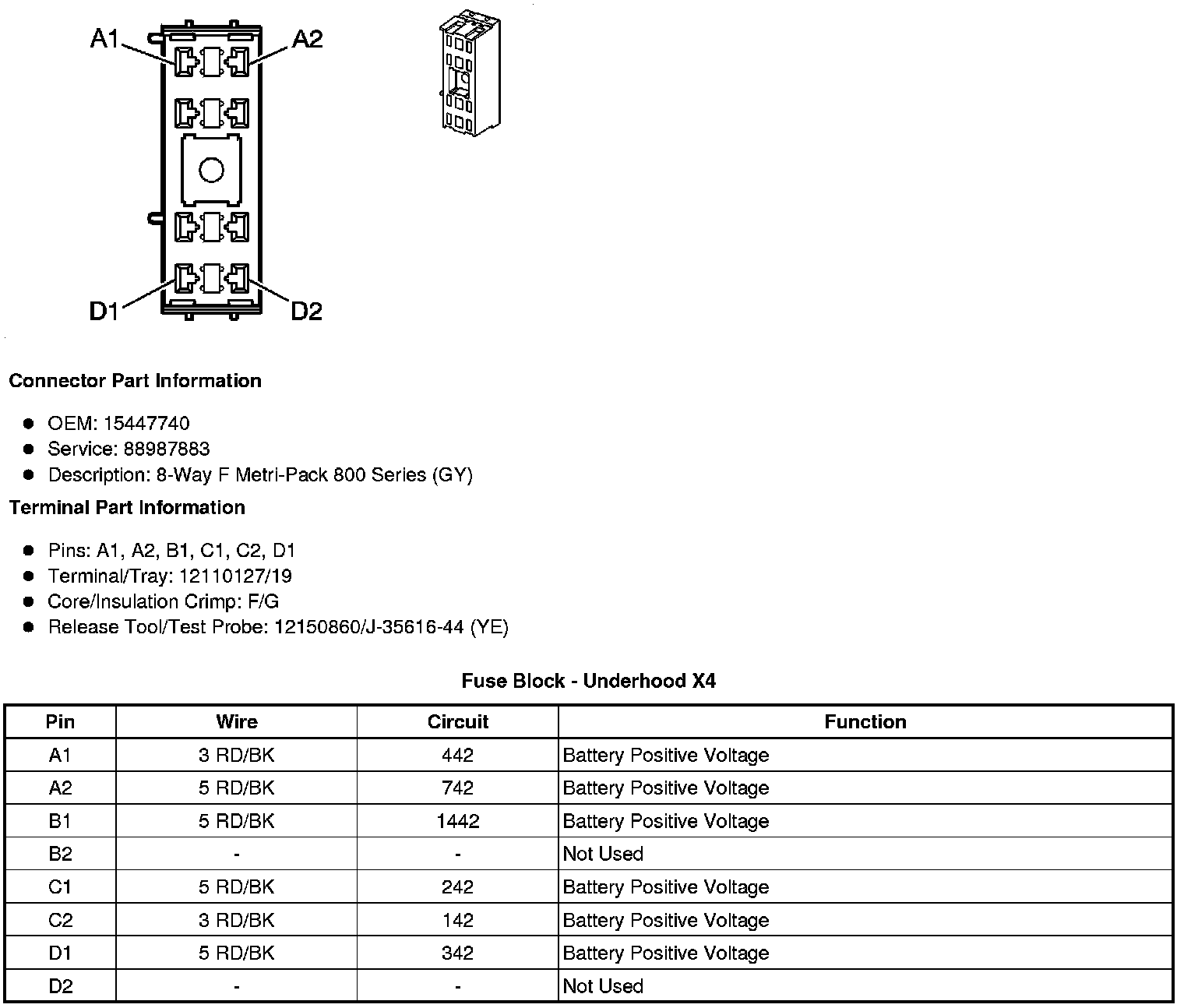

Fuse Block - Underhood X4
