Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 1

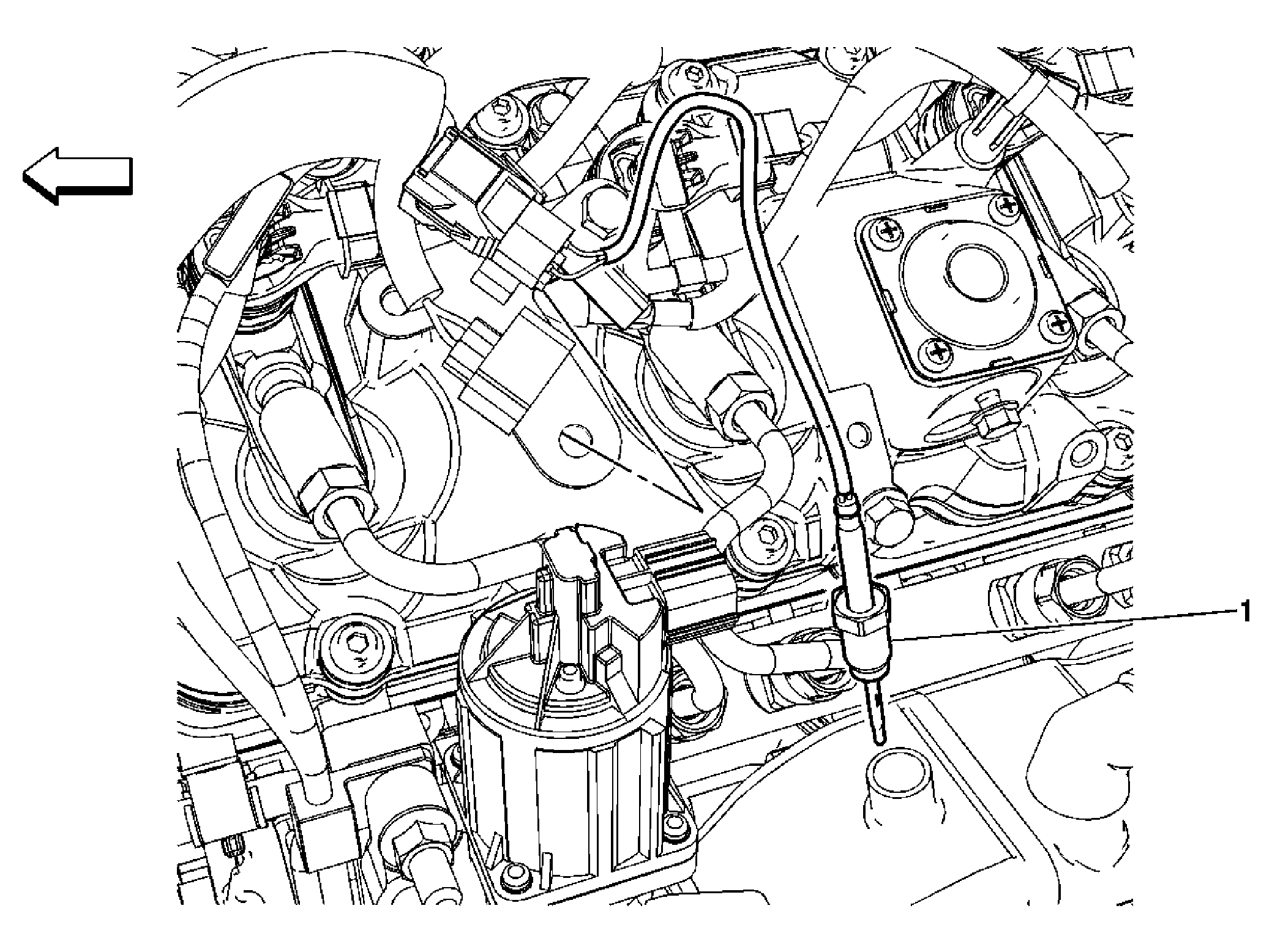

Fig 1: Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 1

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the engine cover. Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .
1	EGR Temperature Sensor Assembly CAUTION: Refer to Fastener Caution . Procedure Disconnect the harness connector. Detach the EGR temperature sensor assembly harness connector from the bracket. Tighten: 44 N.m (32 lb ft)

Callout

Component Name

Preliminary Procedures

EGR Temperature Sensor Assembly

CAUTION: Refer to Fastener Caution .

Procedure

Tighten: 44 N.m (32 lb ft)
