Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 2

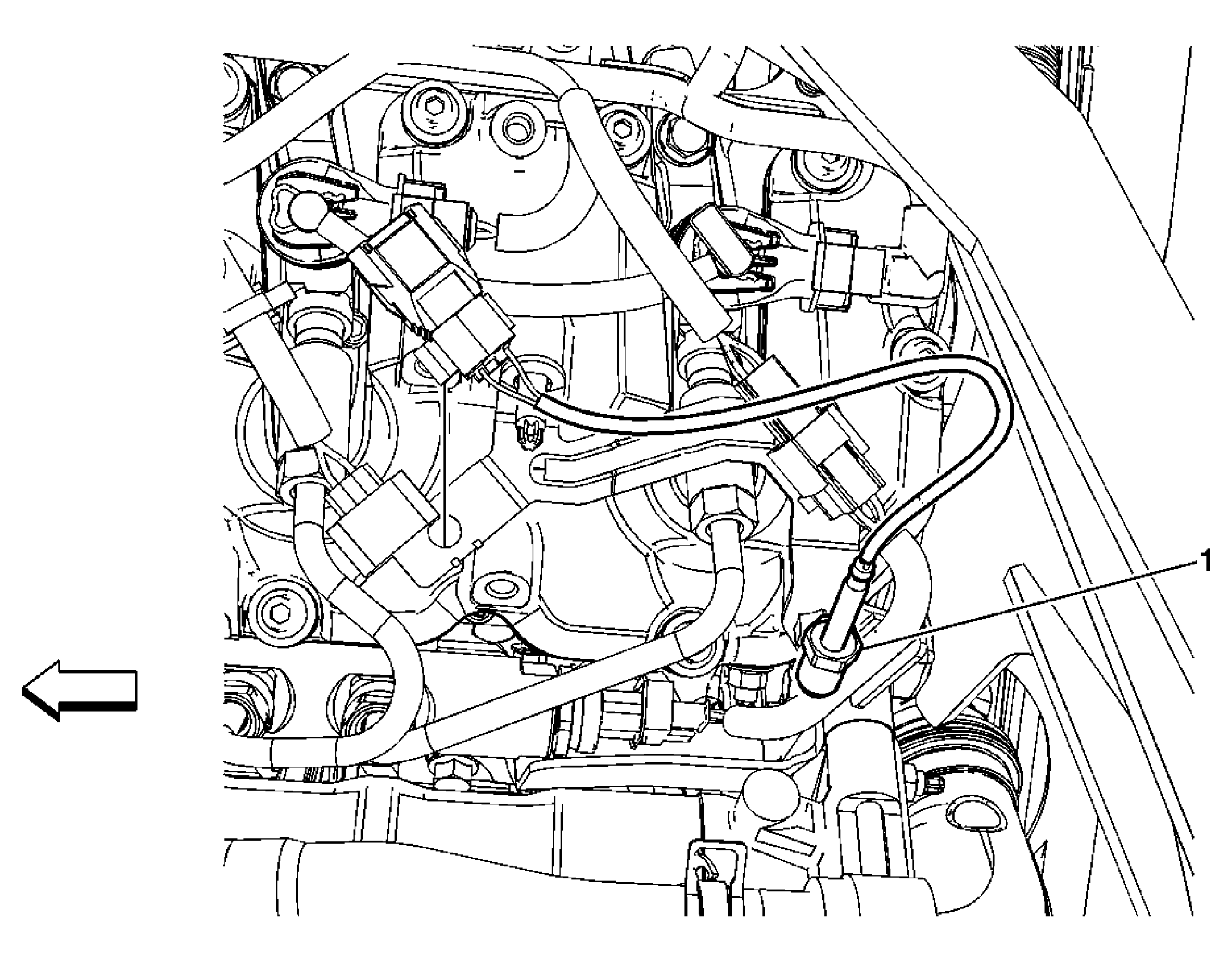

Fig 1: Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 2
GM1998258Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the engine cover.
  2. Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .
1 EGR Temperature Sensor Assembly
CAUTION: Refer to Fastener Caution .

Procedure

  1. Disconnect the harness connector.
  2. Detach the EGR temperature sensor assembly harness connector from the bracket.


Tighten:  44 N.m (32 lb ft)
