Installation Procedure

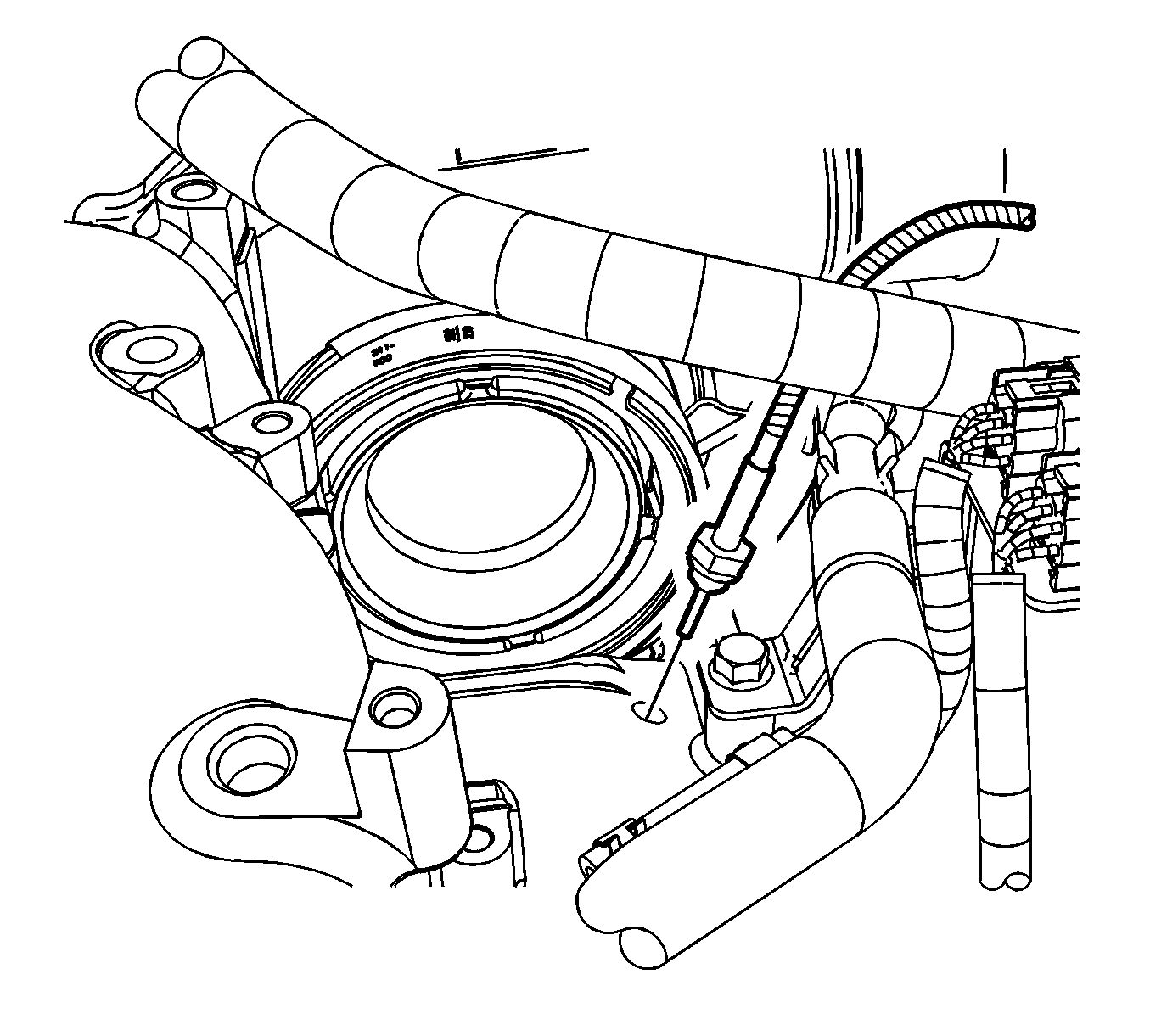

Fig 1: View Of IAT Sensor

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the IAT sensor to the center intake manifold and tighten to 25 N.m (18 lb ft).
Connect the IAT sensor (2) electrical connector.
Install the air intake pipe. Refer to Air Intake Pipe Replacement .
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
