Installation Procedure

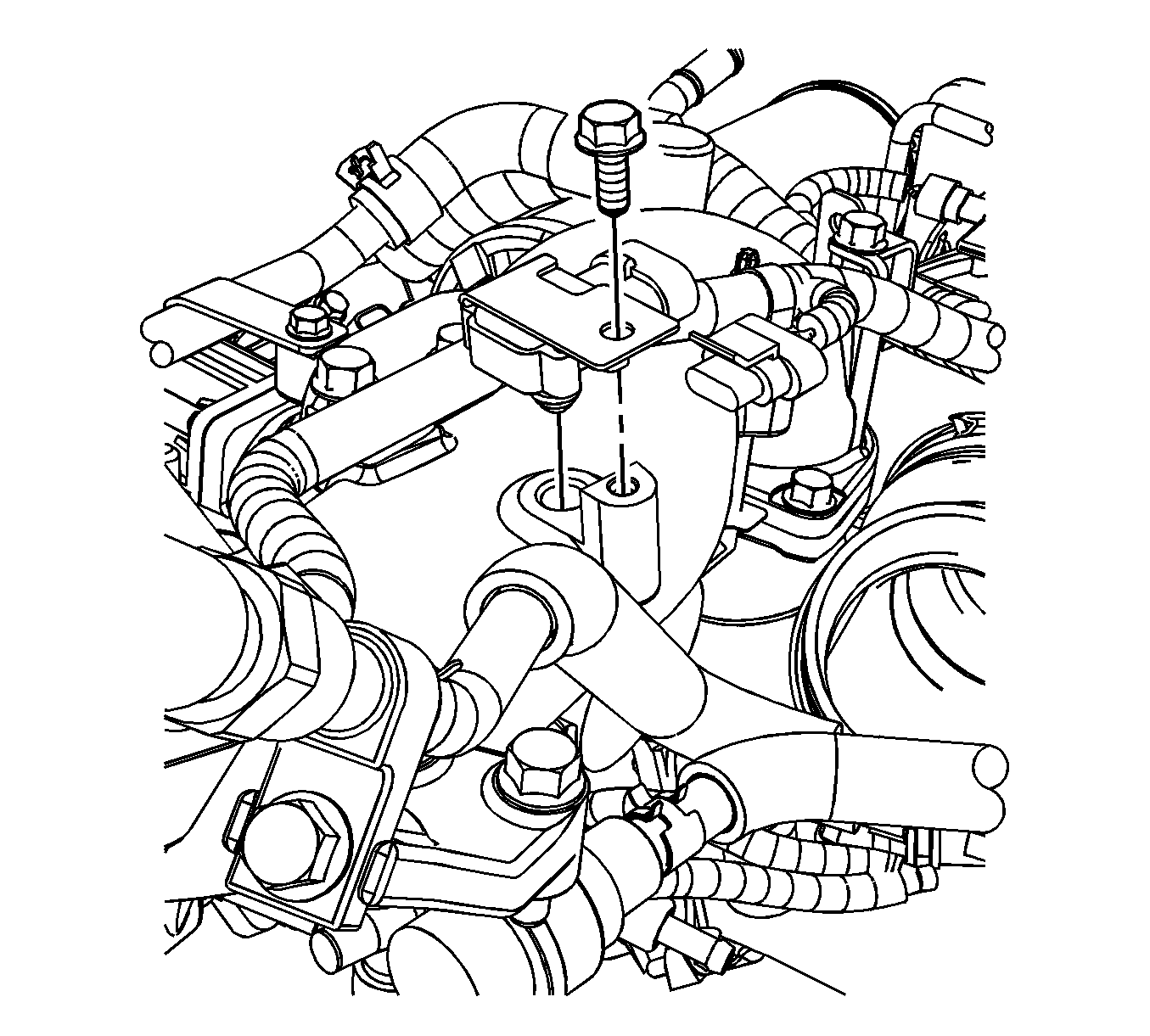

    Fig 1: Identifying MAP Sensor And Bracket
    GM1731224Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor and bracket.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the MAP sensor bolt and tighten to 10 N.m (89 lb in).

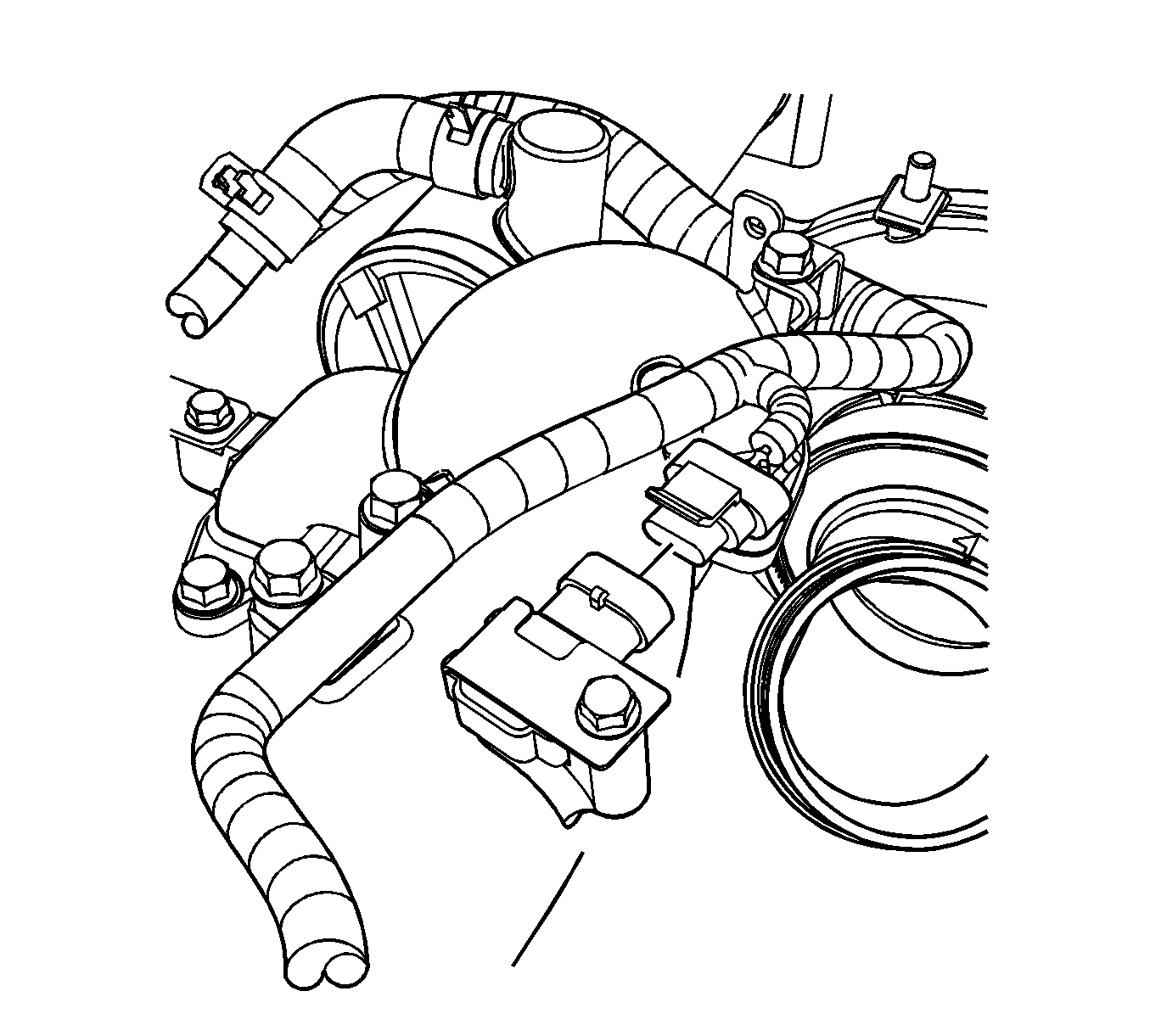

    3. Fig 2: View Of engine harness electrical connector
    GM1731205Courtesy of GENERAL MOTORS CORP.
  3. Connect the MAP sensor electrical connector (2).
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
