Brake Fluid Level Sensor/Switch: Service and Repair

Brake Fluid Level Indicator Switch Replacement

Removal Procedure

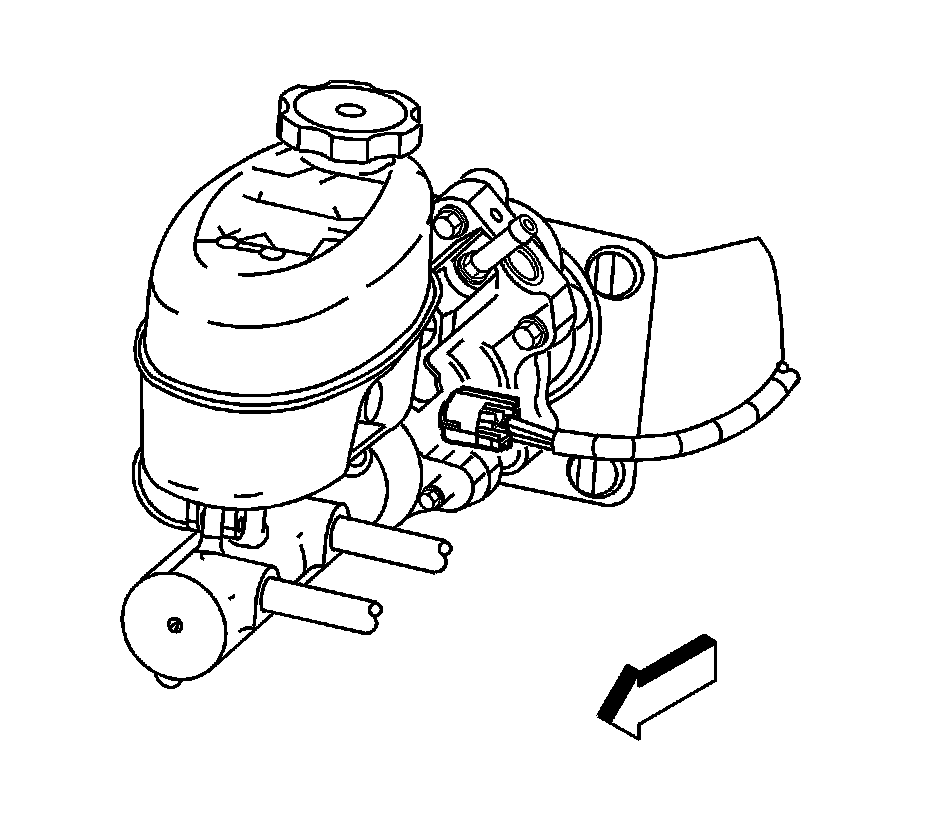

1. Disconnect the brake fluid level indicator switch electrical connector.




2. Using a suitable tool, carefully compress the brake fluid level indicator switch locking tabs.




3. Remove the brake fluid level indicator switch.

Installation Procedure




1. Install the brake fluid level indicator switch.
Ensure the brake fluid level indicator switch locking tabs are fully engaged in the master cylinder reservoir.




2. Connect the brake fluid level indicator switch electrical connector.
