Exhaust Temperature Sensor: Diagrams




Component Connector End Views

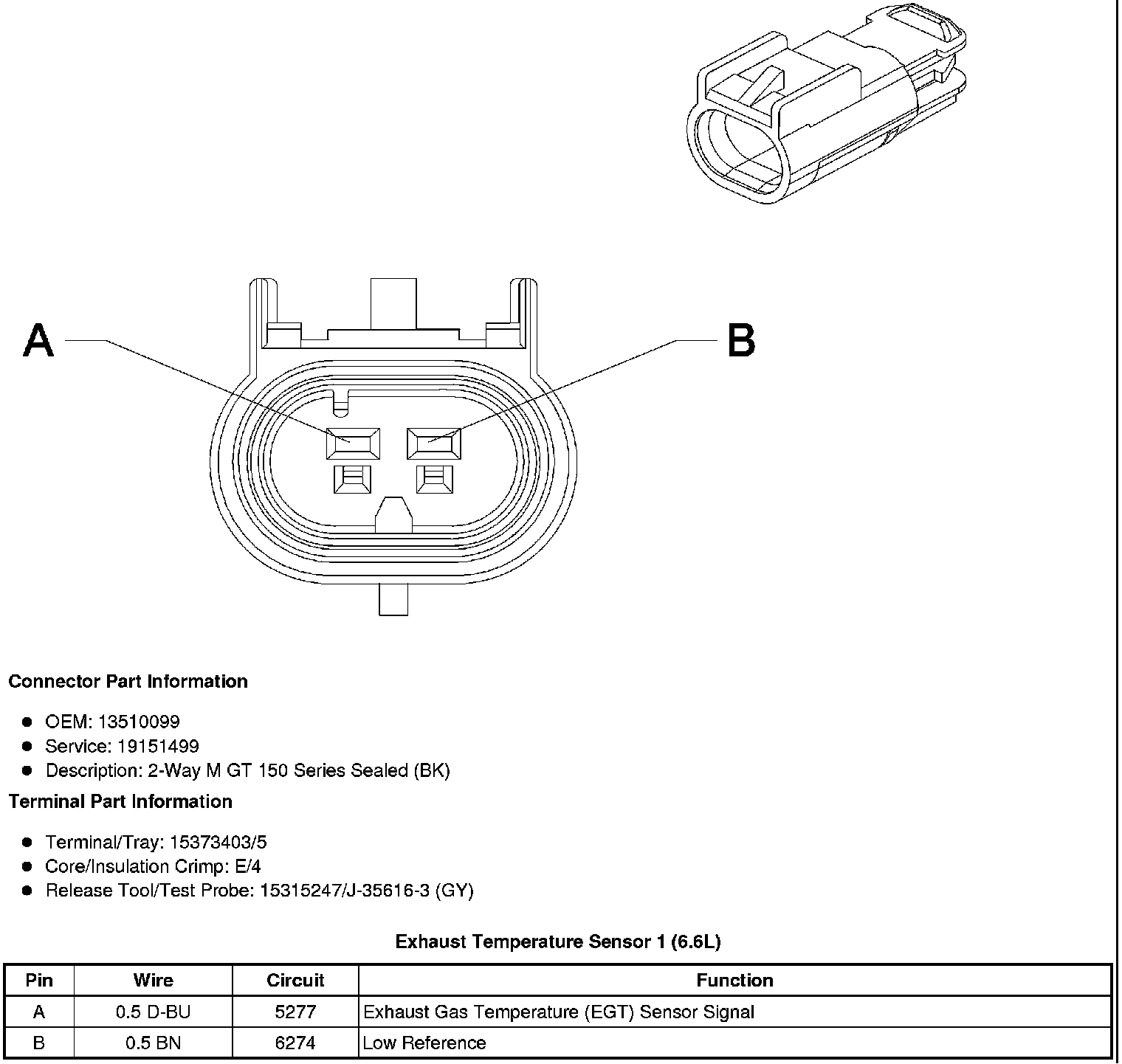

Exhaust Temperature Sensor 1 (6.6L)

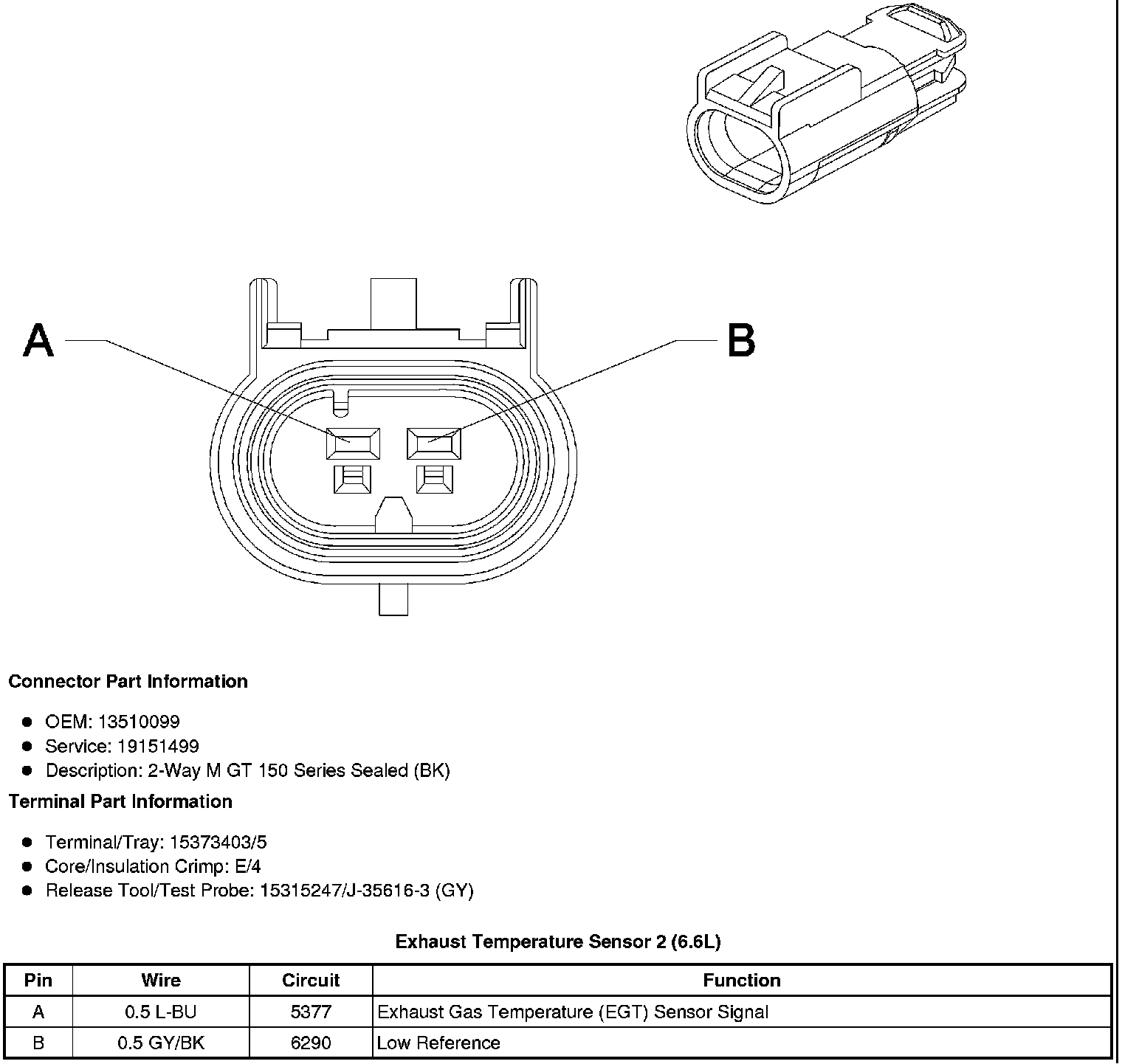

Exhaust Temperature Sensor 2 (6.6L)
