Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor Replacement

Removal Procedure




1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Air Cleaner Outlet Duct Replacement).
2. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

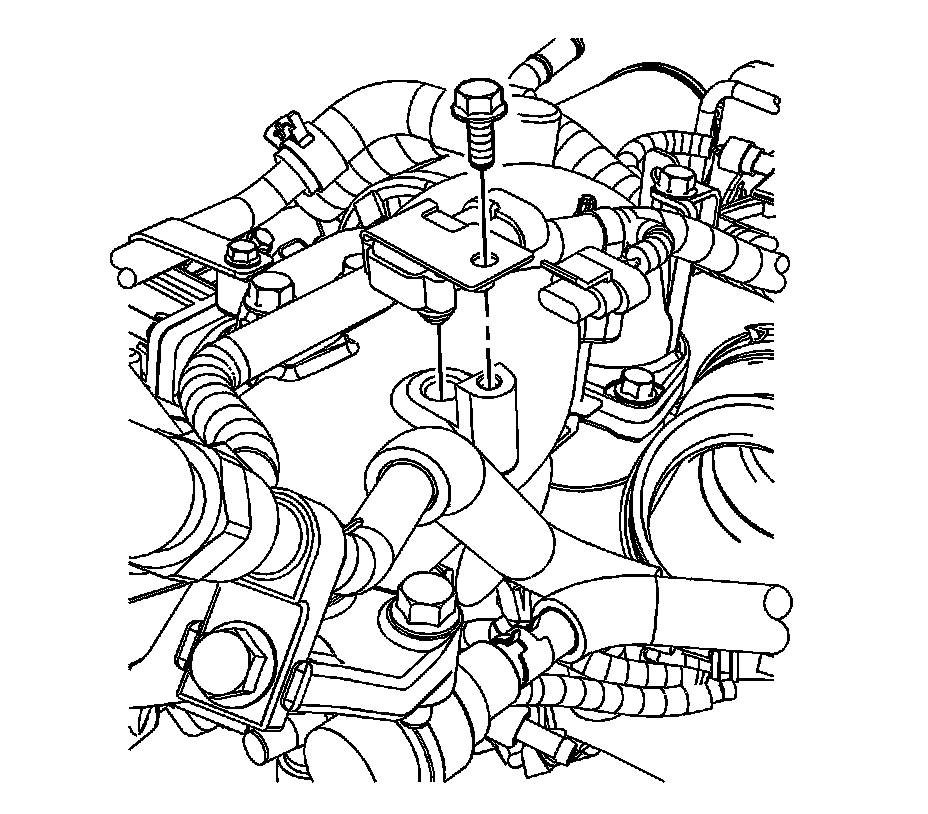

3. Remove the MAP sensor bolt.
4. Remove the MAP sensor bracket and sensor.

Installation Procedure




1. Install the MAP sensor and bracket.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the MAP sensor bolt and tighten to 10 Nm (89 lb in).

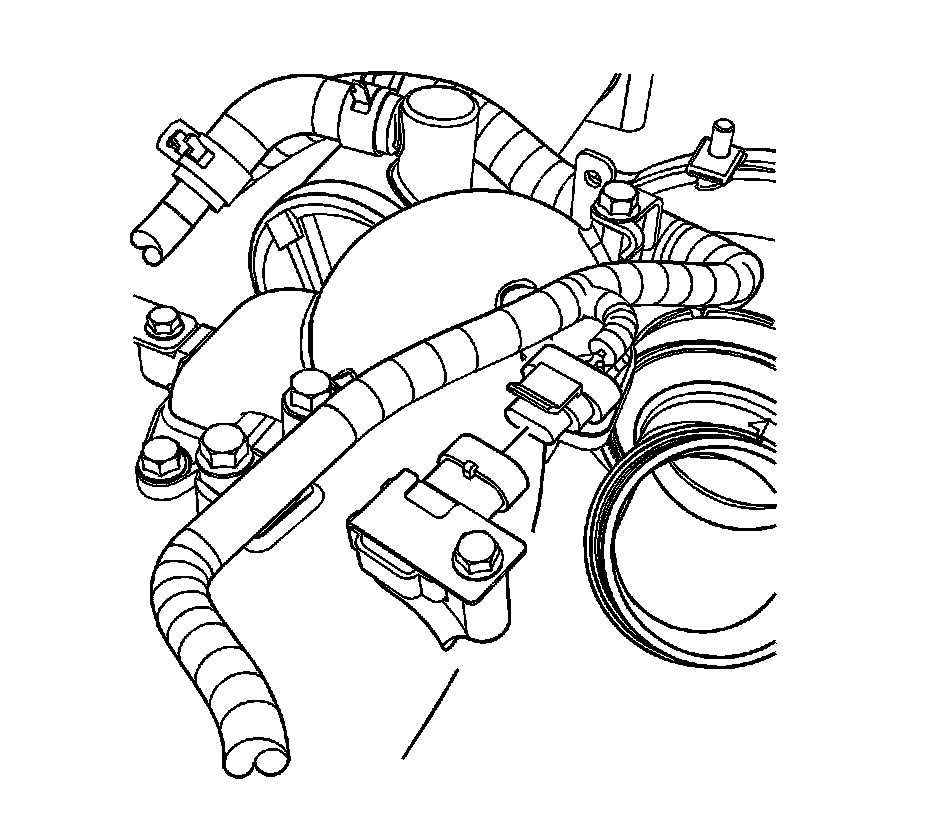

3. Connect the MAP sensor electrical connector (2).
4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Air Cleaner Outlet Duct Replacement).
