Radio/Navigation System Schematics

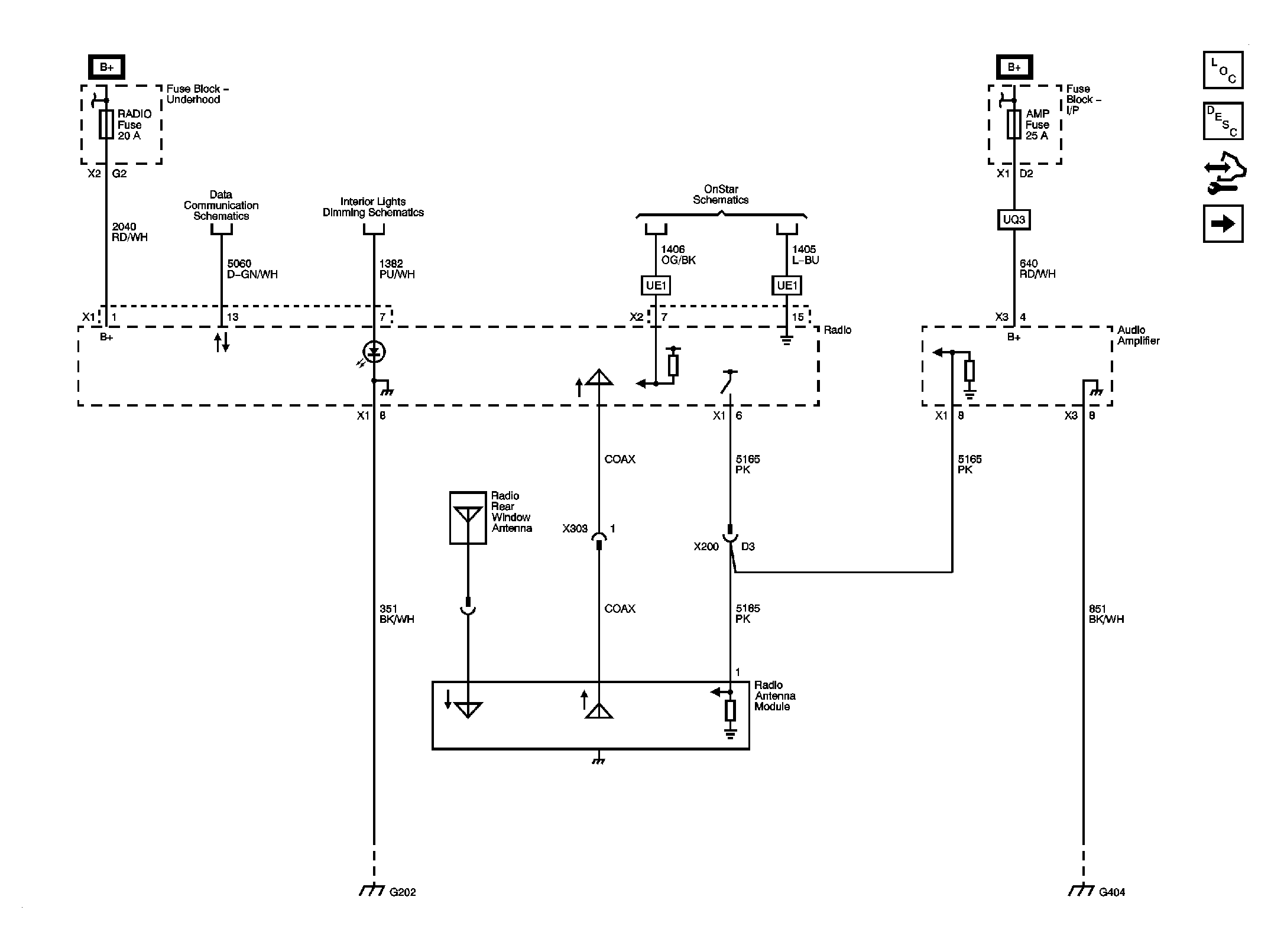

Fig 1: Power, Ground, and References

GM2080670

Courtesy of GENERAL MOTORS CORP.

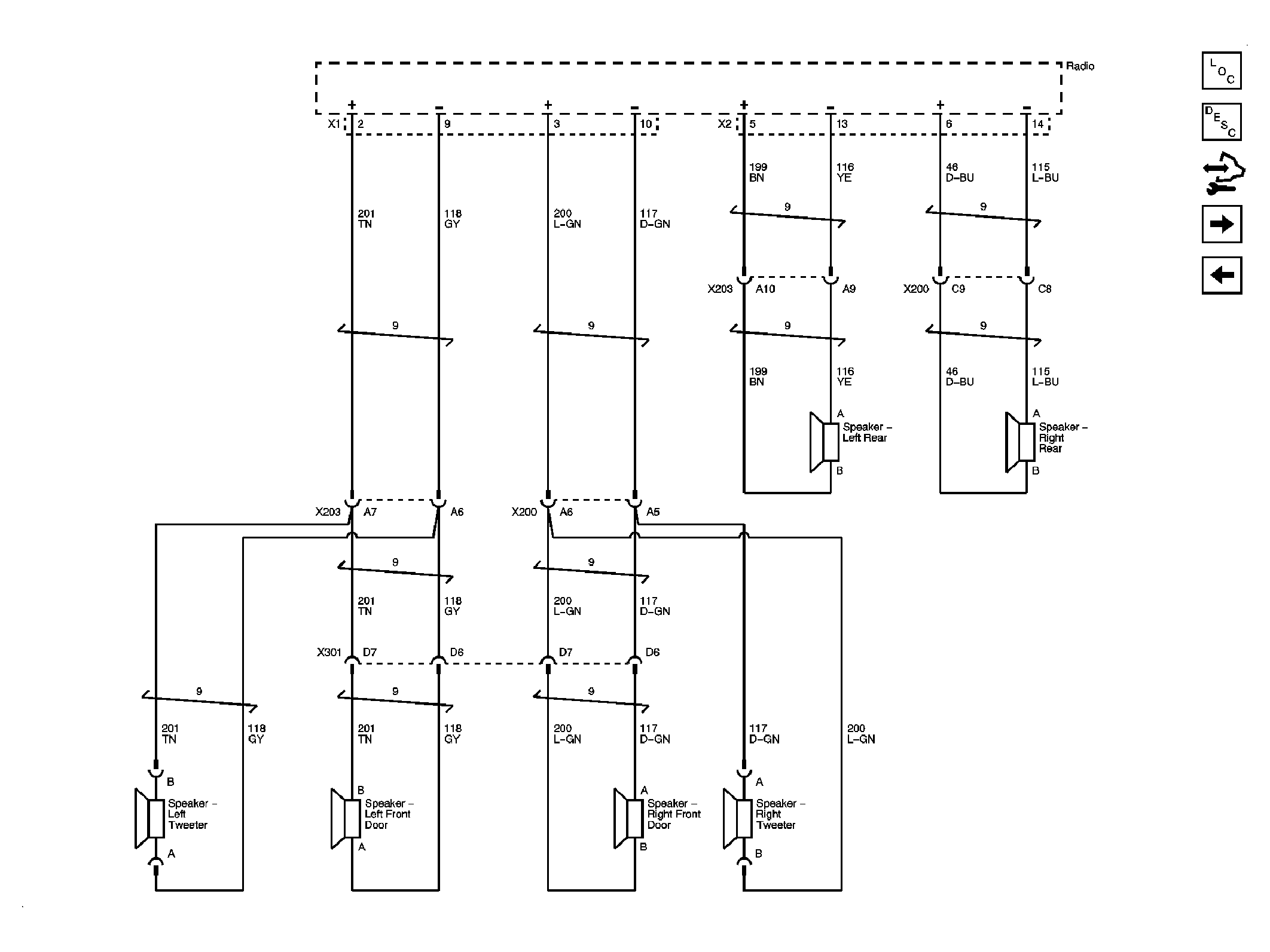

Fig 2: Radio to Speakers - UW6

GM2080673

Courtesy of GENERAL MOTORS CORP.

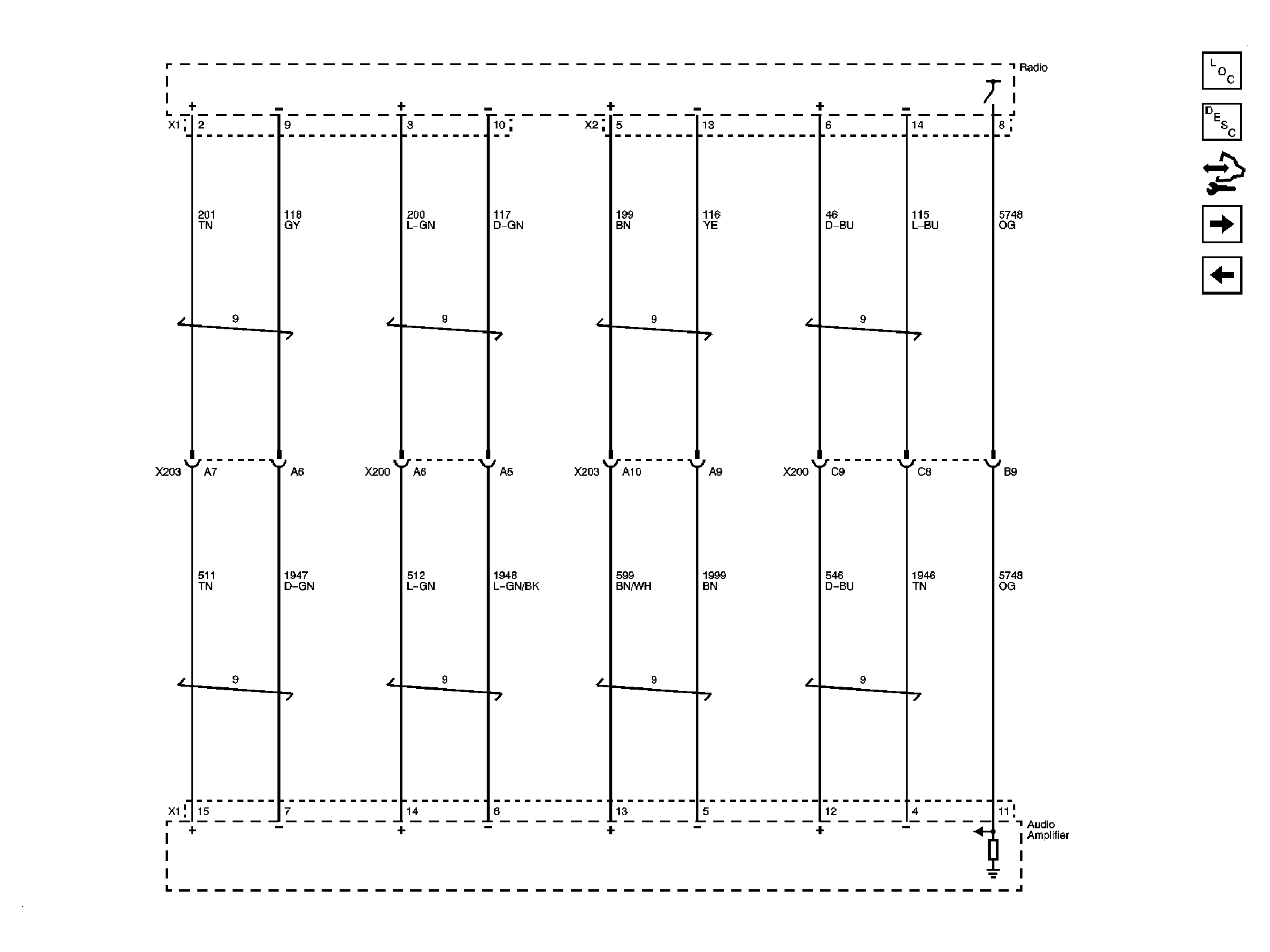

Fig 3: Audio Signal Communications - UQ3

GM2080682

Courtesy of GENERAL MOTORS CORP.

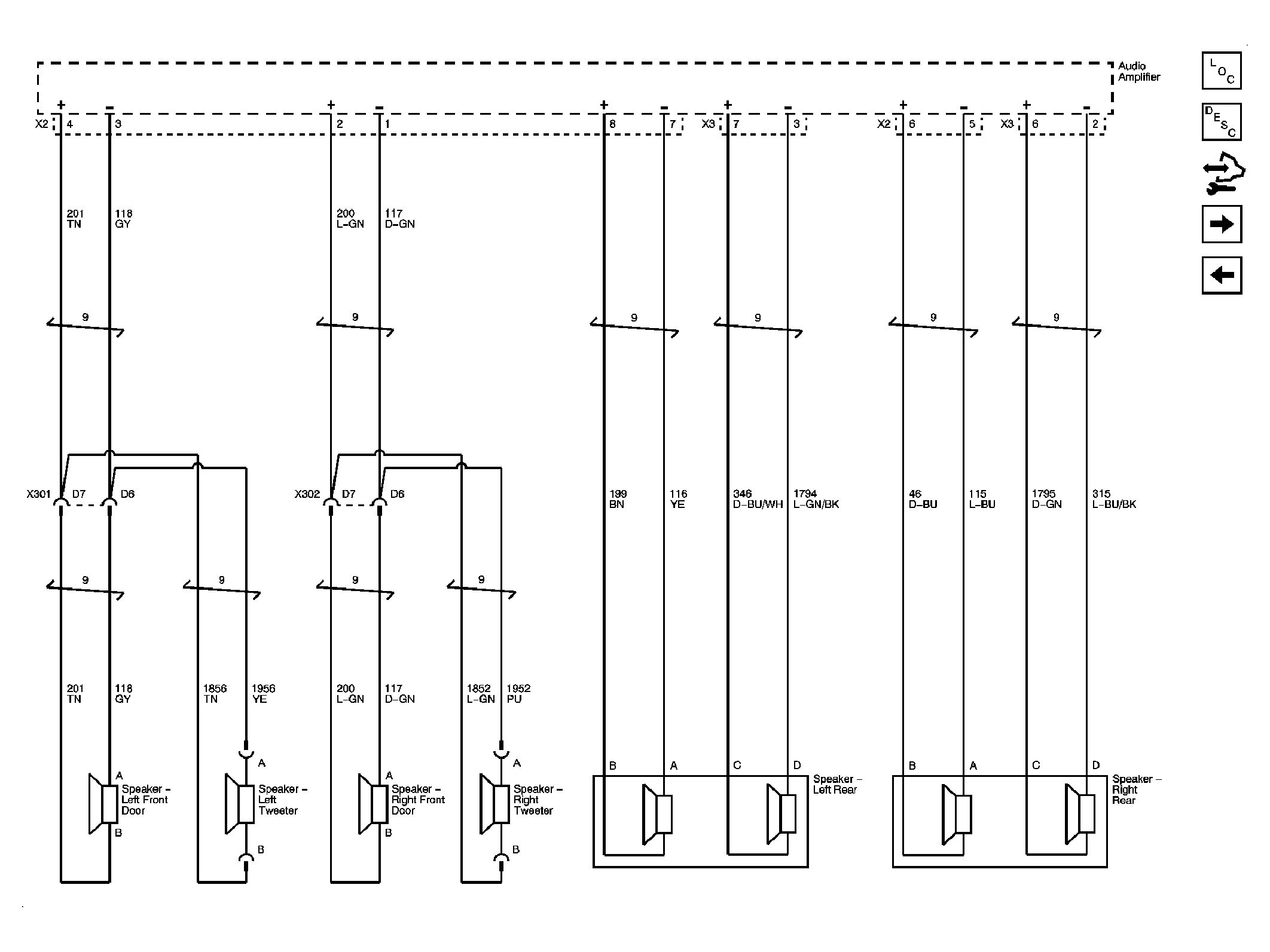

Fig 4: Audio Amplifier to Speakers - UQ3

GM2080685

Courtesy of GENERAL MOTORS CORP.

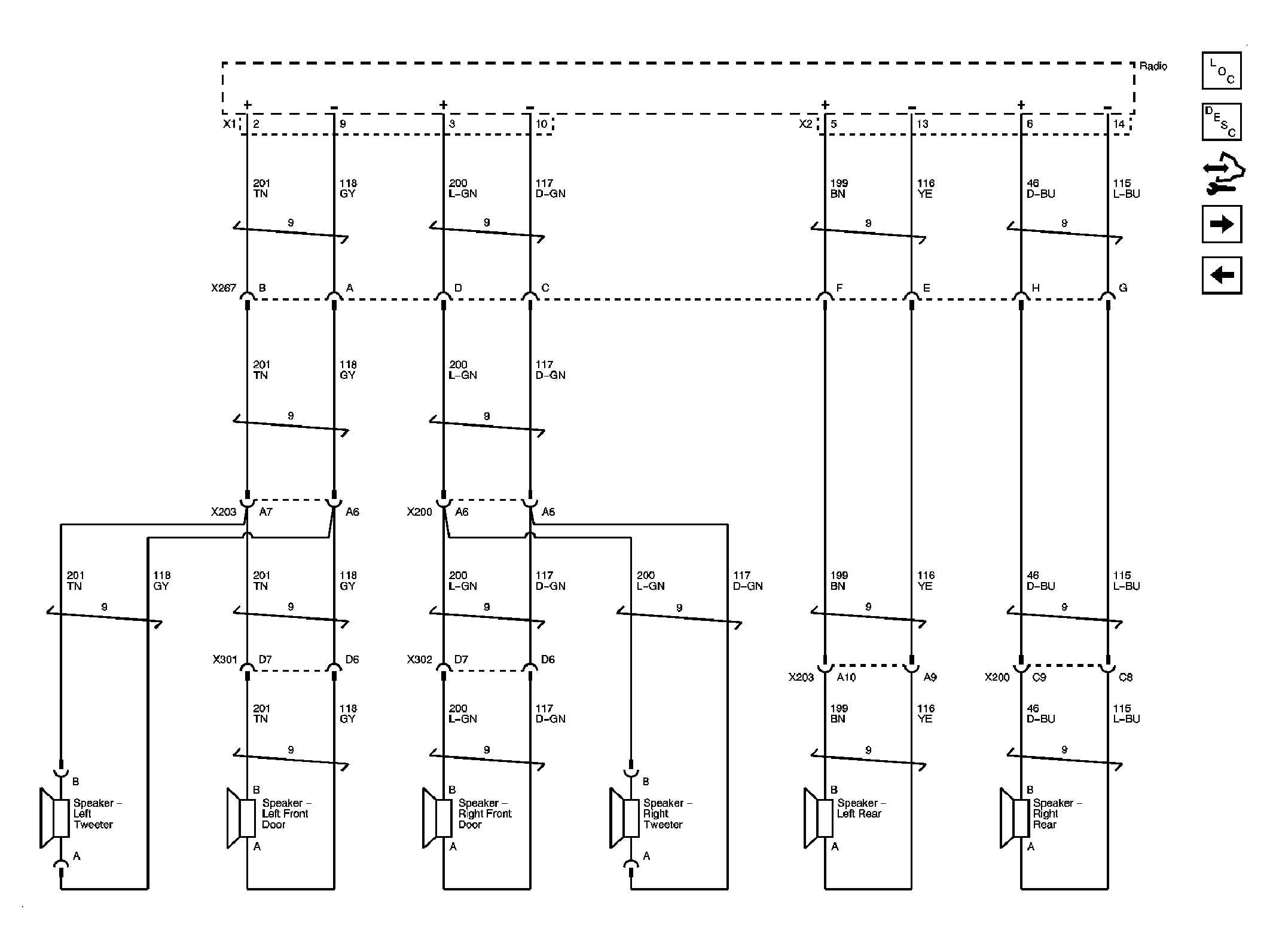

Fig 5: Radio to Speakers - 9C1/9C3 w/o WX7

GM2080687

Courtesy of GENERAL MOTORS CORP.

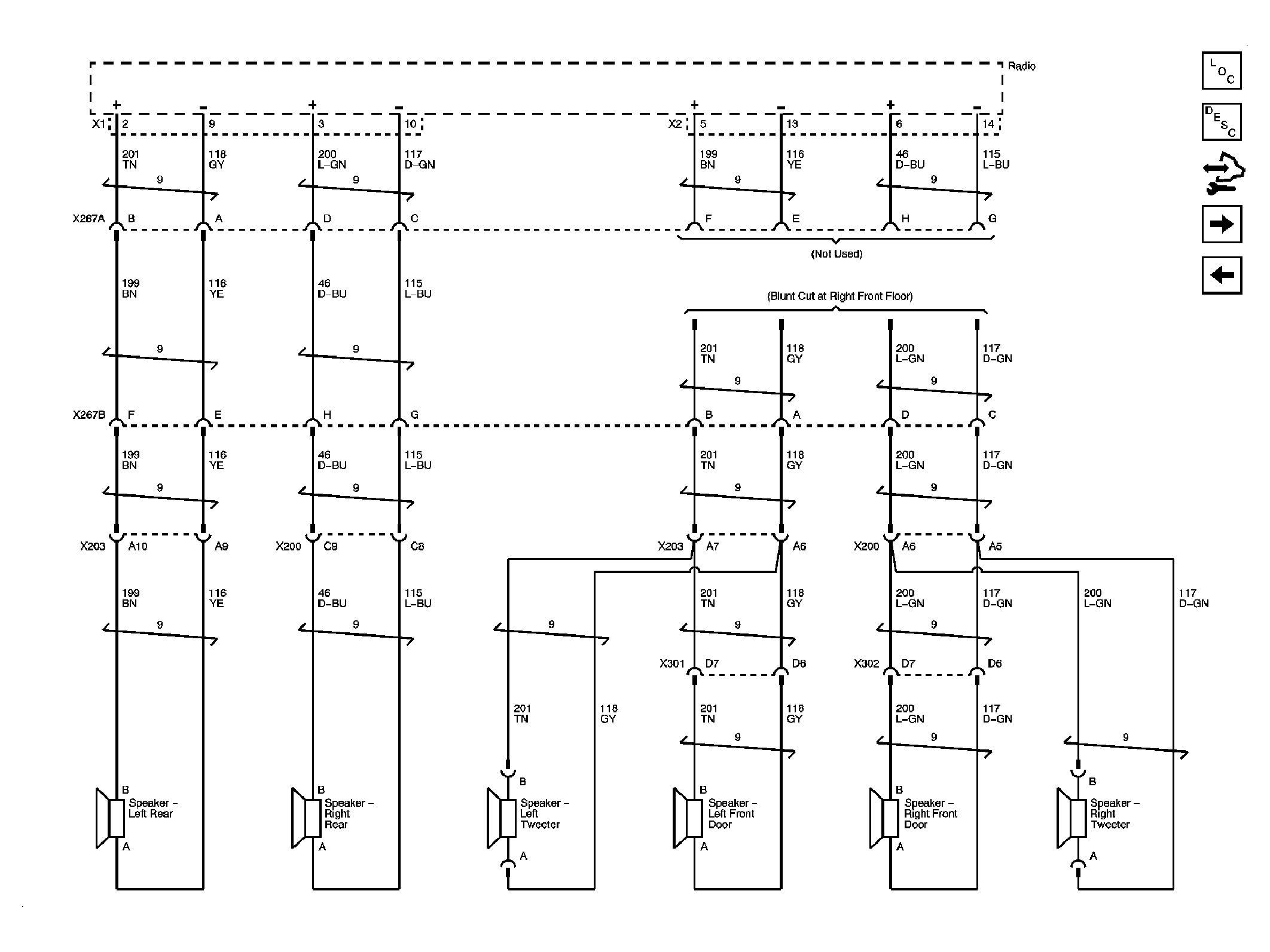

Fig 6: Radio to Speakers - 9C1/9C3 and WX7

GM2080689

Courtesy of GENERAL MOTORS CORP.

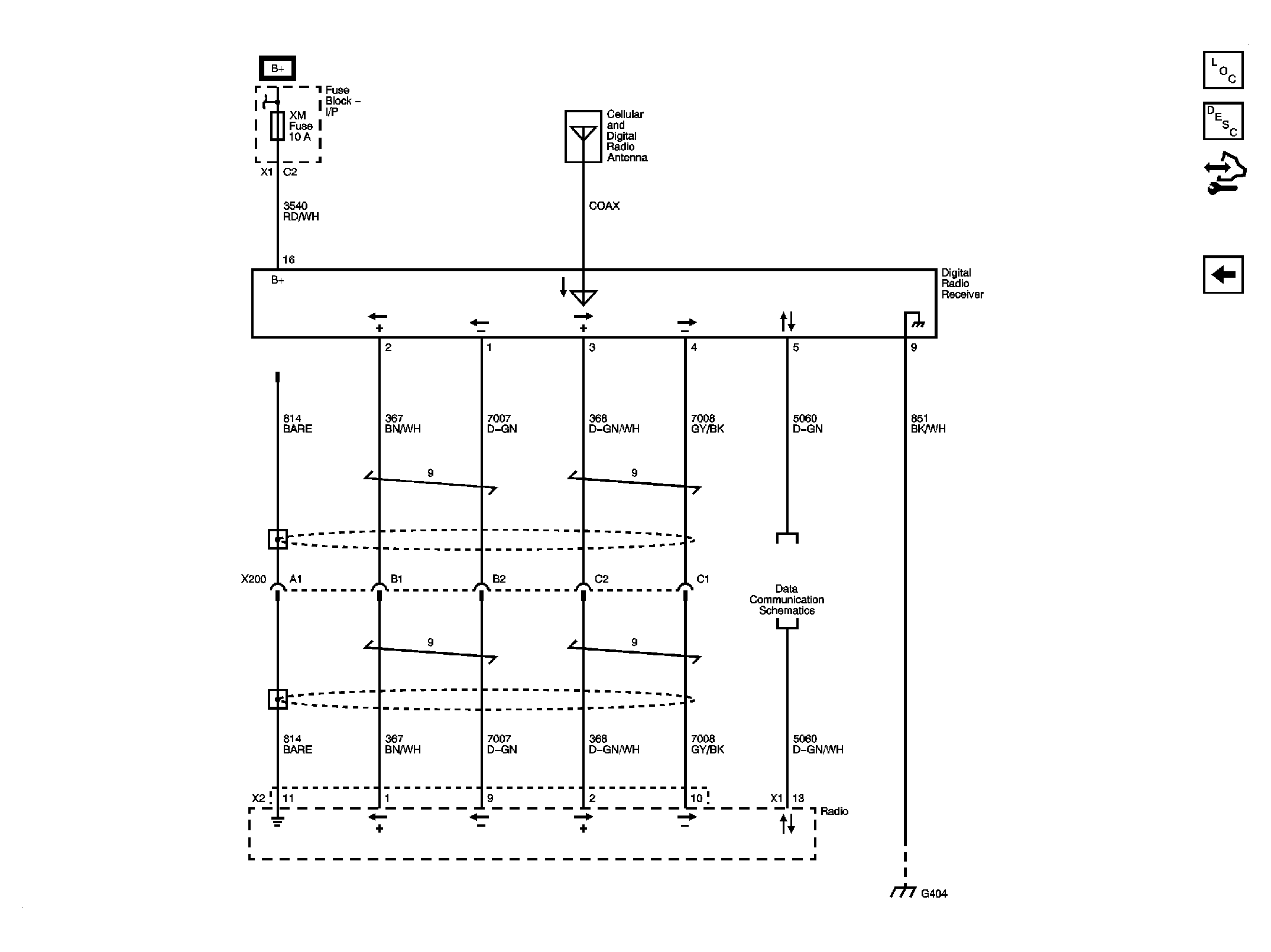

Fig 7: Satellite Radio - U2K

GM2080691

Courtesy of GENERAL MOTORS CORP.
