Accessory AC and DC Power Control Module Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

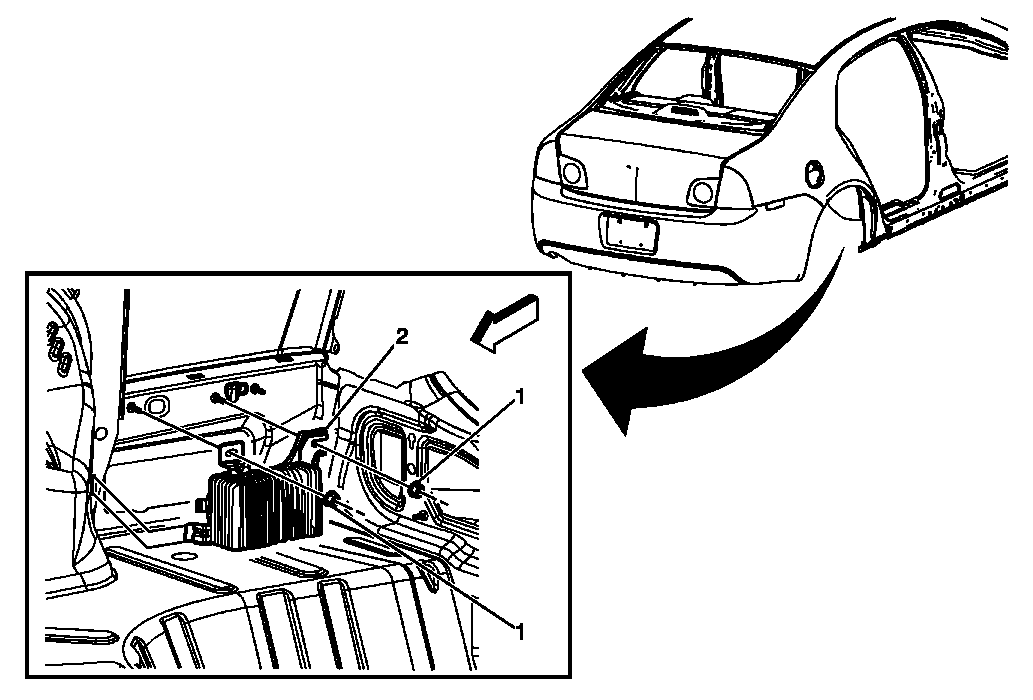

Fig 1: Identifying Accessory AC and DC Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
1	Accessory AC and DC Power Control Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6.5 N.m (57 lb in) TIP: Unclip wire harness from stud.
2	Accessory AC and DC Power Control Module Procedure Disconnect the electrical connectors. Program the AC and DC power control module. Refer to Control Module References for programming and set up.

Callout

Component Name

Preliminary Procedures
Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .

Accessory AC and DC Power Control Module Nut (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
6.5 N.m (57 lb in)
TIP: Unclip wire harness from stud.

Accessory AC and DC Power Control Module

Procedure

Disconnect the electrical connectors.
Program the AC and DC power control module. Refer to Control Module References for programming and set up.
