Sunroof Module Assembly Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

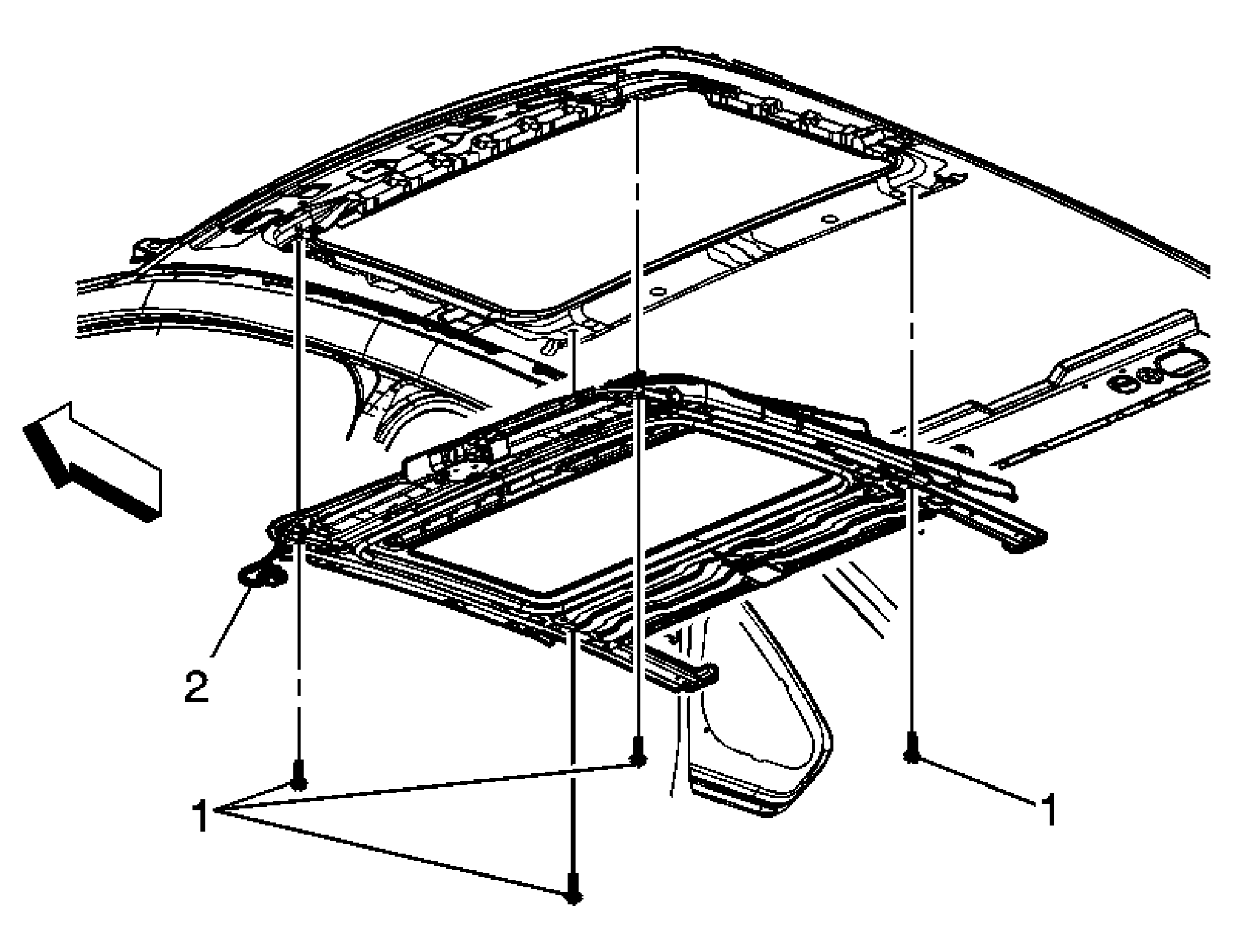

Fig 1: Replacing Sunroof Module Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the headliner. Refer to Headliner Replacement (Impala) or Headliner Replacement (Monte Carlo) . Remove the sunroof motor/actuator. Refer to Sunroof Motor/Actuator Replacement .
1	Bolts, Module Sunroof (Qty: 4) Tighten: 10 N.m (89 lb in)
2	Module, Sunroof

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the headliner. Refer to Headliner Replacement (Impala) or Headliner Replacement (Monte Carlo) .
Remove the sunroof motor/actuator. Refer to Sunroof Motor/Actuator Replacement .

Bolts, Module Sunroof (Qty: 4)

Tighten: 10 N.m (89 lb in)

Module, Sunroof
