Power Roof Systems Component Views
WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

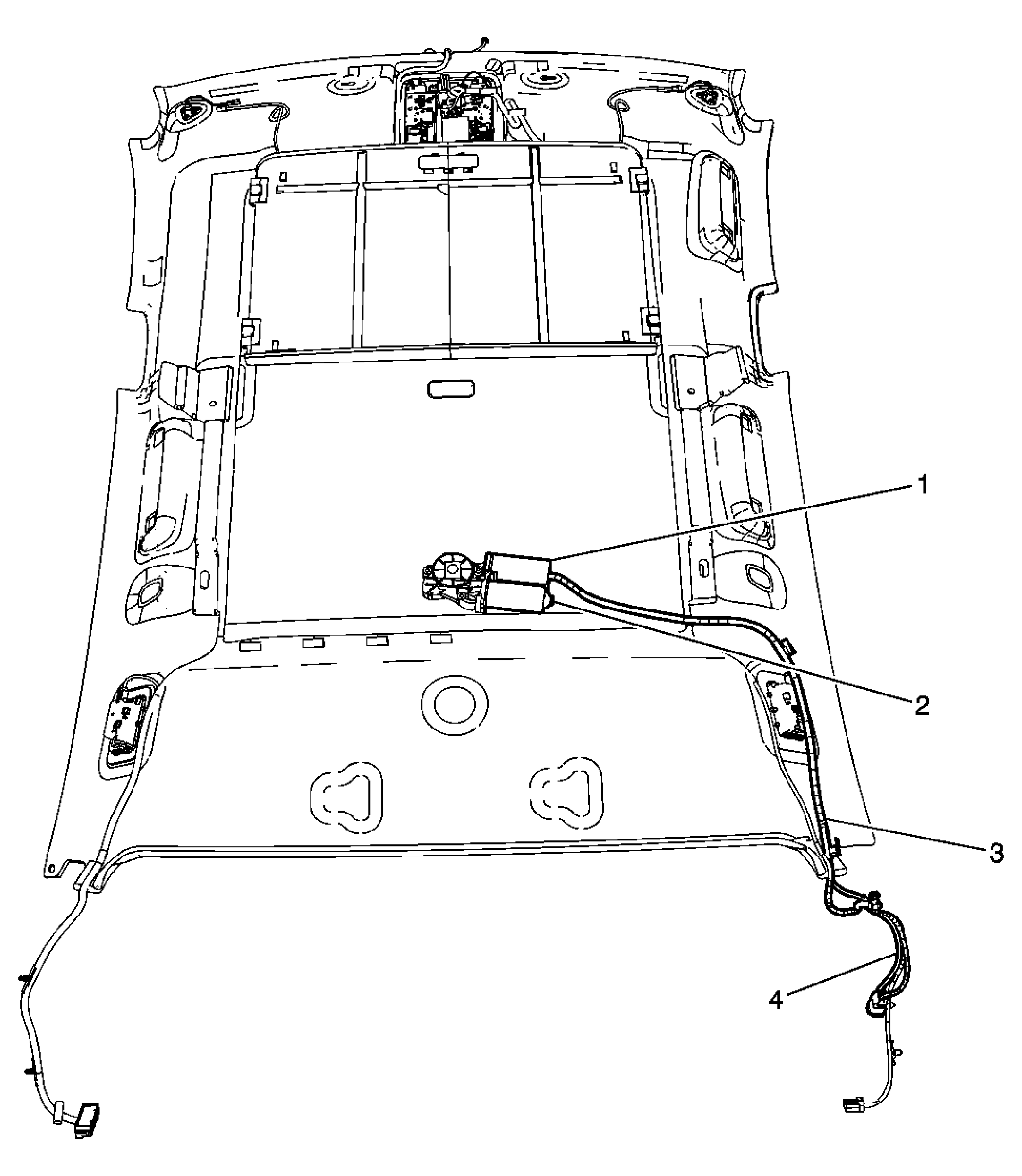

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Roof Rail Airbag-Right |
| 2 |
Sunroof Control Module (CF5) |
| 3 |
Sunroof Motor (CF5) |
| 4 |
Sunroof Harness (CF5) |
| 5 |
Headliner Harness |
| 6 |
Roof Rail Airbag-Left |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Switch - Open/Close (CF5) |
| 2 |
Cellular Microphone (UE1, U3U) |
| 3 |
Garage Door Opener Buttons (UG1) |
| 4 |
Cellular Microphone (UE1, U3U) |
| 5 |
Sunroof Switch - Vent (CF5) |
| 6 |
Courtesy Lamp - Overhead Console - Right |
| 7 |
Inside Rearview Mirror |
| 8 |
Courtesy Lamp Switch - Right |
| 9 |
Cellular Microphone (UE1, U3U) |
| 10 |
Garage Door Opener Transmitter (UG1) |
| 11 |
Cellular Microphone (UE1, U3U) |
| 12 |
Courtesy Lamp Switch - Left |
| 13 |
OnStar Button Assembly |
| 14 |
Inflatable Restraint I/P Module Indicator |
| 15 |
Courtesy Lamp Overhead Console - Left |
