Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

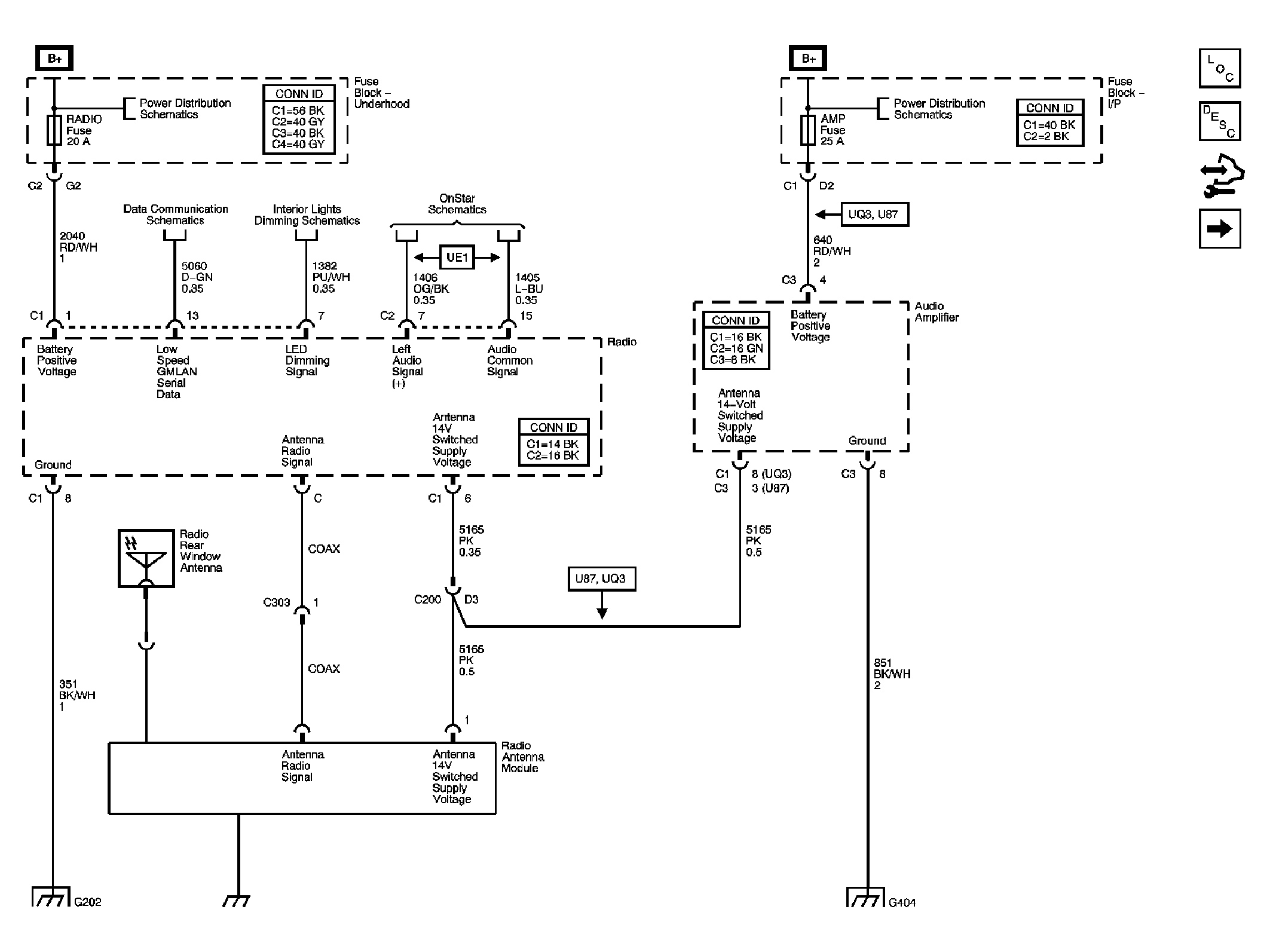

Fig 1: Power, Ground, and References
GM1762161Courtesy of GENERAL MOTORS CORP.

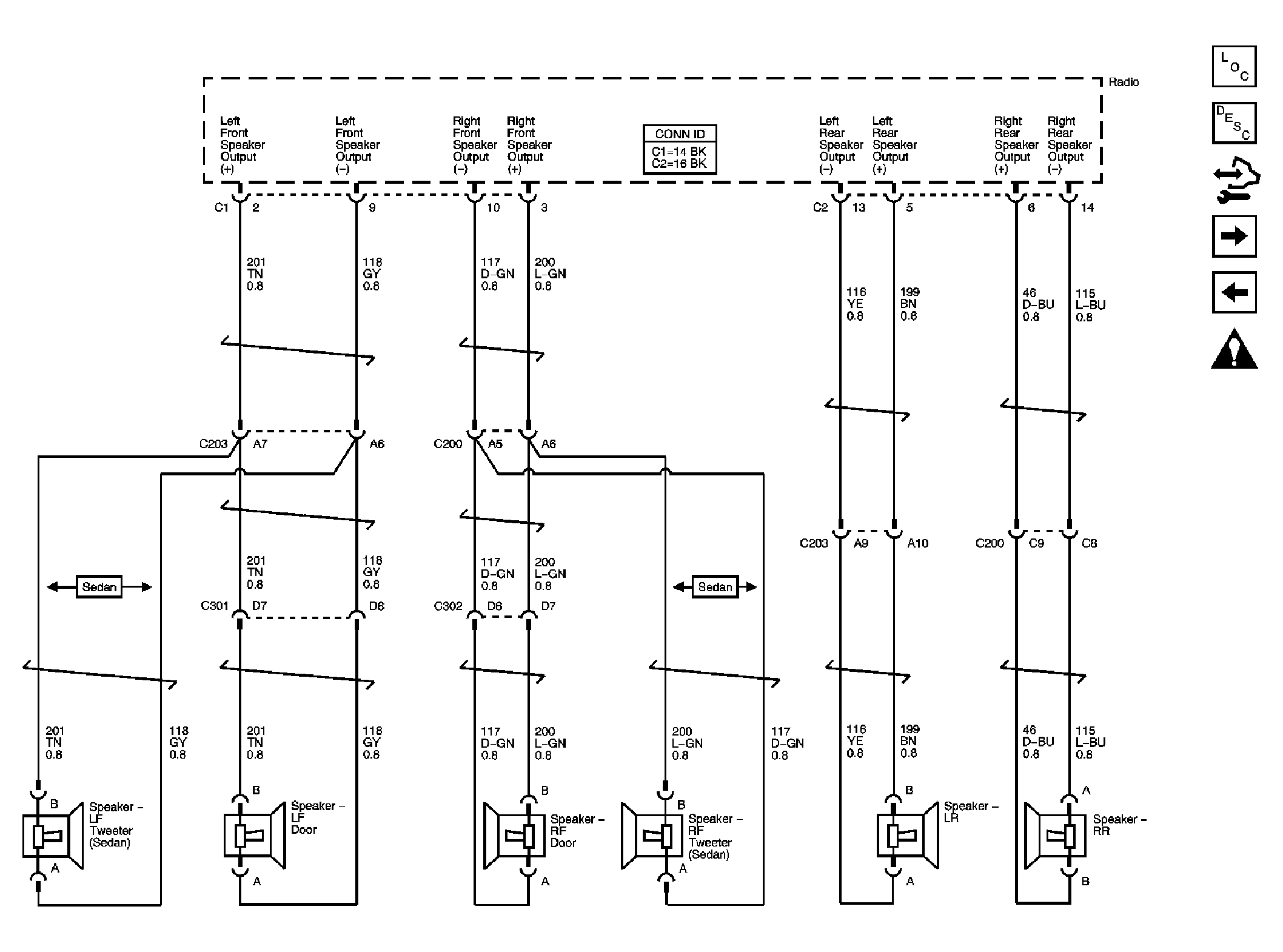

Fig 2: Radio to Speakers - UW6
GM1762164Courtesy of GENERAL MOTORS CORP.

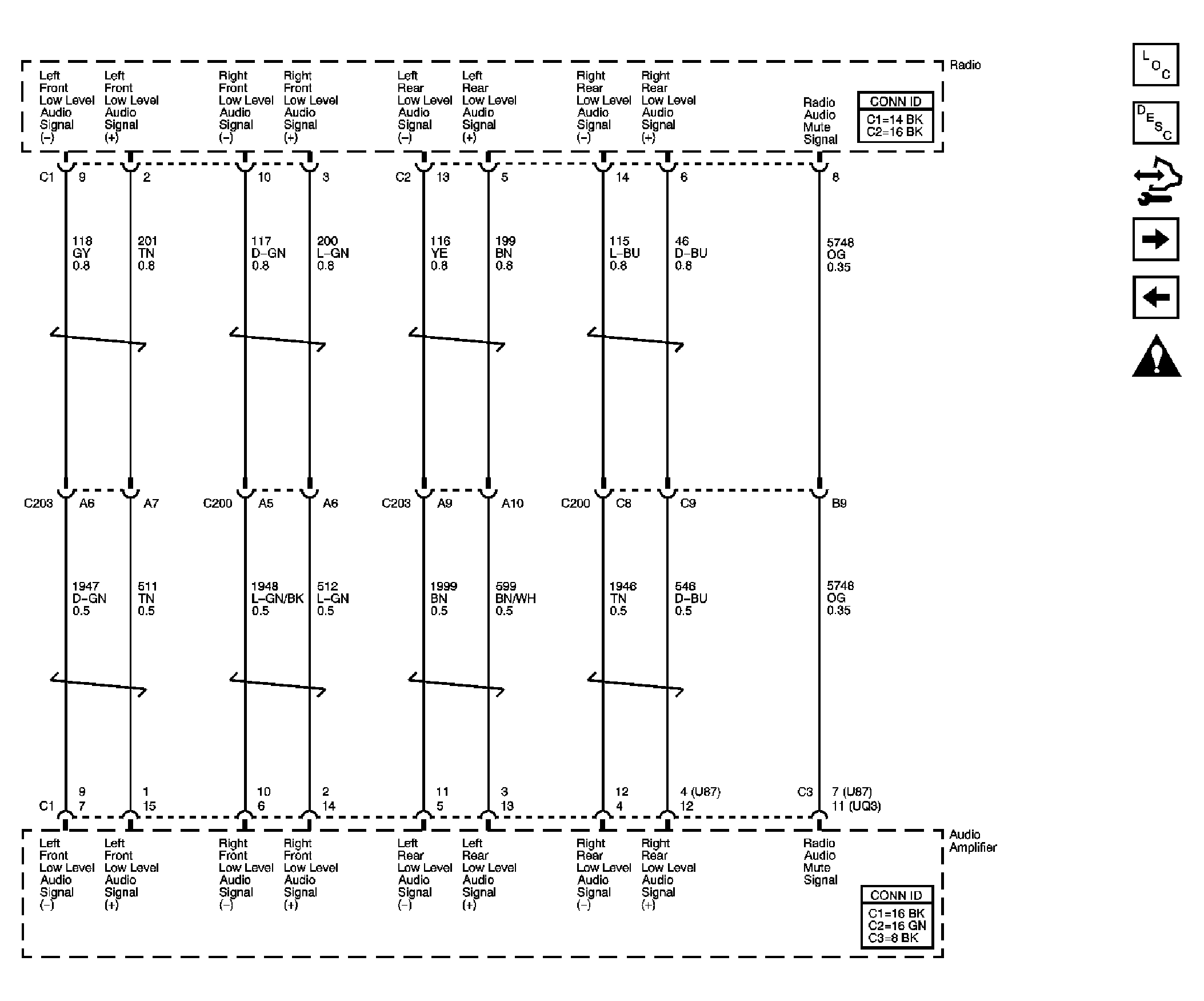

Fig 3: Audio Signal Communications - UQ3
GM1762165Courtesy of GENERAL MOTORS CORP.

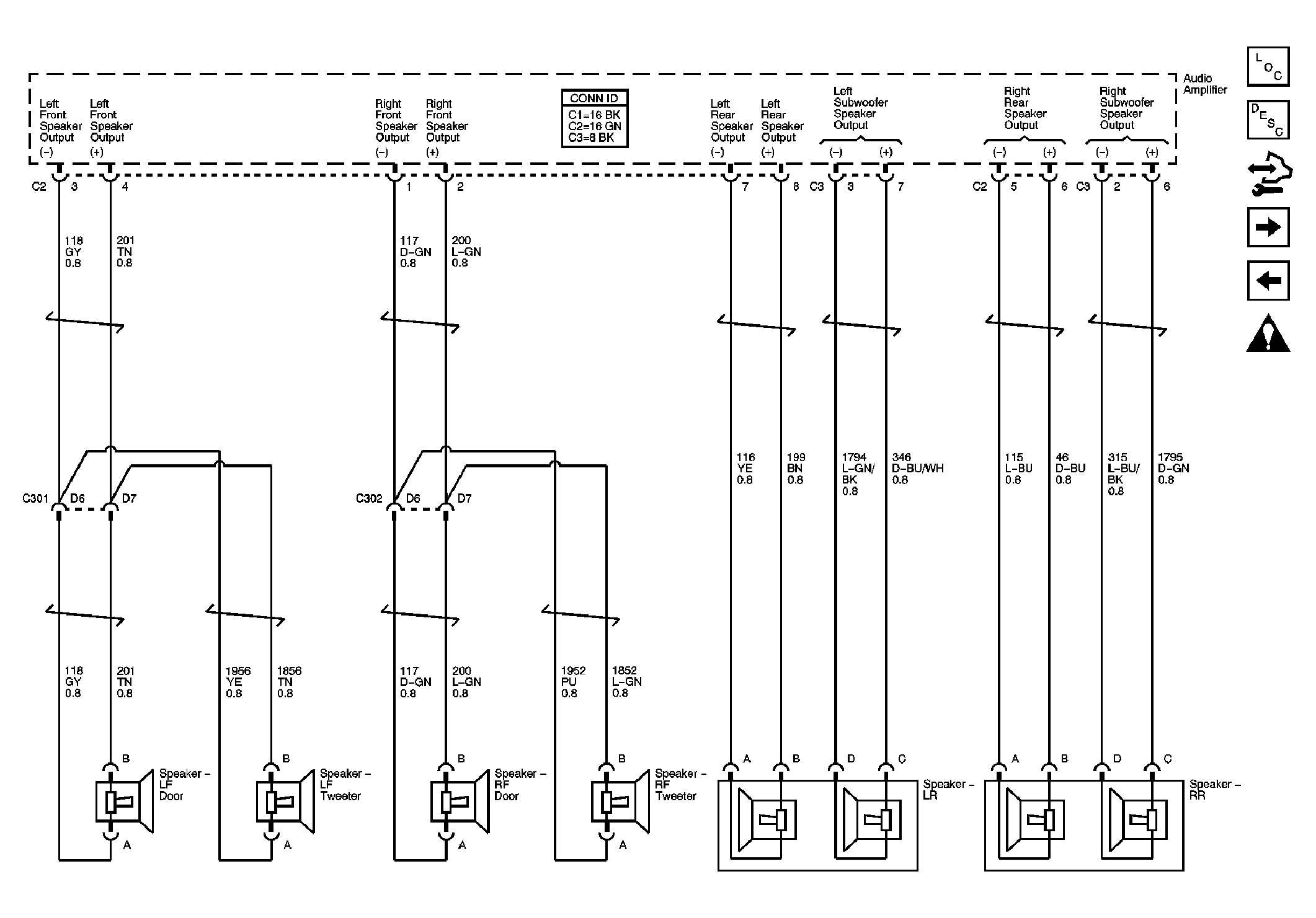

Fig 4: Audio Amplifier to Speakers - UQ3, Sedan
GM1762167Courtesy of GENERAL MOTORS CORP.

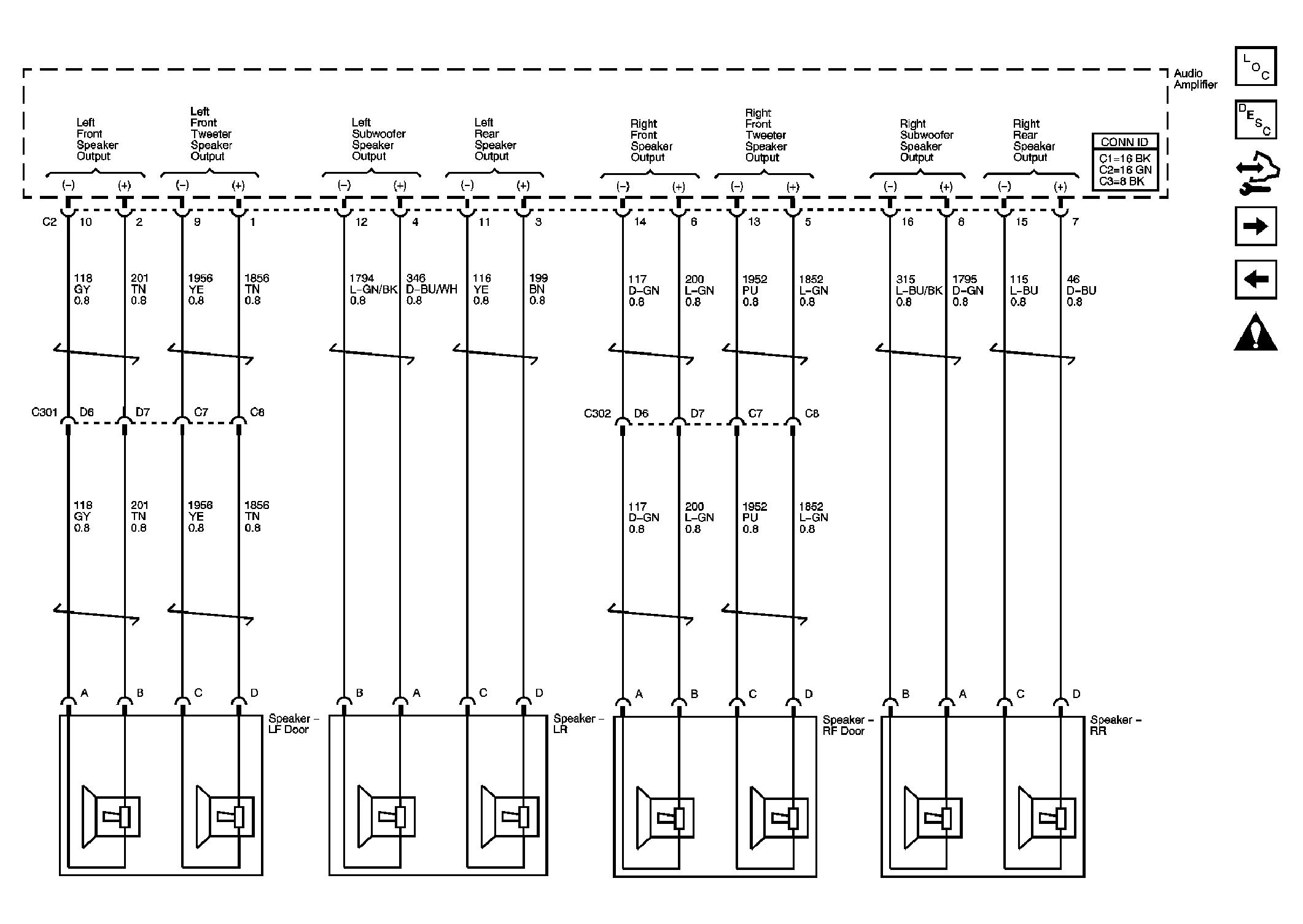

Fig 5: Amplifier to Speakers - UQ3, Coupe
GM1762170Courtesy of GENERAL MOTORS CORP.

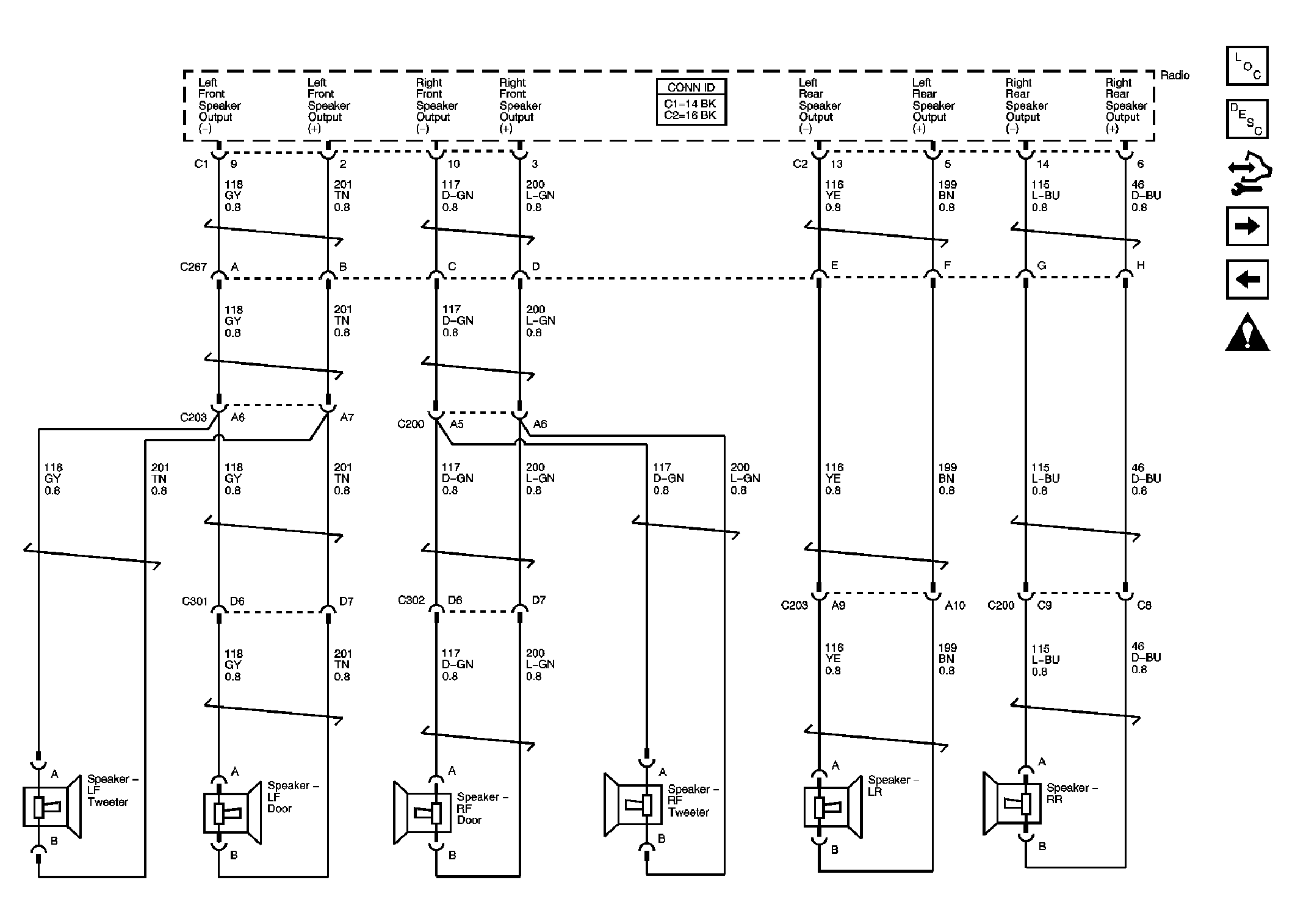

Fig 6: Radio to Speakers - 9C1, 9C3, w/o WX7
GM1762172Courtesy of GENERAL MOTORS CORP.

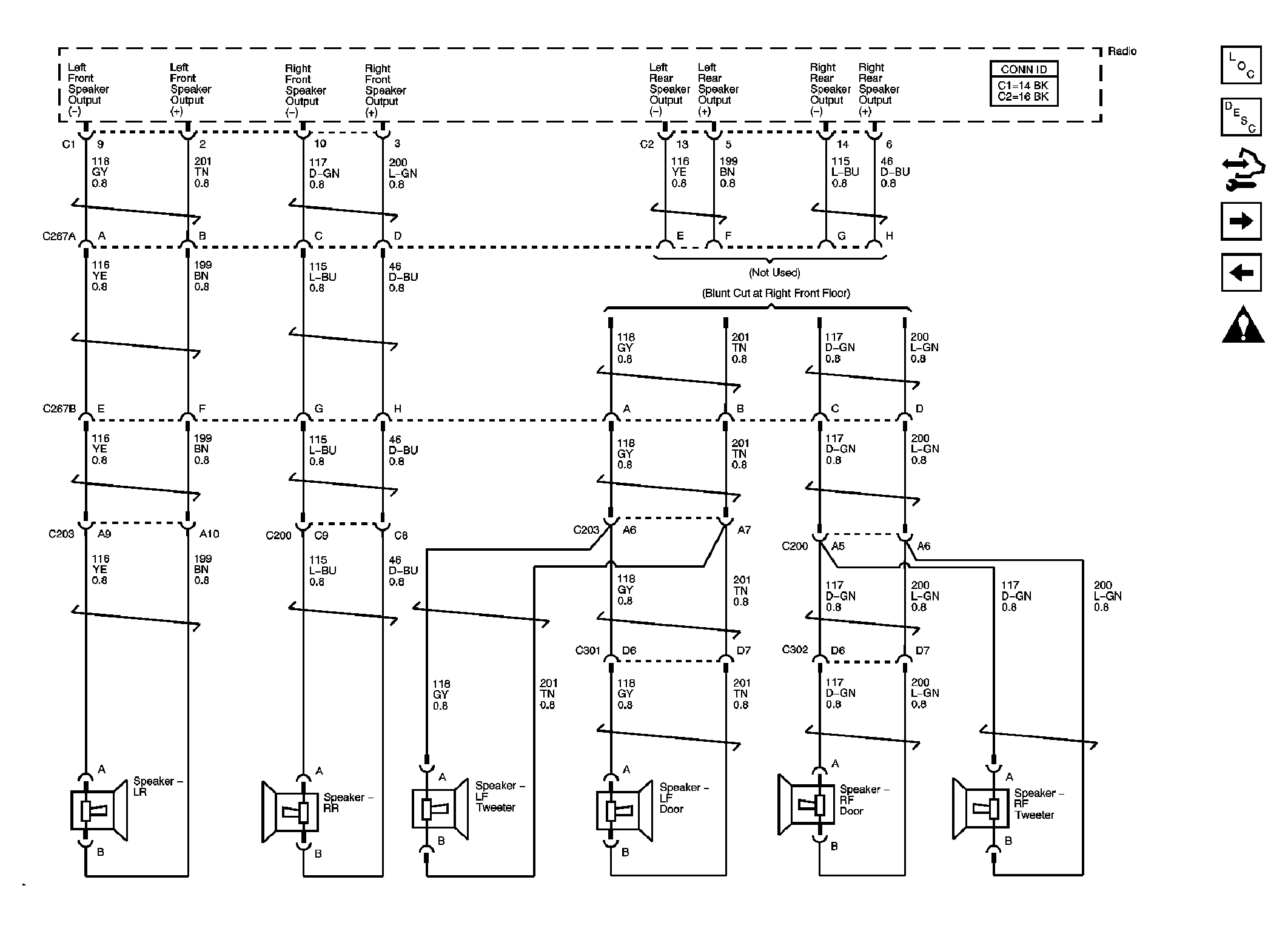

Fig 7: Radio to Speakers - 9C1, 9C3, and WX7
GM1762174Courtesy of GENERAL MOTORS CORP.
Fig 8: Satellite Radio - U2K
GM1762175Courtesy of GENERAL MOTORS CORP.
