Steering Wheel Control Switch - Right

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

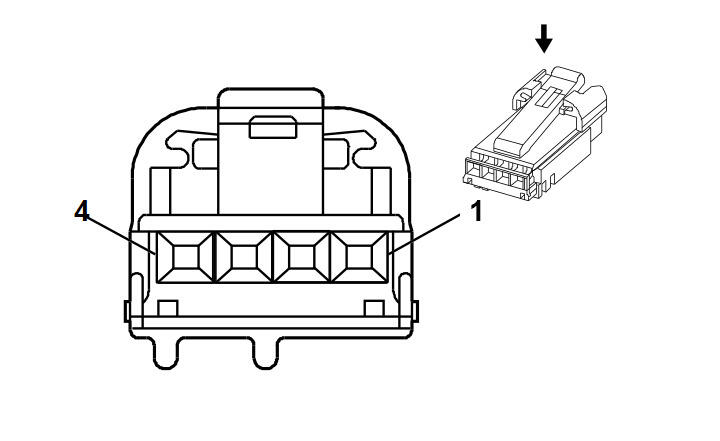

Fig 1: Steering Wheel Control Switch - Right Connector End View

Courtesy of GENERAL MOTORS CORP.

Steering Wheel Control Switch - Right Connector & Terminal Parts Information

Connector Part Information

OEM: 31068-1010
Service: See Catalog
Description: 4-Way F RECEPTACLE 0.64 BK

Terminal/Tray: 1393364-2/7
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Steering Wheel Control Switch - Right Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	BK	350	Ground
2	PU/WH	1381	LCD Dimming Signal
3	PU	1375	Remote Radio Control Head Accessory Supply Voltage
4	D-BU	1796	Steering Column Radio Control Signal
