Communications Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

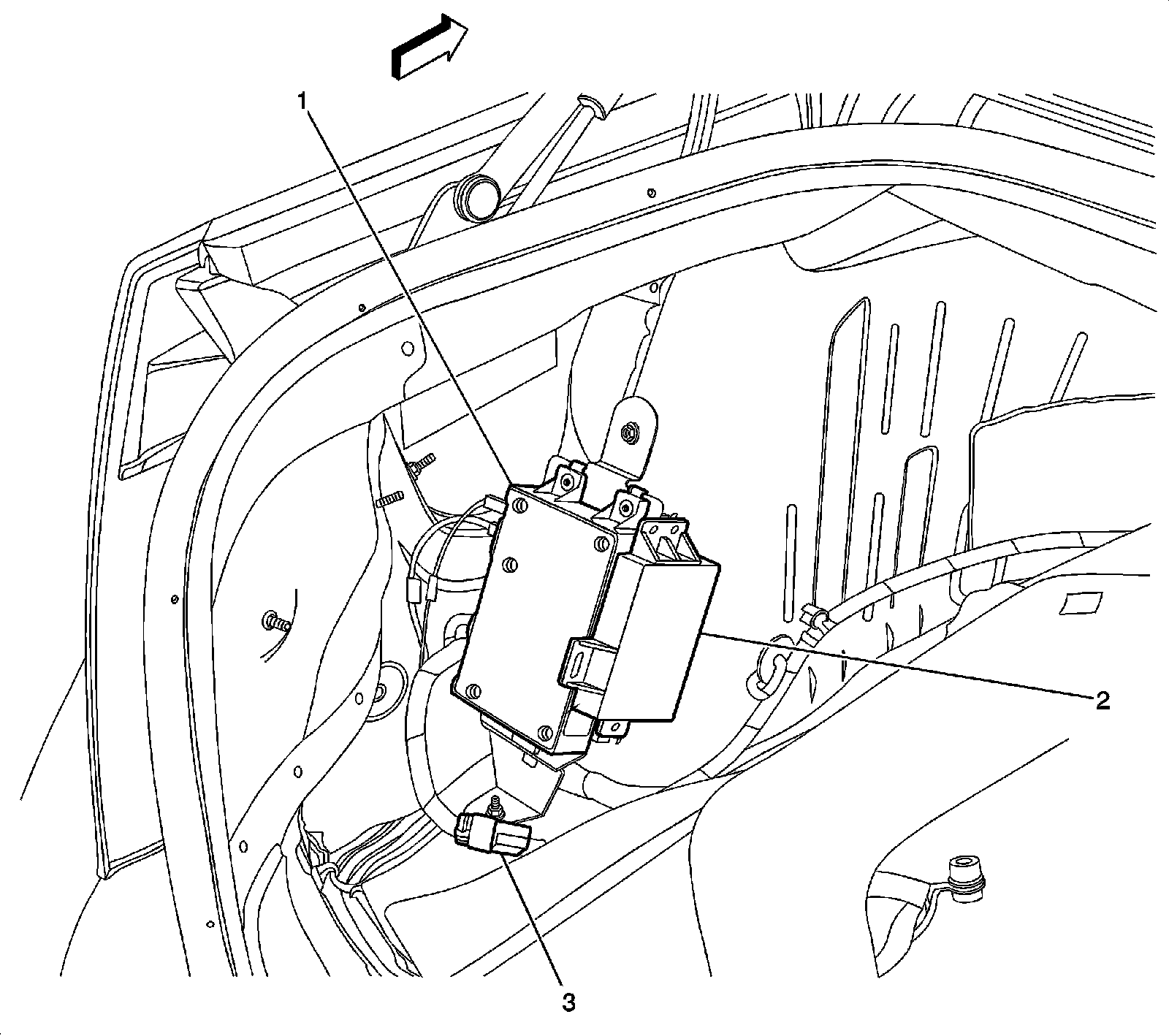

Left Side of Rear Compartment




1 - Vehicle Communication Interface Module (VCIM) (UE1)
2 - Vehicle Communication Interface Module (VCIM) Battery (UE1)
3 - Data Link Resistor (UE1)
