I/P Fuse Block




Electrical Center Identification Views

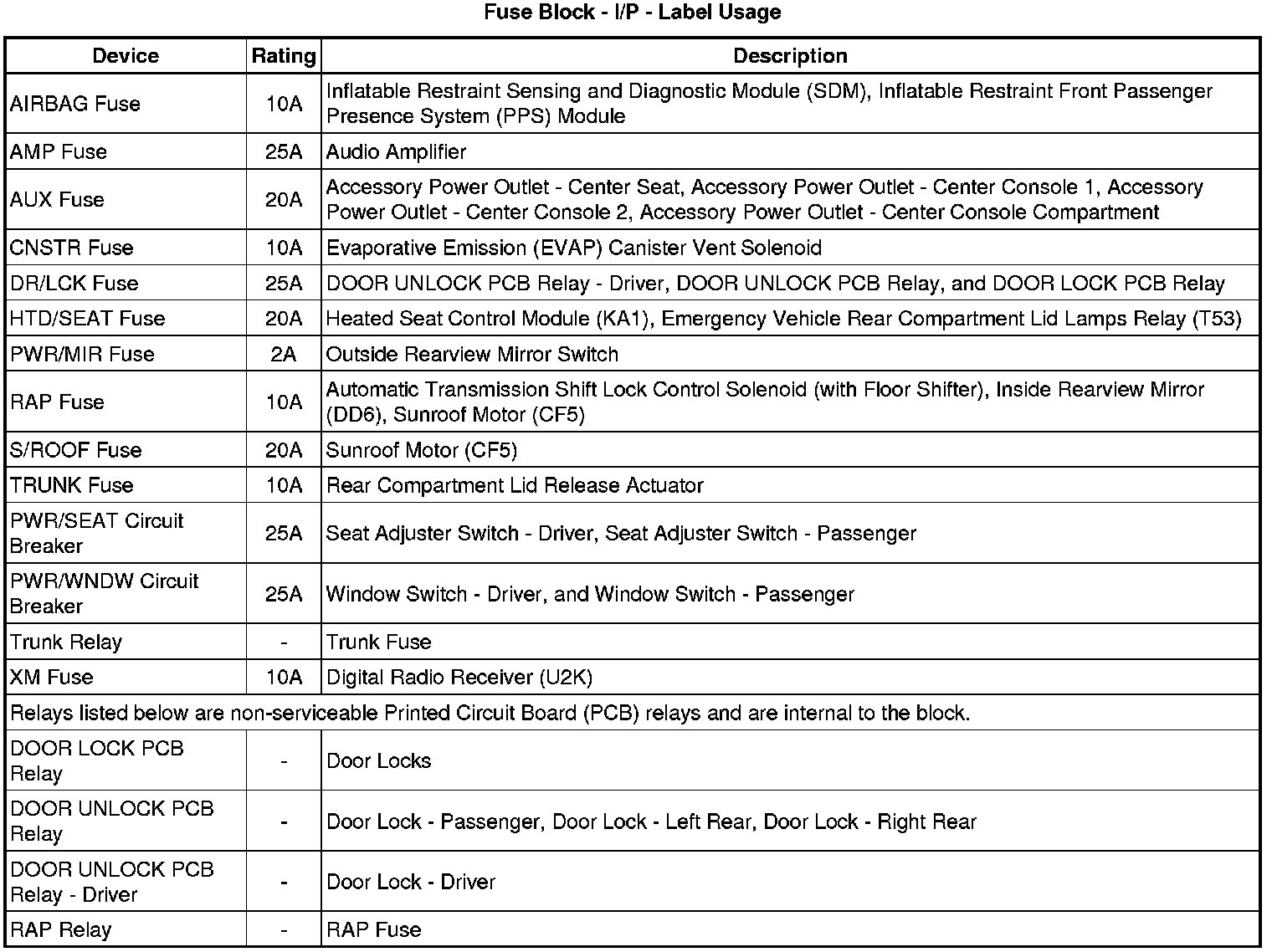

Fuse Block - I/P - Label

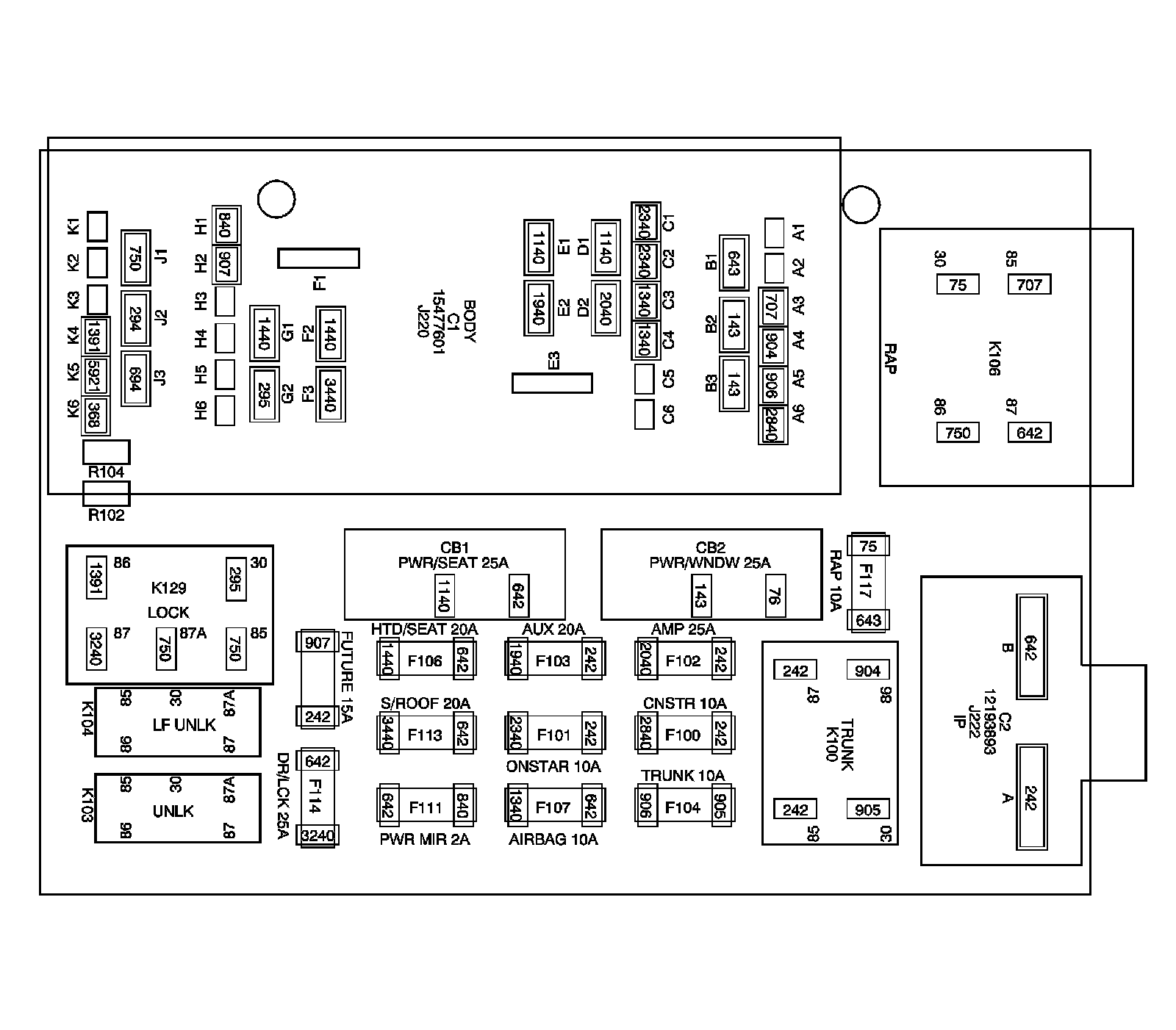

Fuse Block - I/P Top View

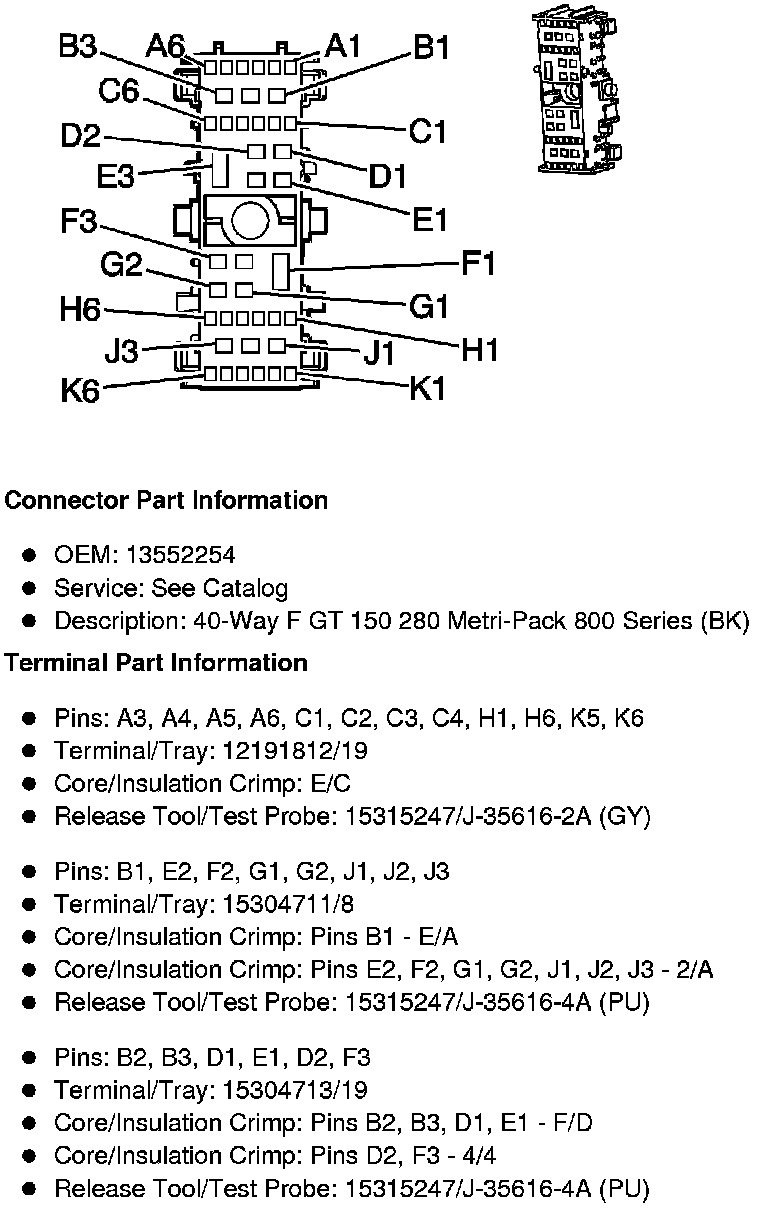

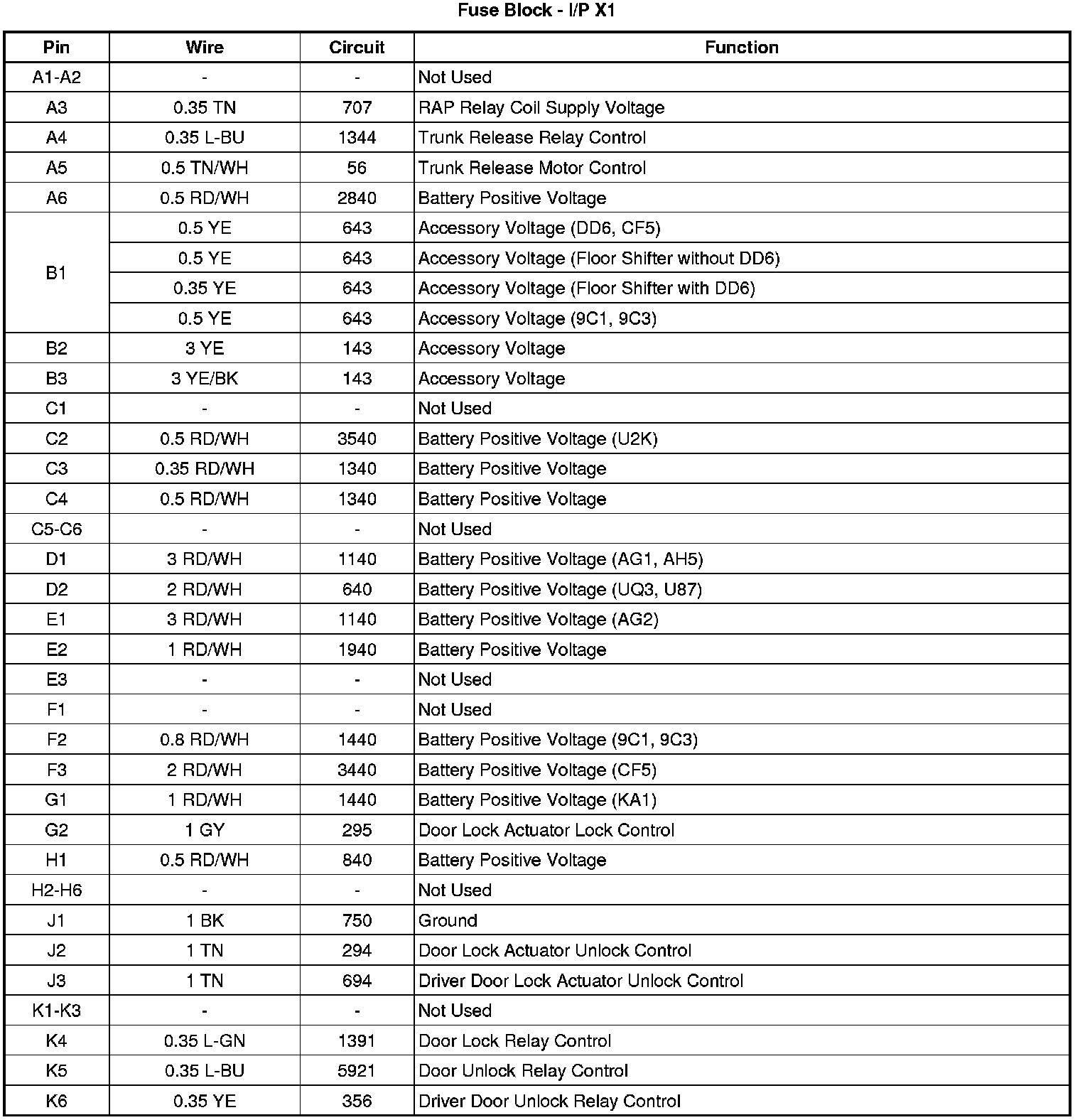

Fuse Block - I/P X1










Fuse Block - I/P X2
