Body Control System Schematics

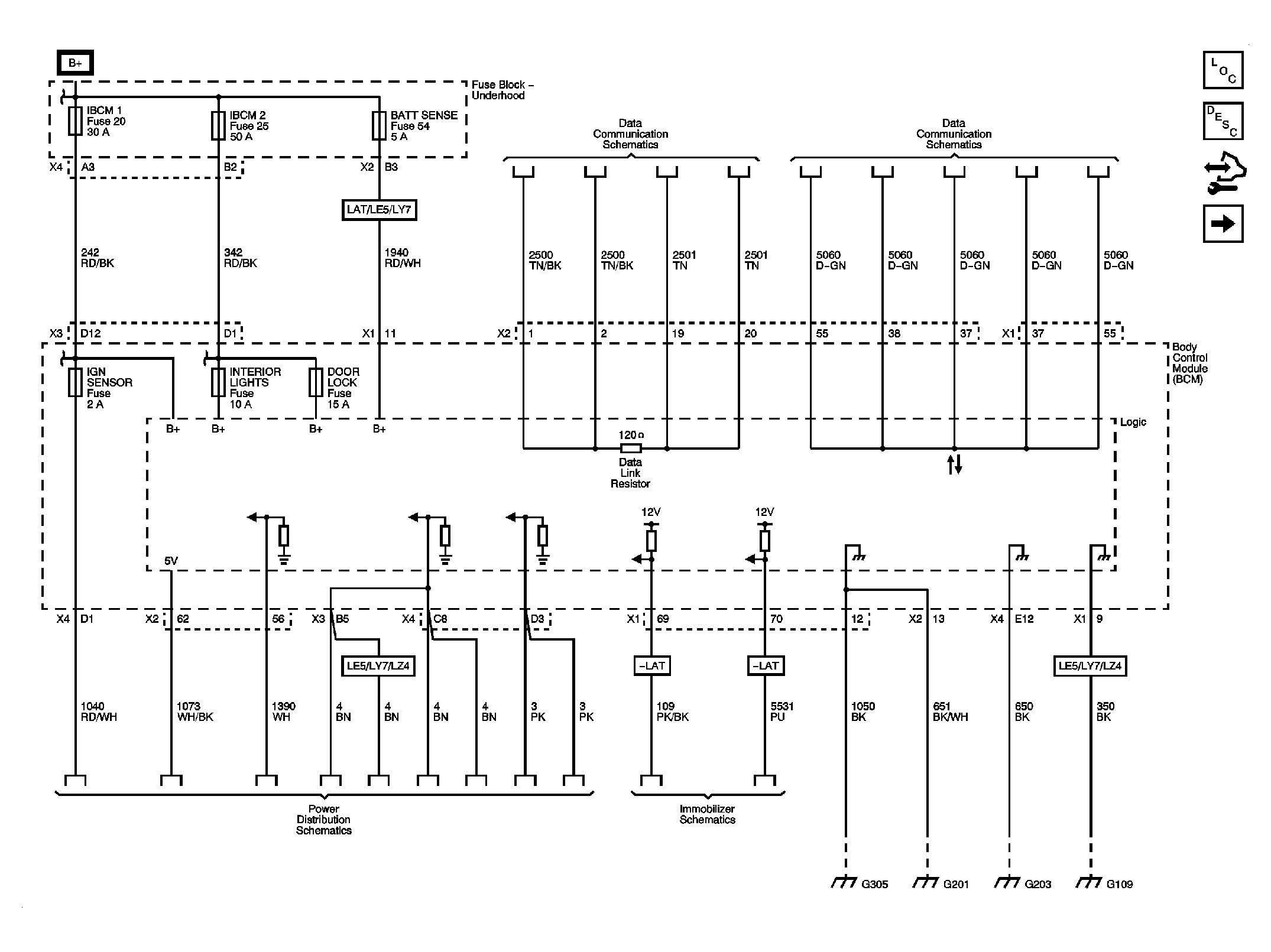

Fig 1: Power, Ground, and DLC

Courtesy of GENERAL MOTORS CORP.

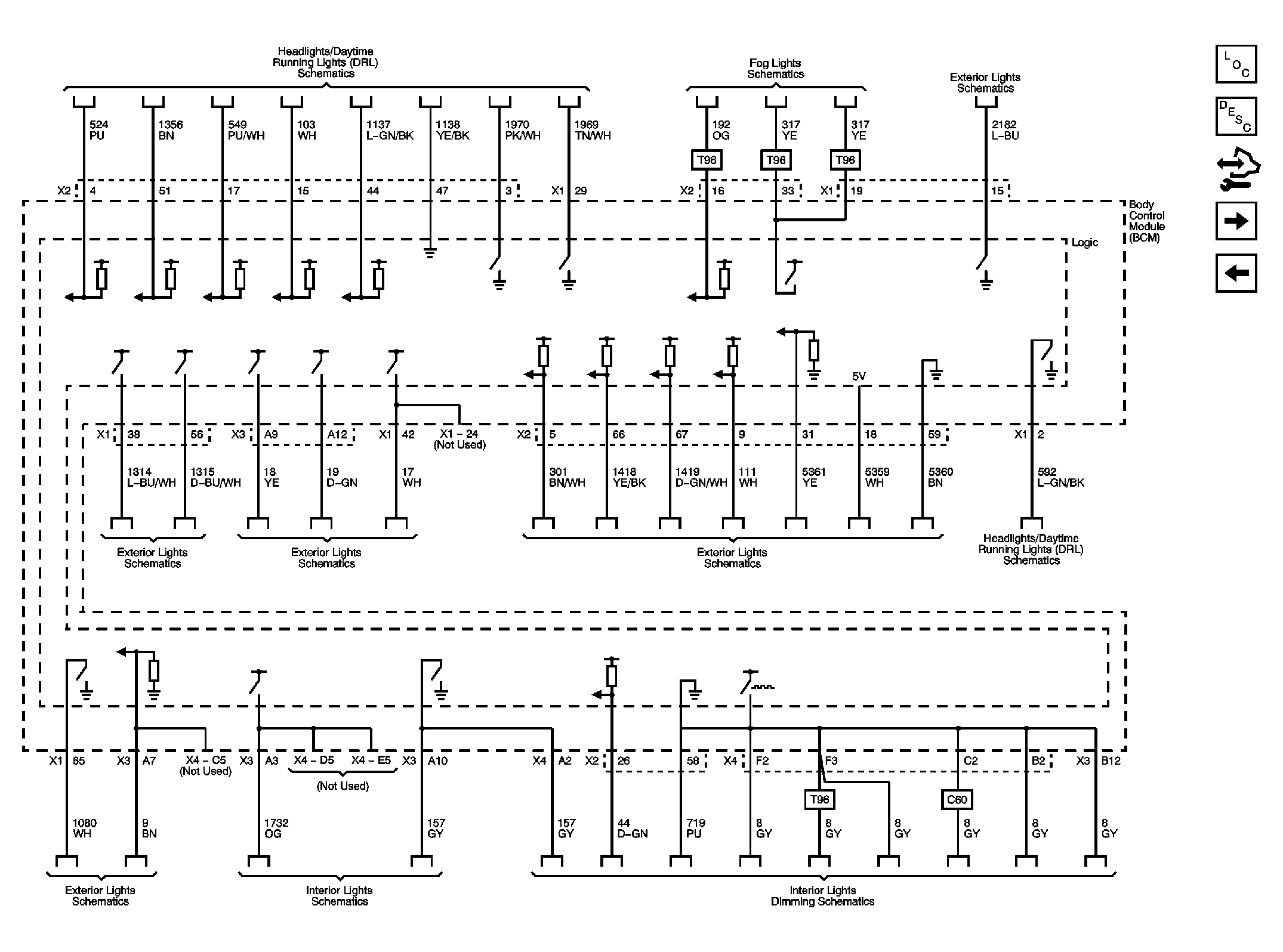

Fig 2: View of Controlled/Monitored Subsystem References 1 of 3

Courtesy of GENERAL MOTORS CORP.

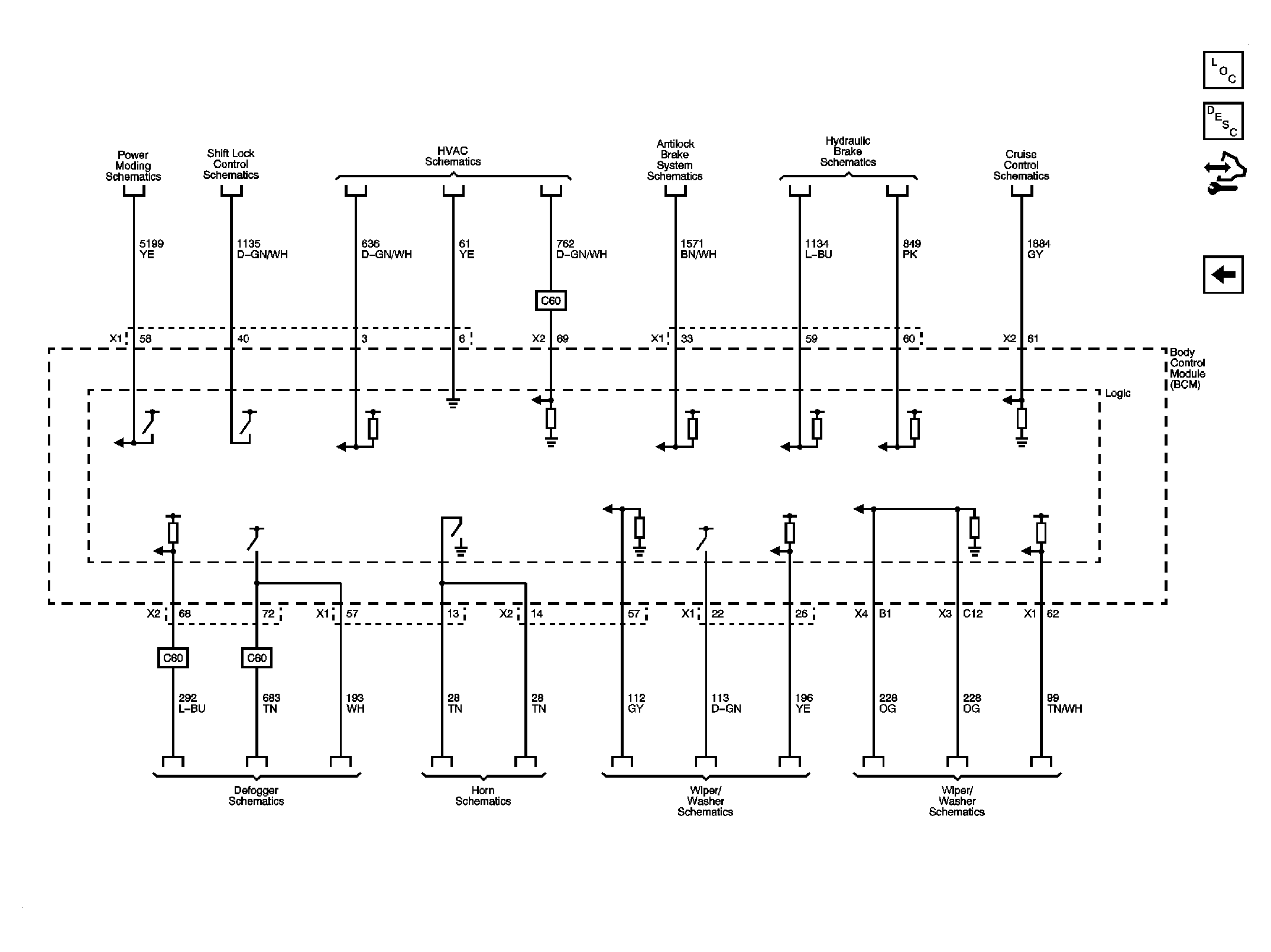

Fig 3: View of Controlled/Monitored Subsystem References 2 of 3

Courtesy of GENERAL MOTORS CORP.

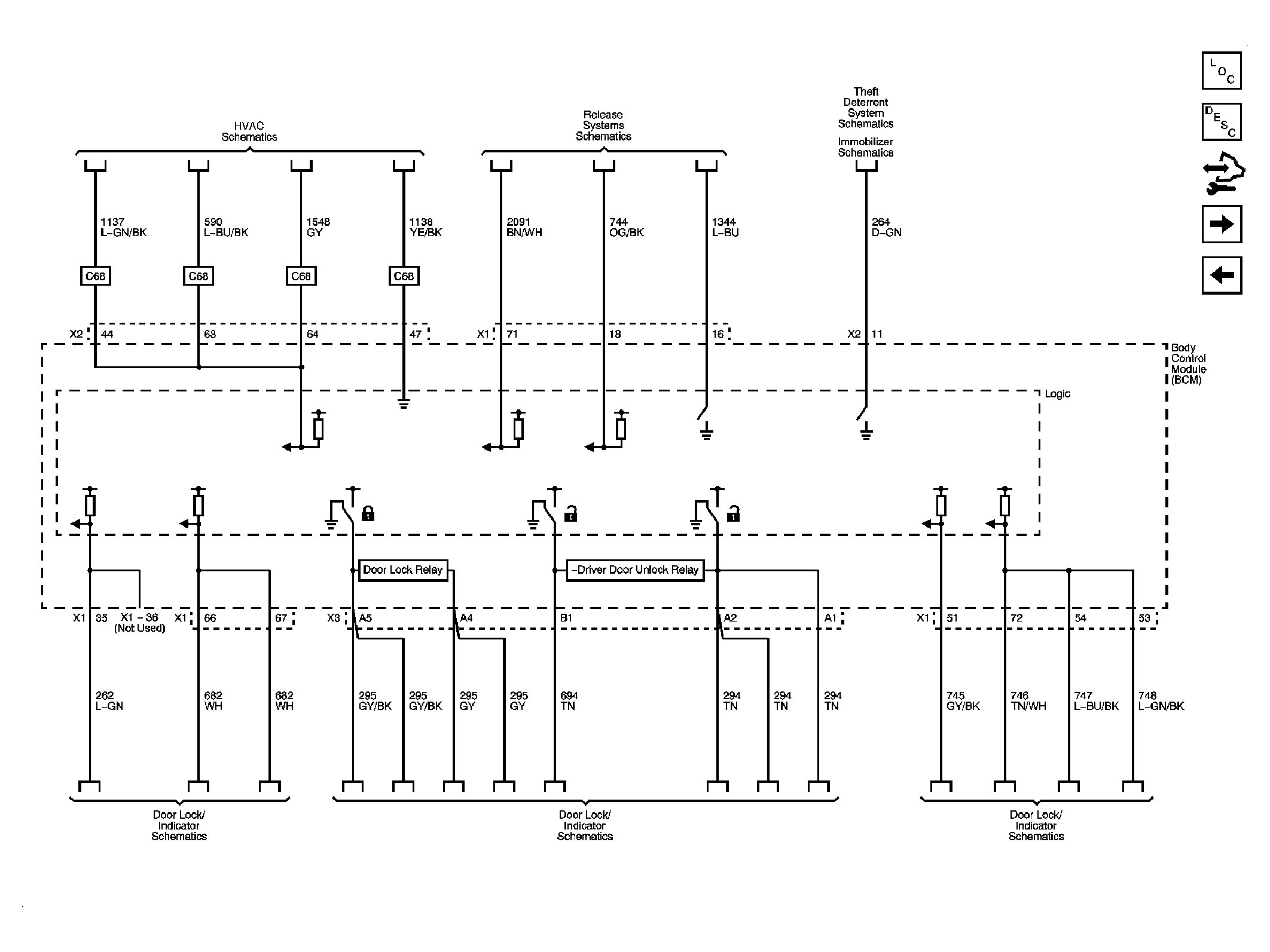

Fig 4: View of Controlled/Monitored Subsystem References 3 of 3

Courtesy of GENERAL MOTORS CORP.
