Air Bag Control Module: Locations

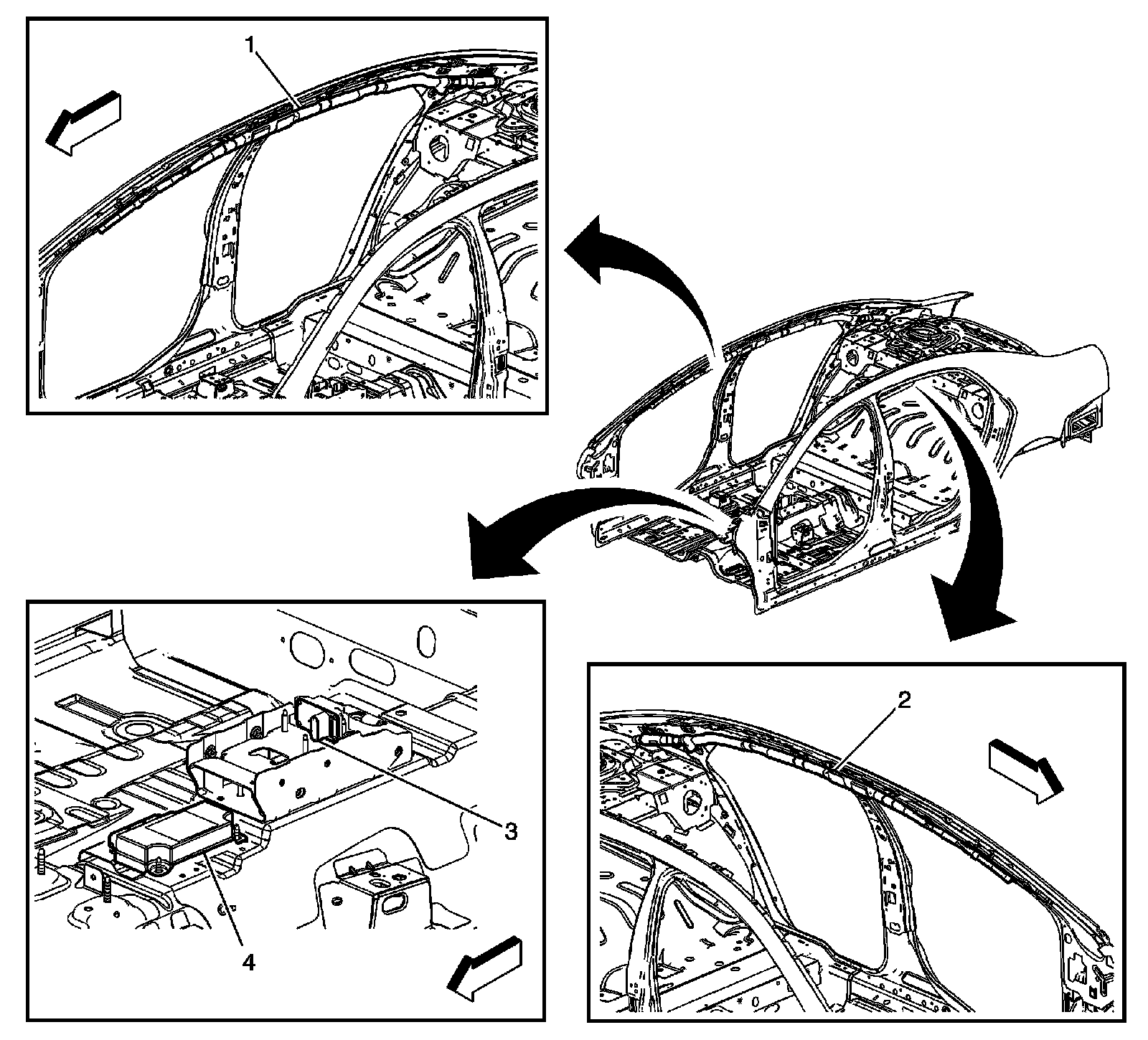

Passenger Compartment/Roof Component Views

Roof Rail Inflatable Restraints and Under the Center Console




1 - Inflatable Restraint Roof Rail Module - Right Front
2 - Inflatable Restraint Roof Rail Module - Left Front
3 - Yaw and Lateral Accelerometer Sensor (FX3)
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
