Amplifier, Sound System




Component Connector End Views

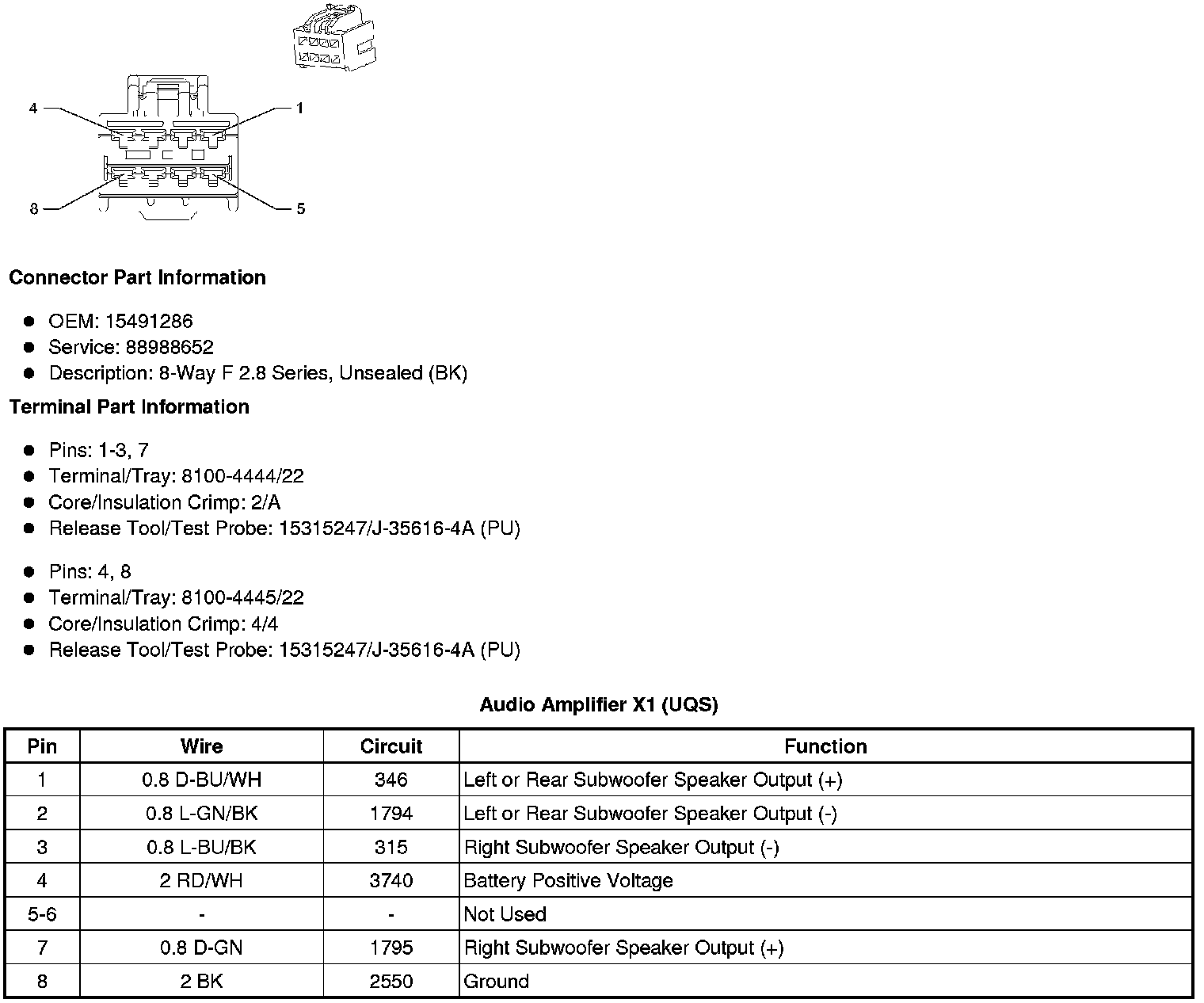

Audio Amplifier X1 (UQS)

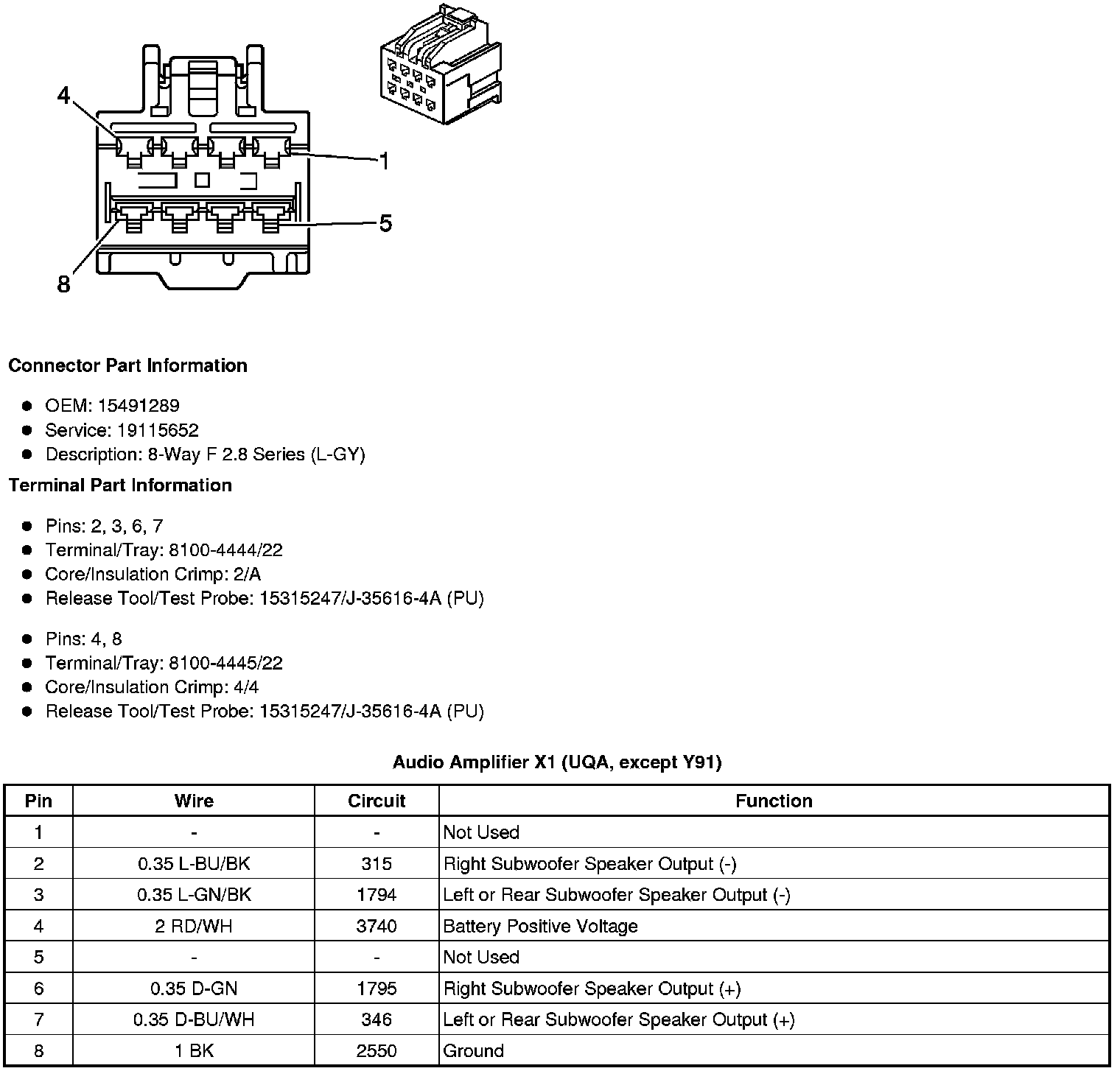

Audio Amplifier X1 (UQA, except Y91)

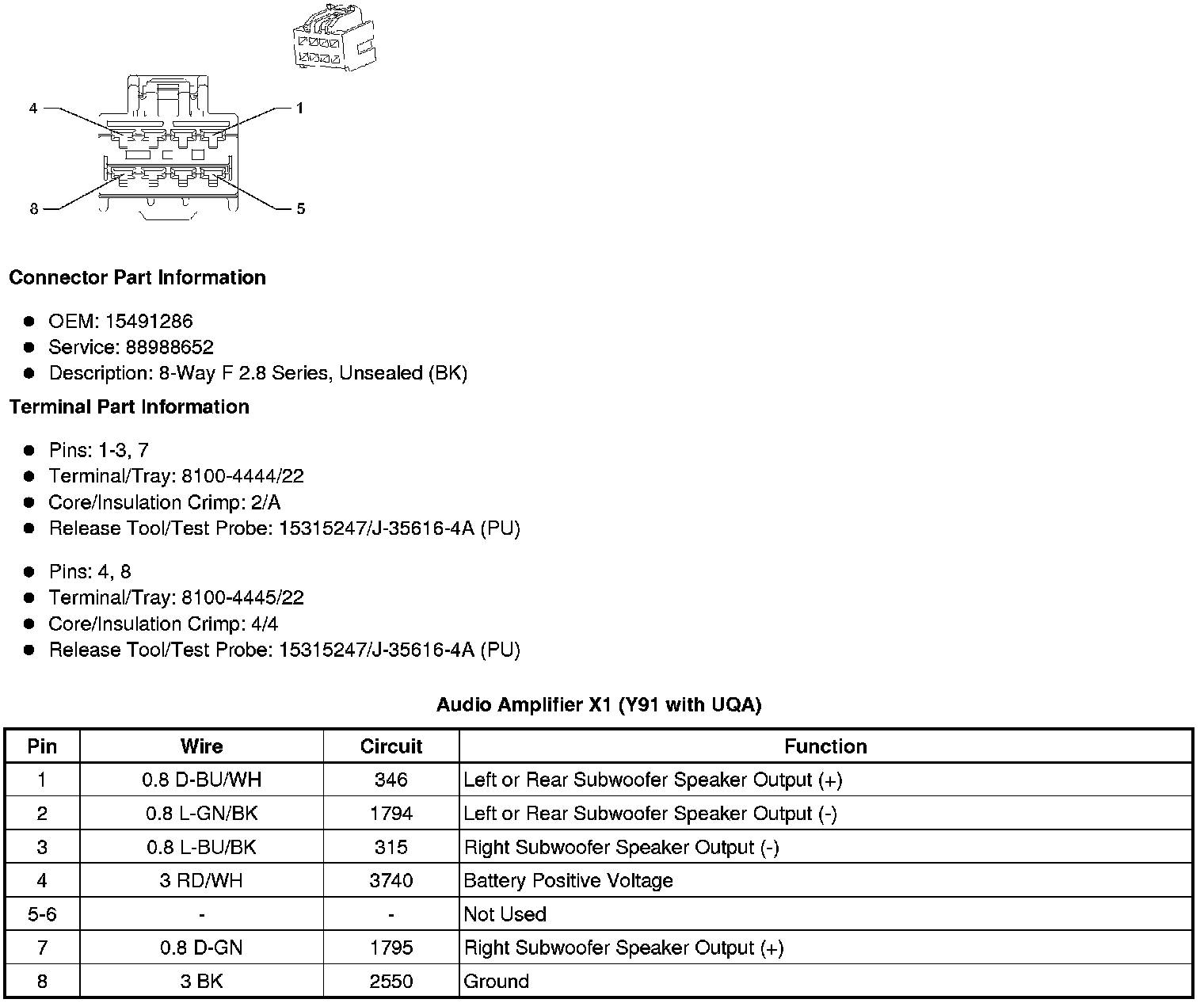

Audio Amplifier X1 (Y91 with UQA)





Audio Amplifier X2 (UQS)

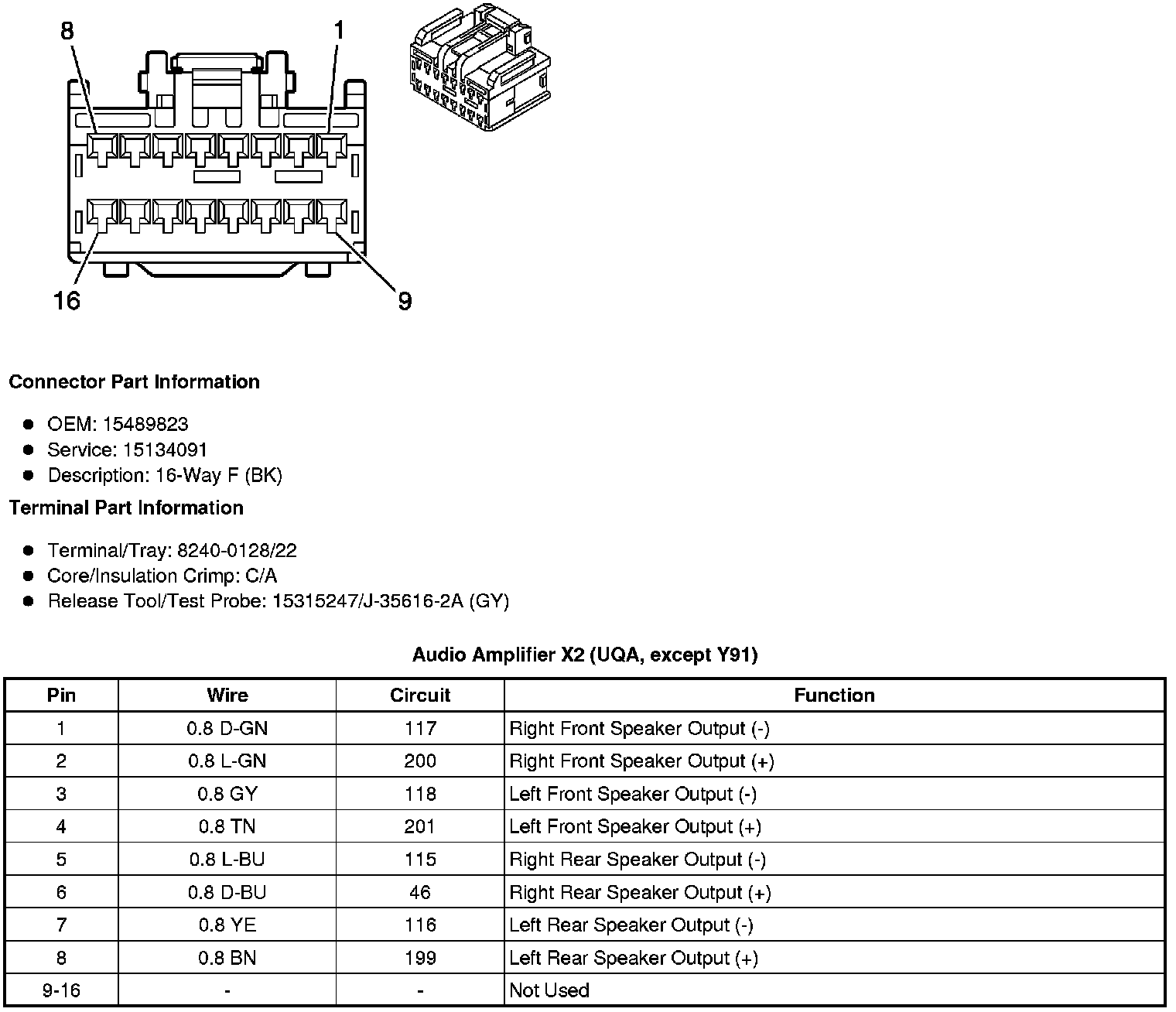

Audio Amplifier X2 (UQA, except Y91)

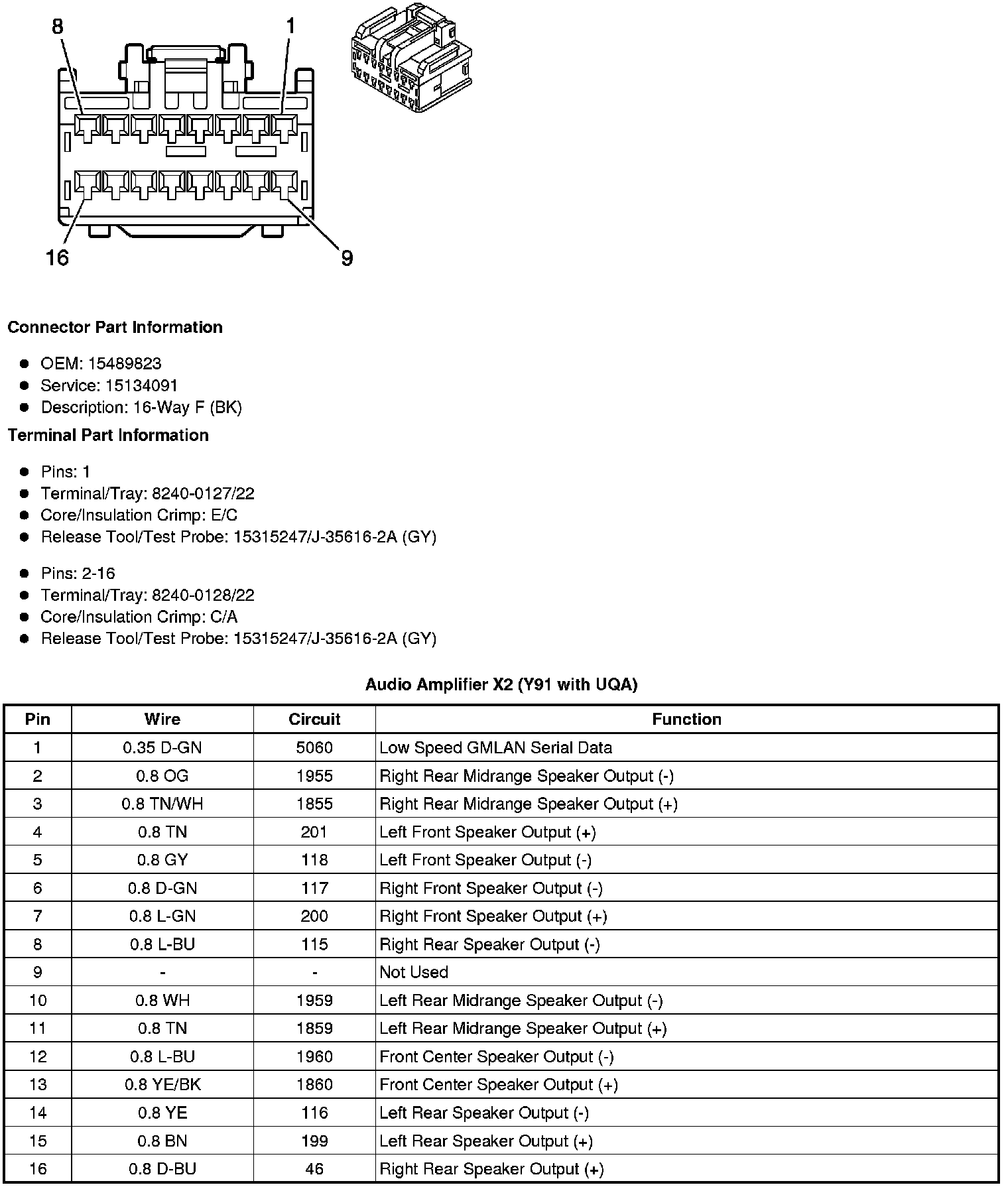

Audio Amplifier X2 (Y91 with UQA)

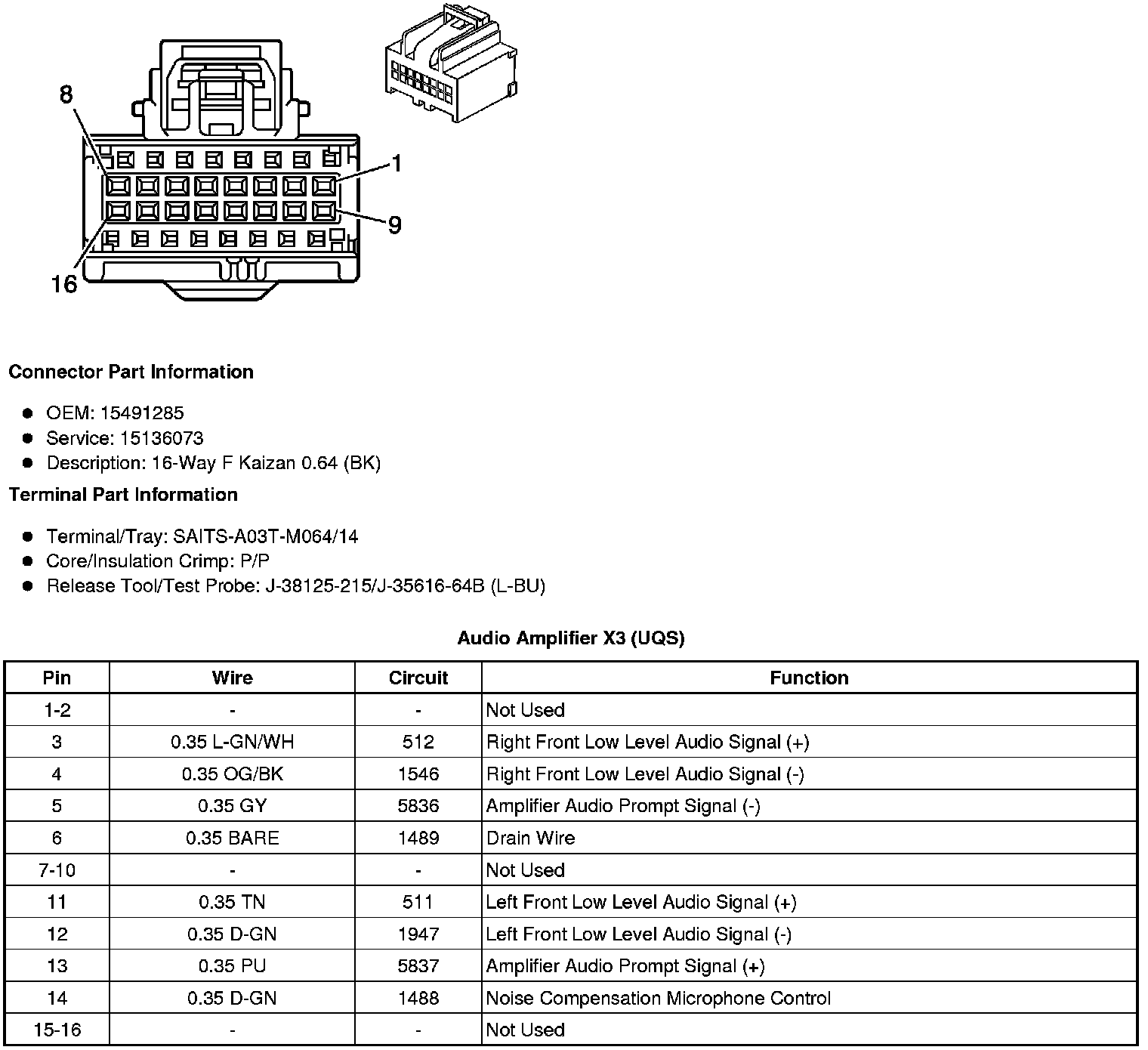

Audio Amplifier X3 (UQS)

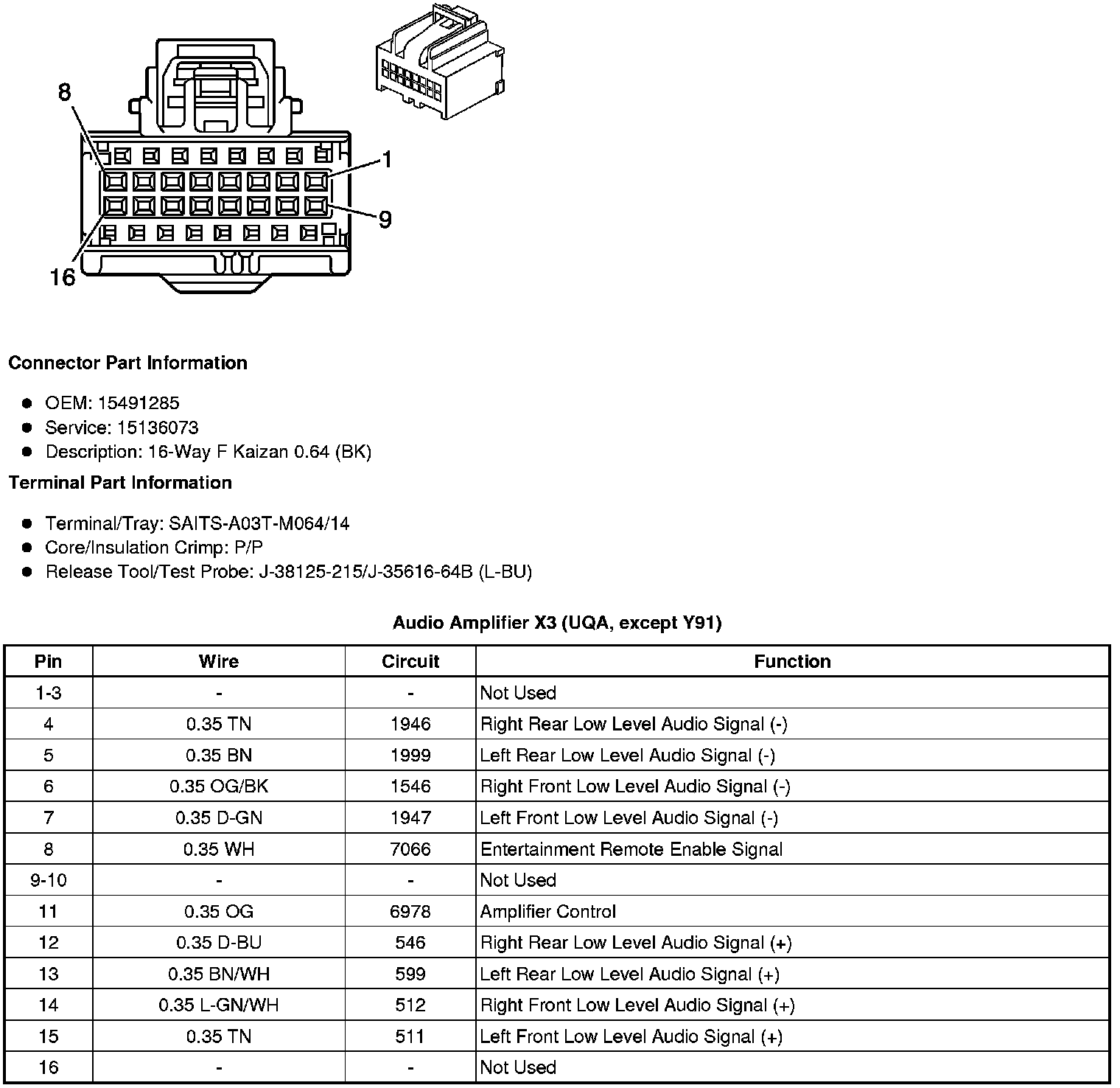

Audio Amplifier X3 (UQA, except Y91)





Audio Amplifier X3 (Y91 with UQA)

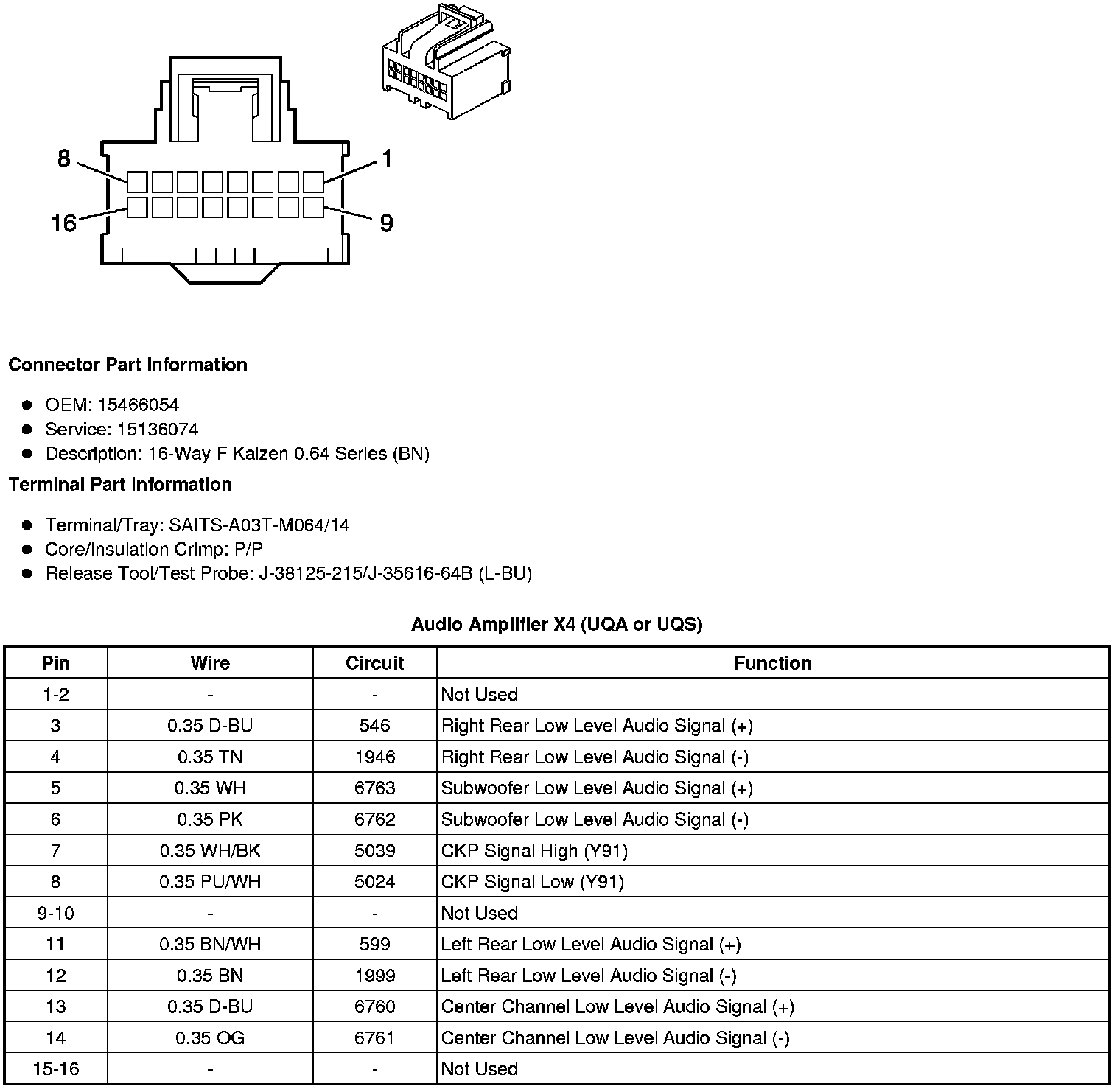

Audio Amplifier X4 (UQA or UQS)
