Collision Avoidance Sensor




Component Connector End Views

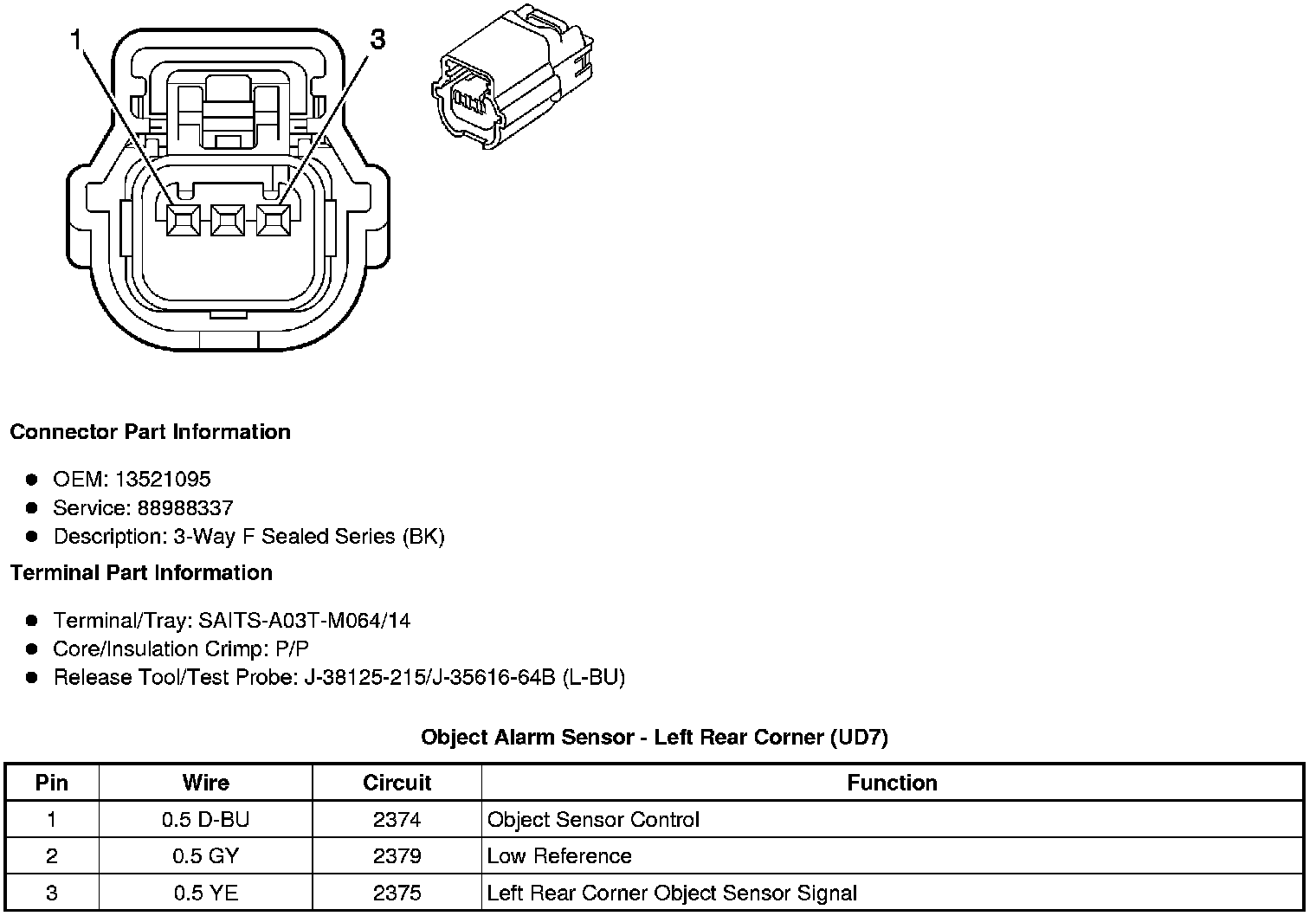

Object Alarm Sensor - Left Rear Corner (UD7)





Object Alarm Sensor - Left Rear Middle (UD7)





Object Alarm Sensor - Right Rear Corner (UD7)





Object Alarm Sensor - Right Rear Middle (UD7)

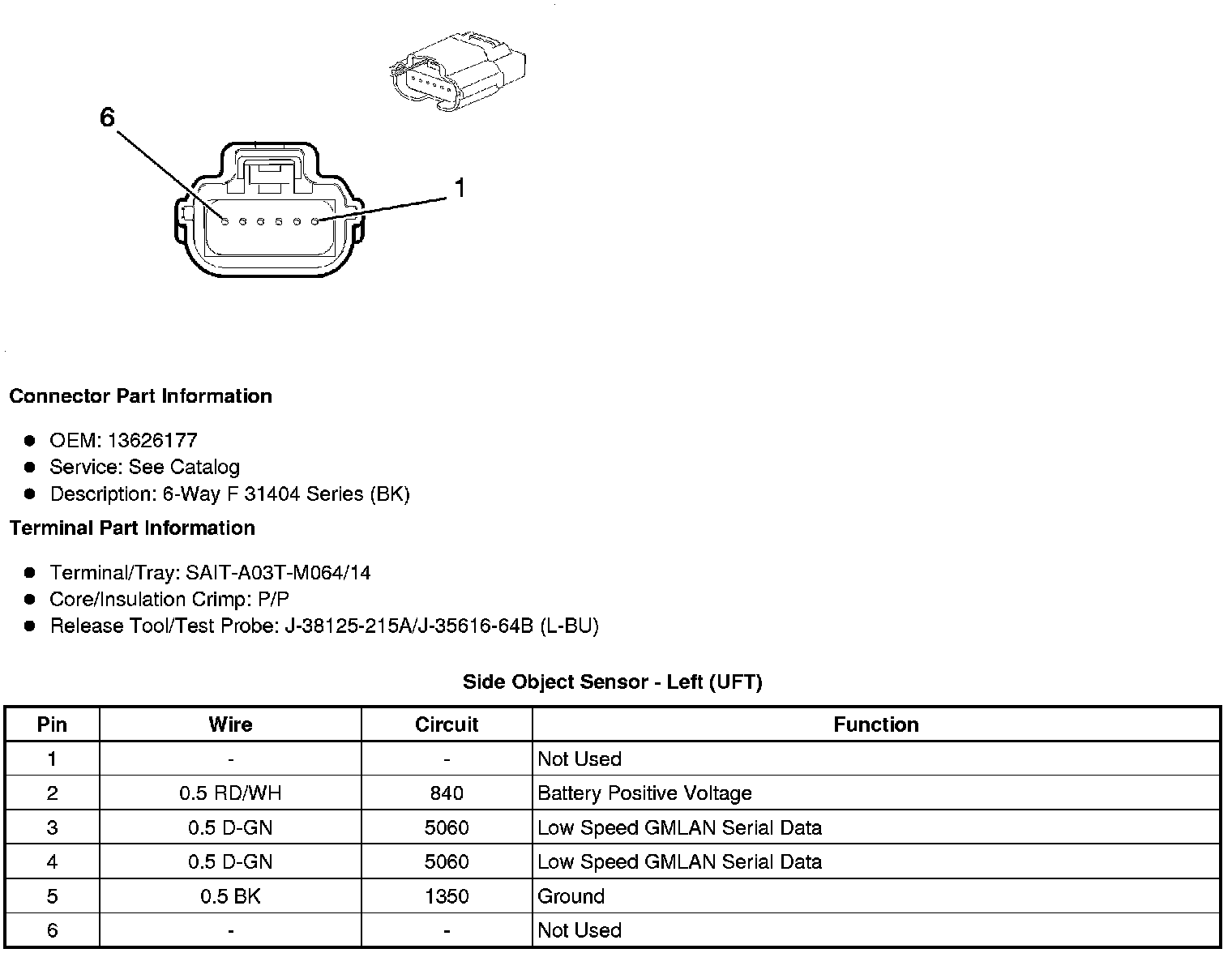

Side Object Sensor - Left (UFT)





Side Object Sensor - Right (UFT)





Liftgate Object Sensor - Left (E61)





Liftgate Object Sensor - Right (E61)
