Yaw Rate Sensor




Component Connector End Views

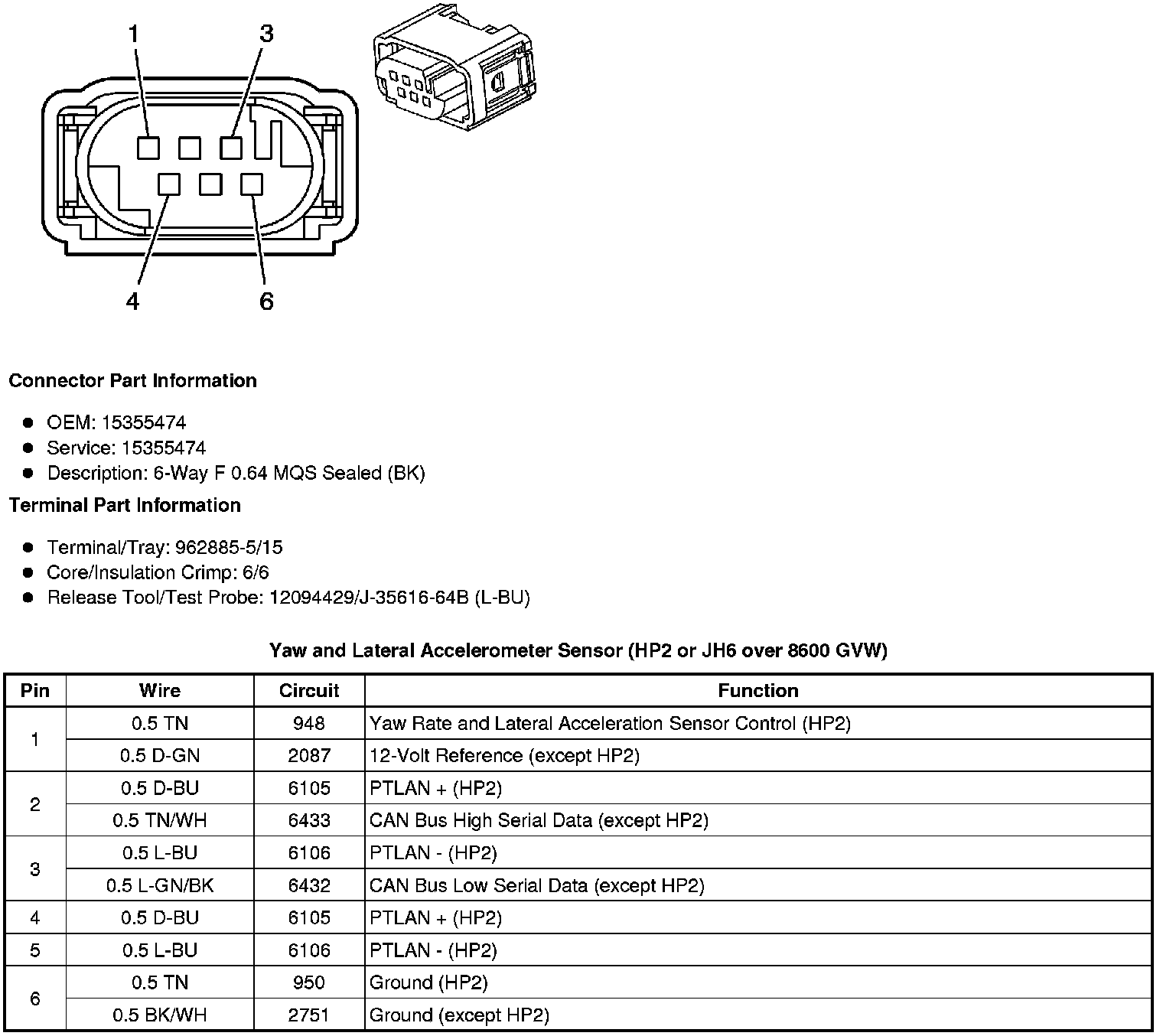

Yaw and Lateral Accelerometer Sensor (HP2 or JH6 over 8600 GVW)

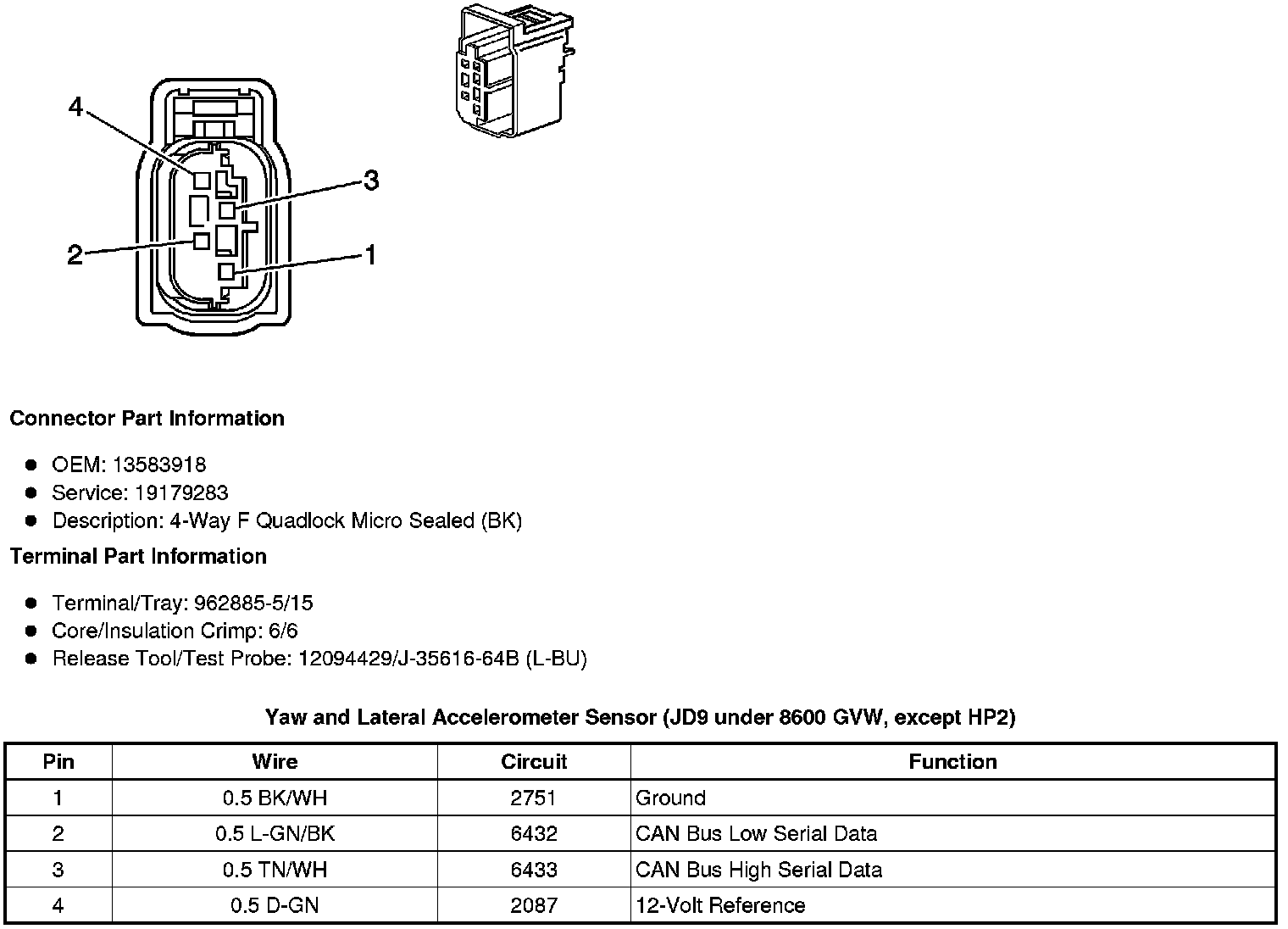

Yaw and Lateral Accelerometer Sensor (JD9 under 8600 GVW, except HP2)
