Power Seat Switch




Component Connector End Views

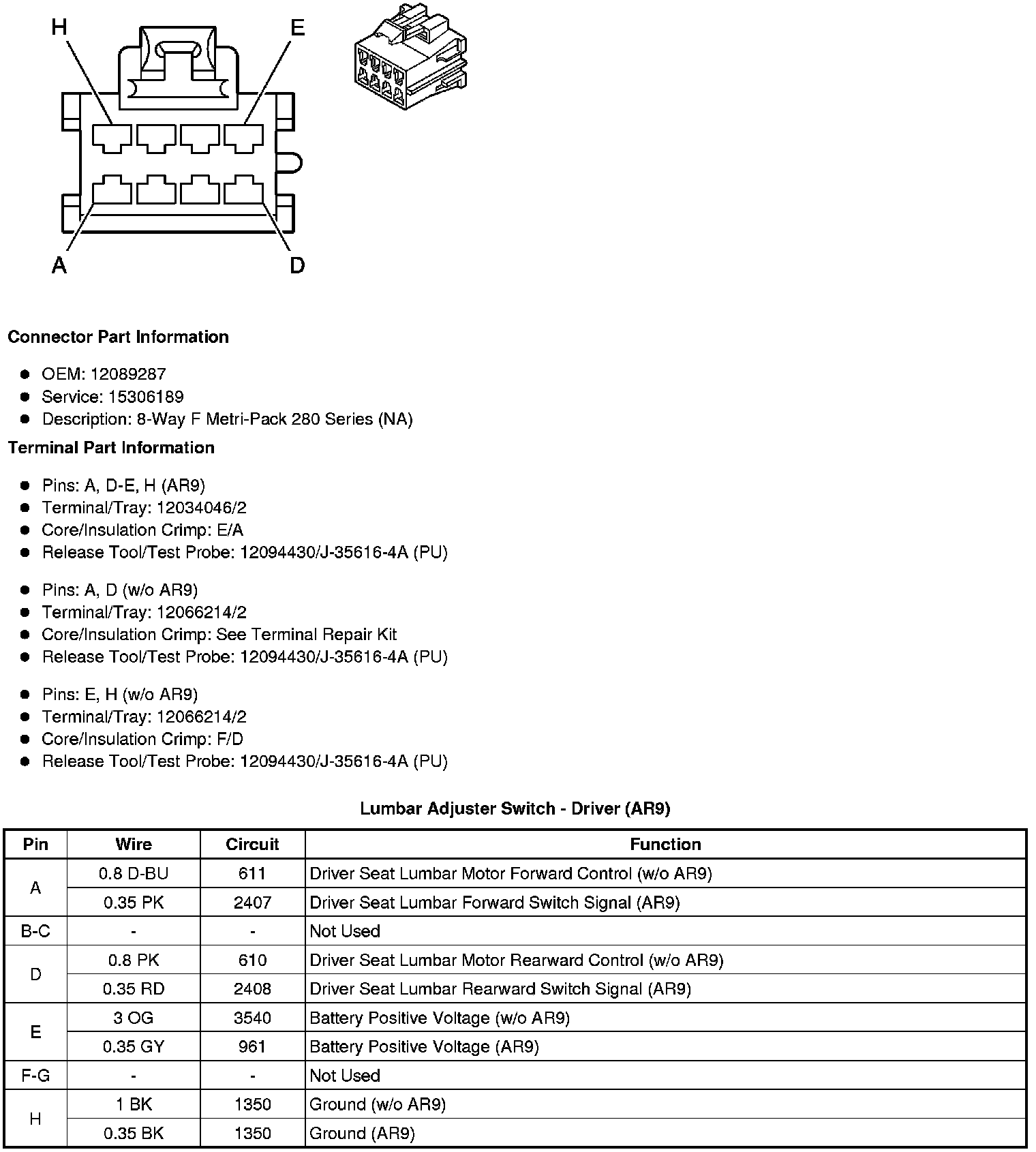

Lumbar Adjuster Switch - Driver (AR9)

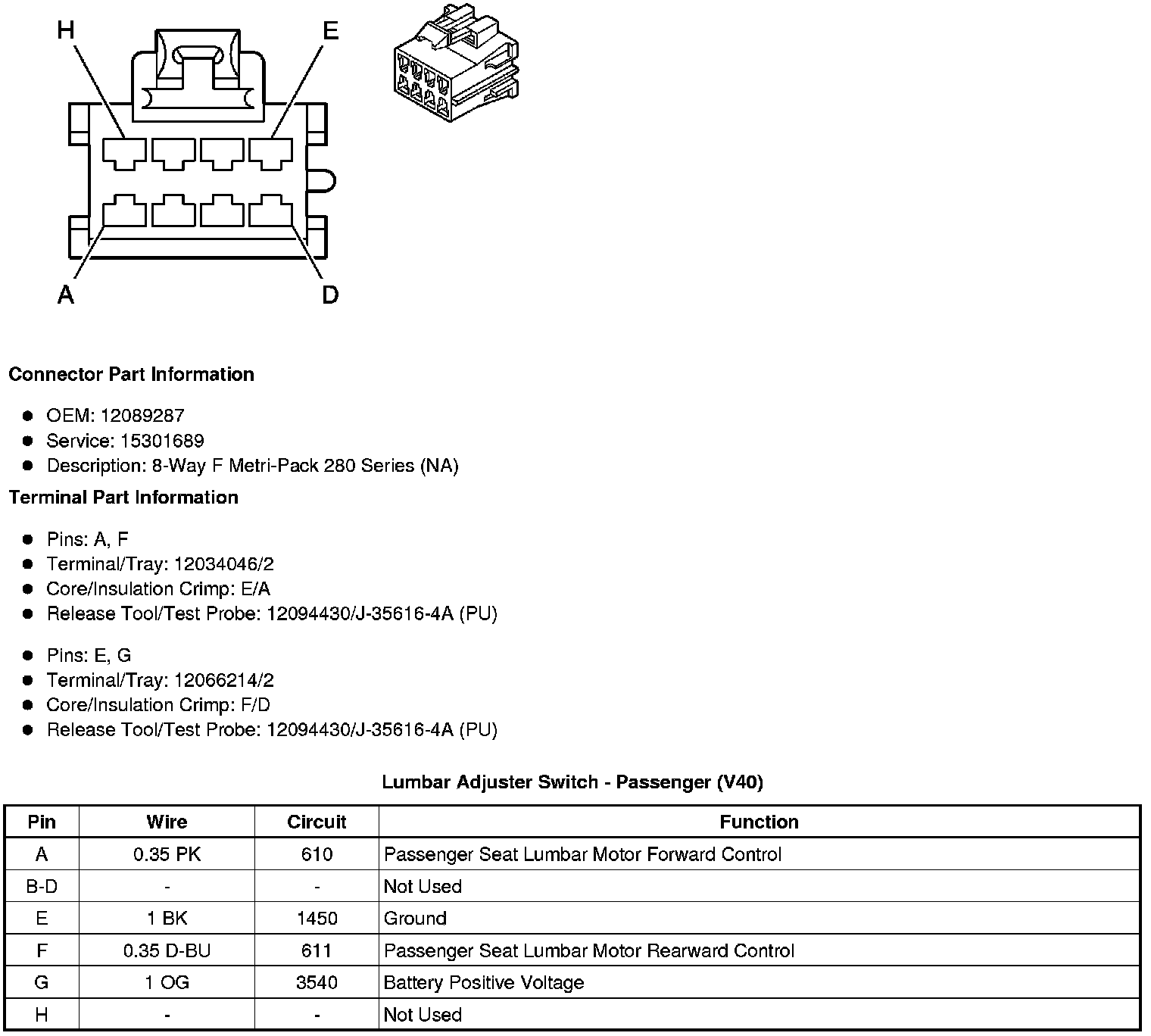

Lumbar Adjuster Switch - Passenger (V40)

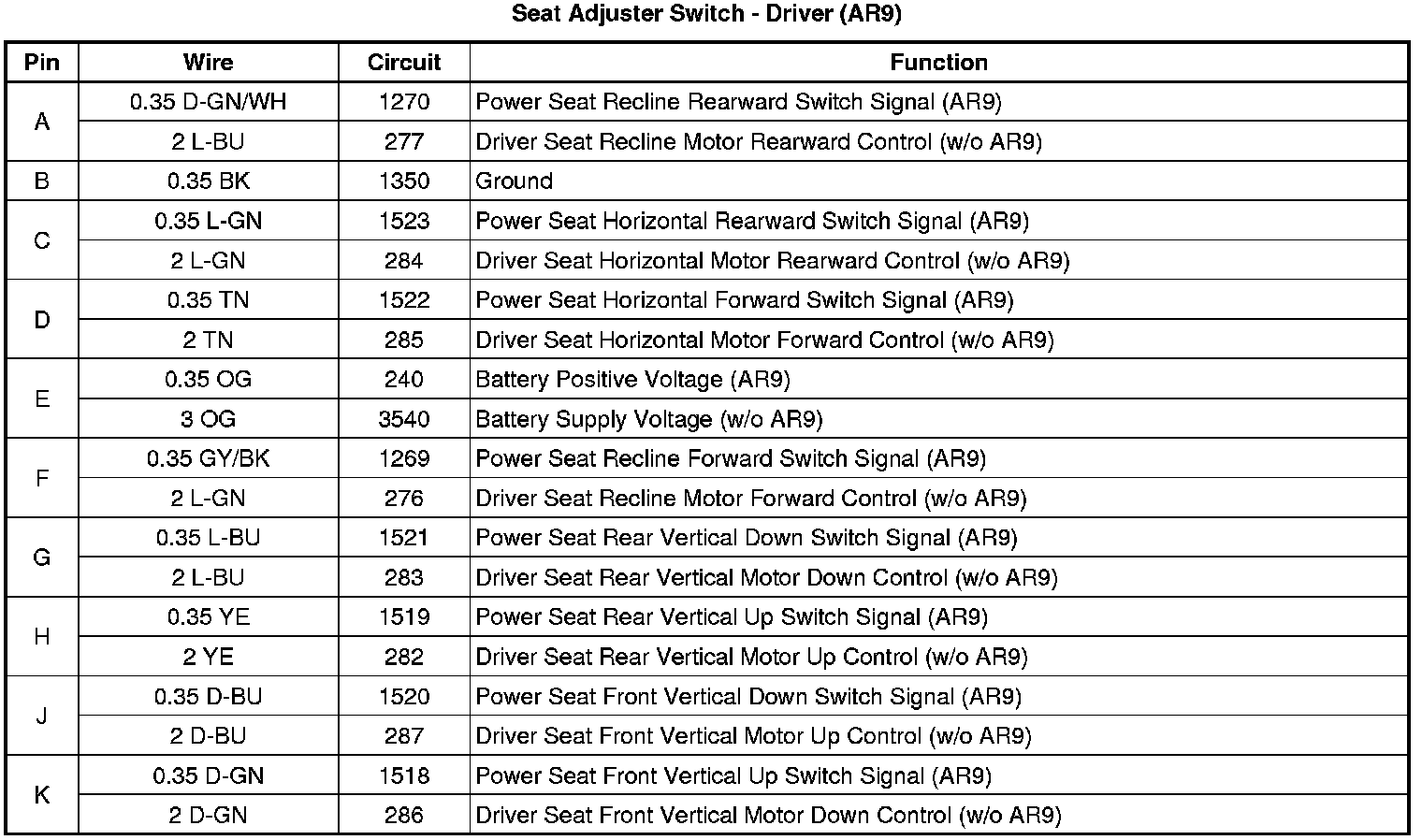

Seat Adjuster Switch - Driver (AR9)

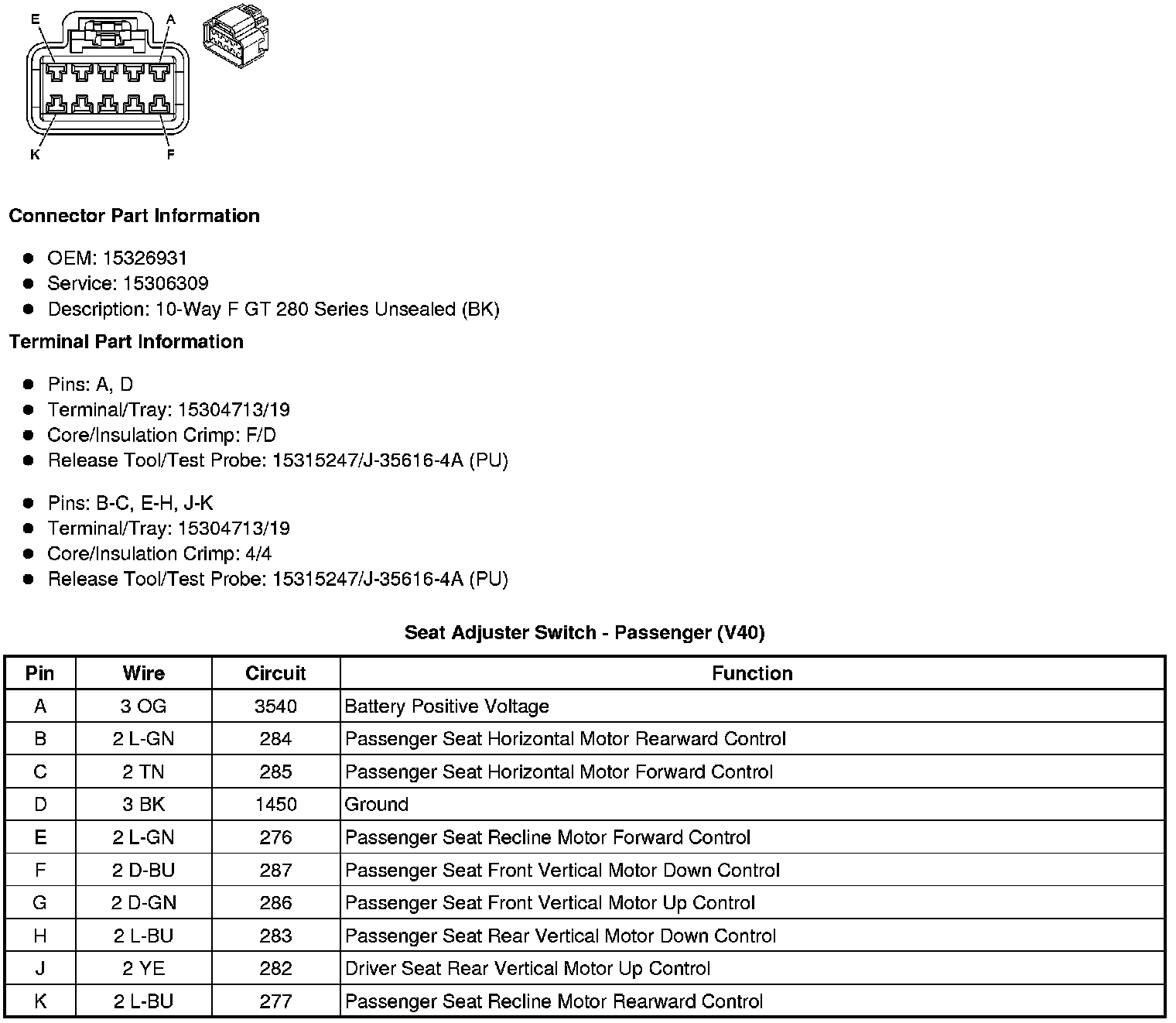

Seat Adjuster Switch - Passenger (V40)
