Seat Temperature Element




Component Connector End Views

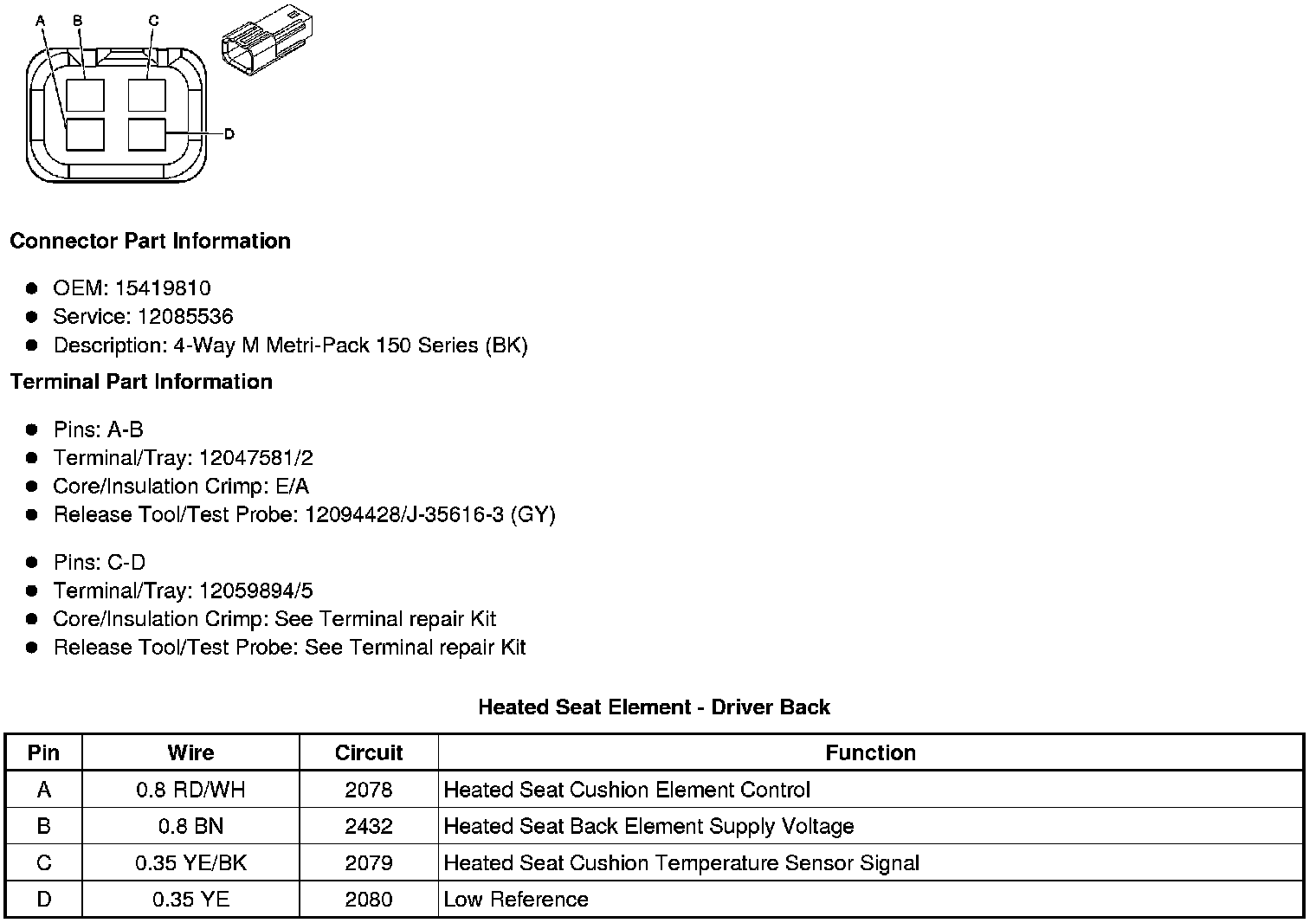

Heated Seat Element - Driver Back






Heated Seat Element - Driver Cushion






Heated Seat Element - Passenger Back (w/Heat)






Heated Seat Element - Passenger Cushion
