Air Bag Control Module: Service and Repair

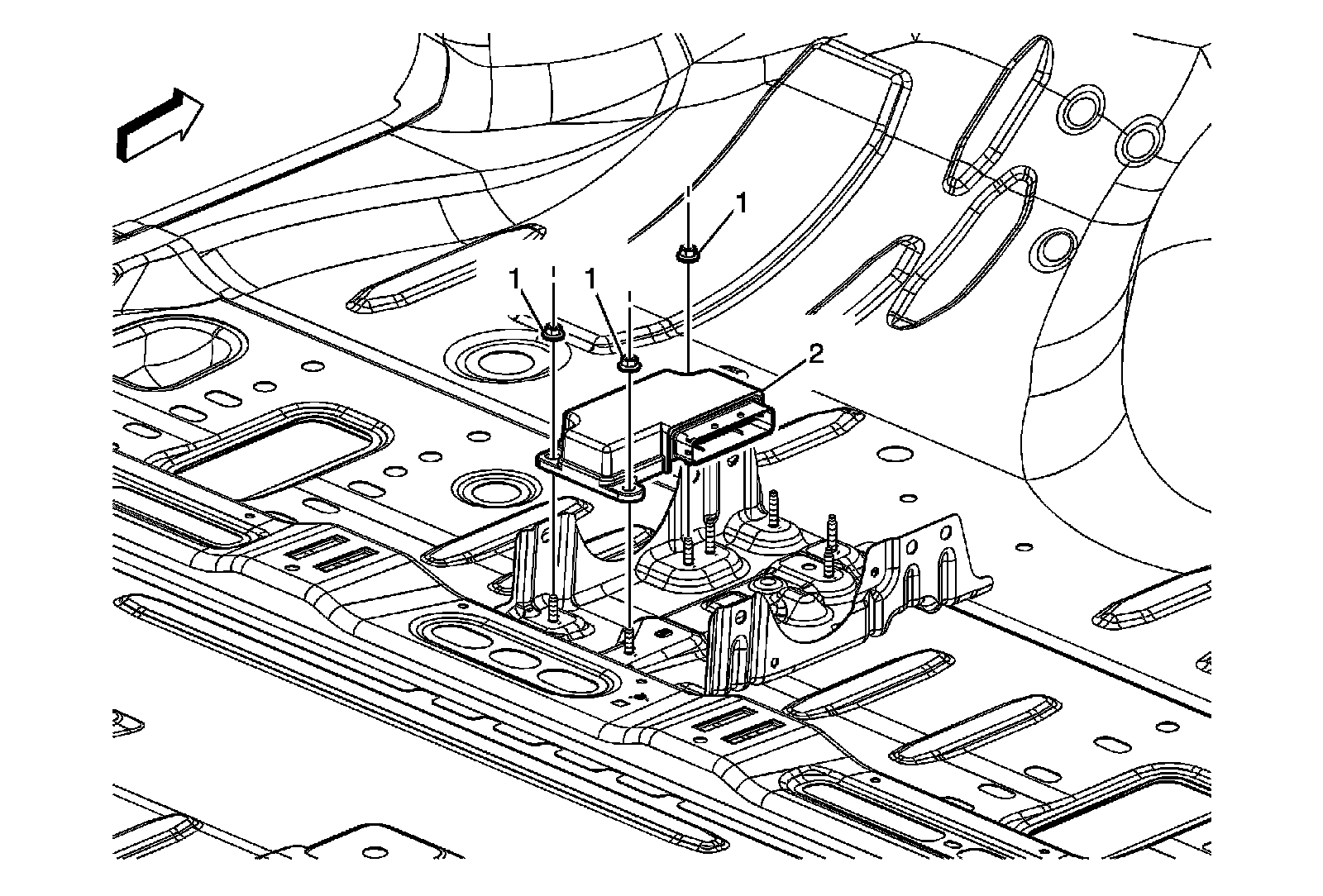

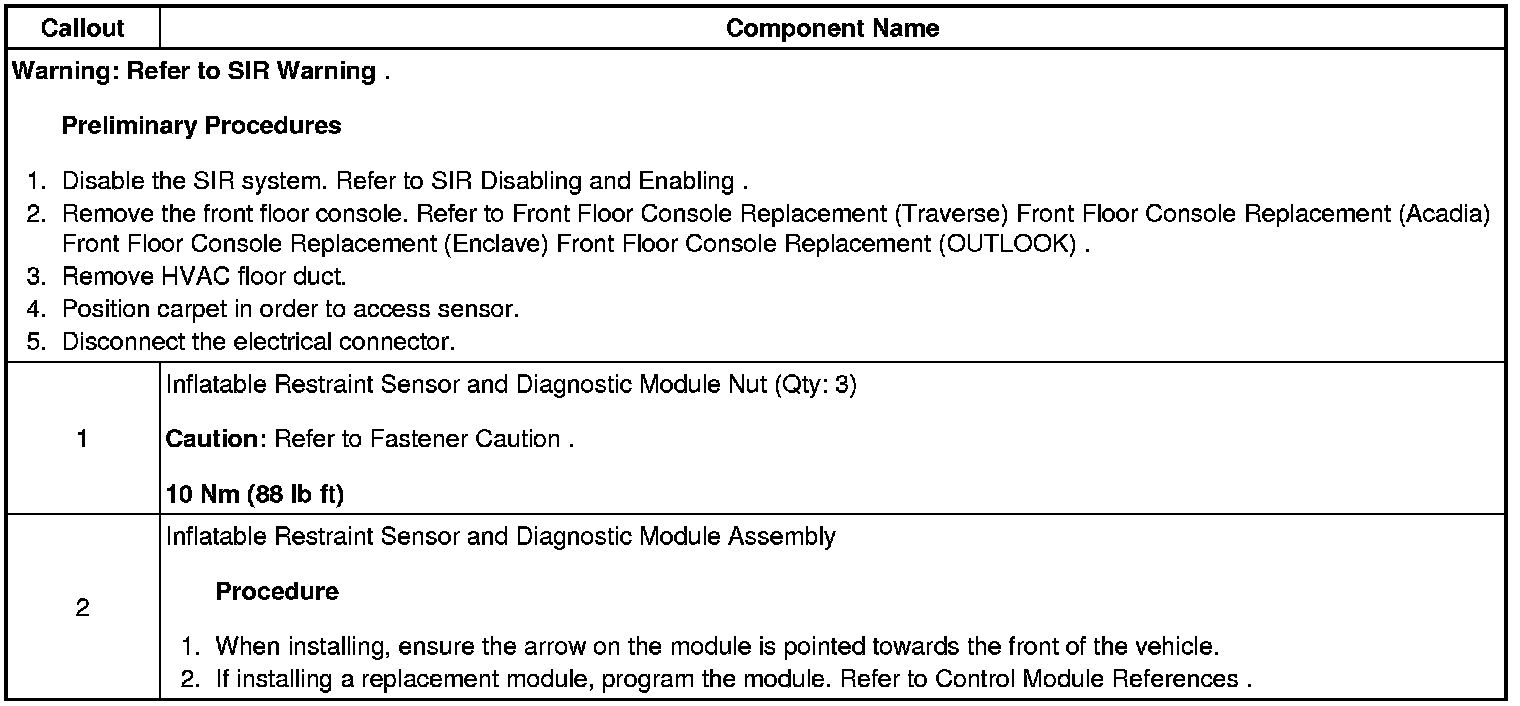

Inflatable Restraint Sensing and Diagnostic Module Replacement
