Front Seat Lumbar Support Replacement

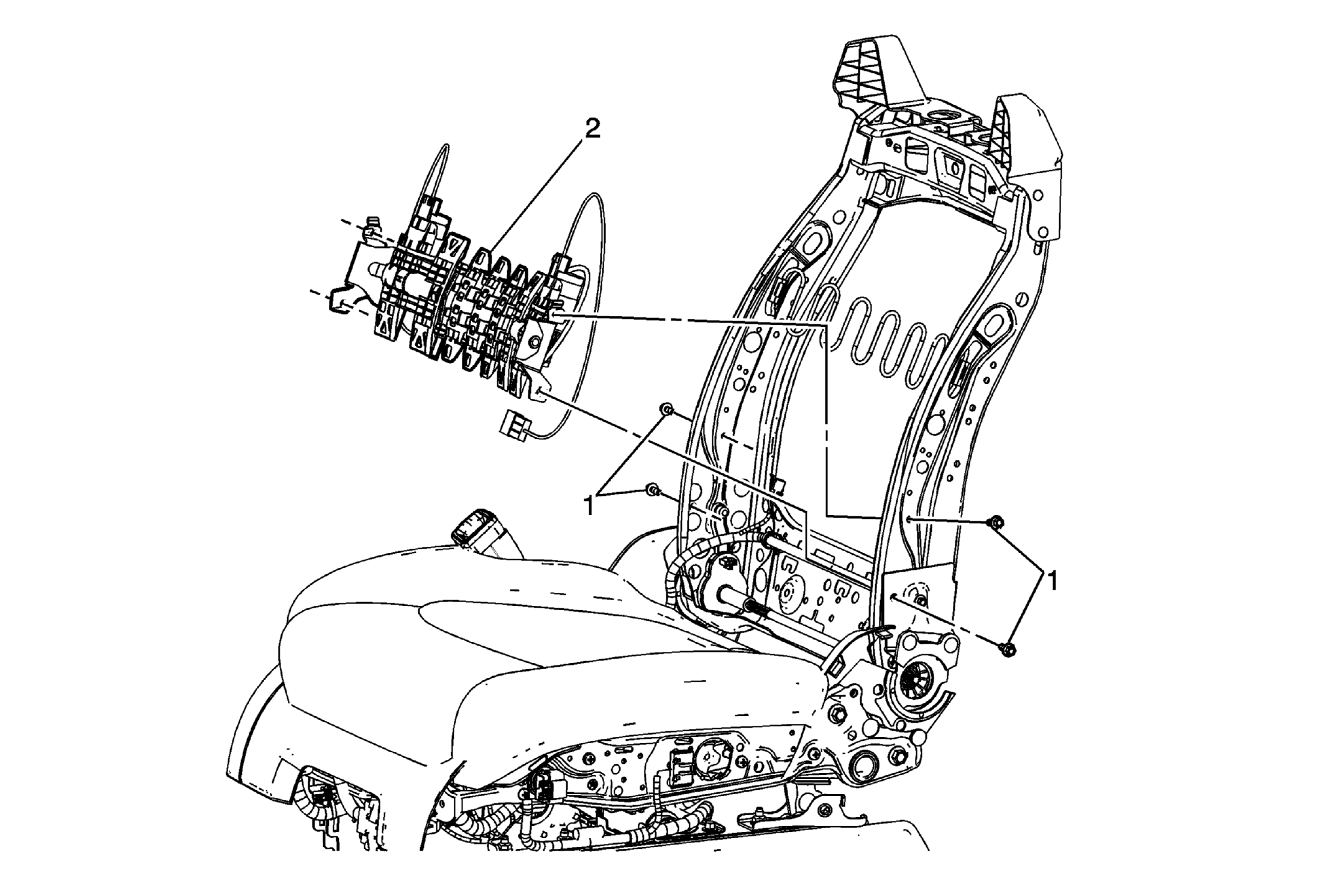

Fig 1: View Of Front Seat Lumbar Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat back cushion cover j-clips and reposition the seat back cushion cover to gain access to the lumbar support and bolts.
1	Front Seat Lumbar Assembly Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Front Seat Lumbar Assembly Procedure: Disconnect the electrical connector.
