Antilock Brake System Schematics

Fig 1: Module Power & Ground, Subsystem References Circuit Schematic
GM2077951Courtesy of GENERAL MOTORS CORP.

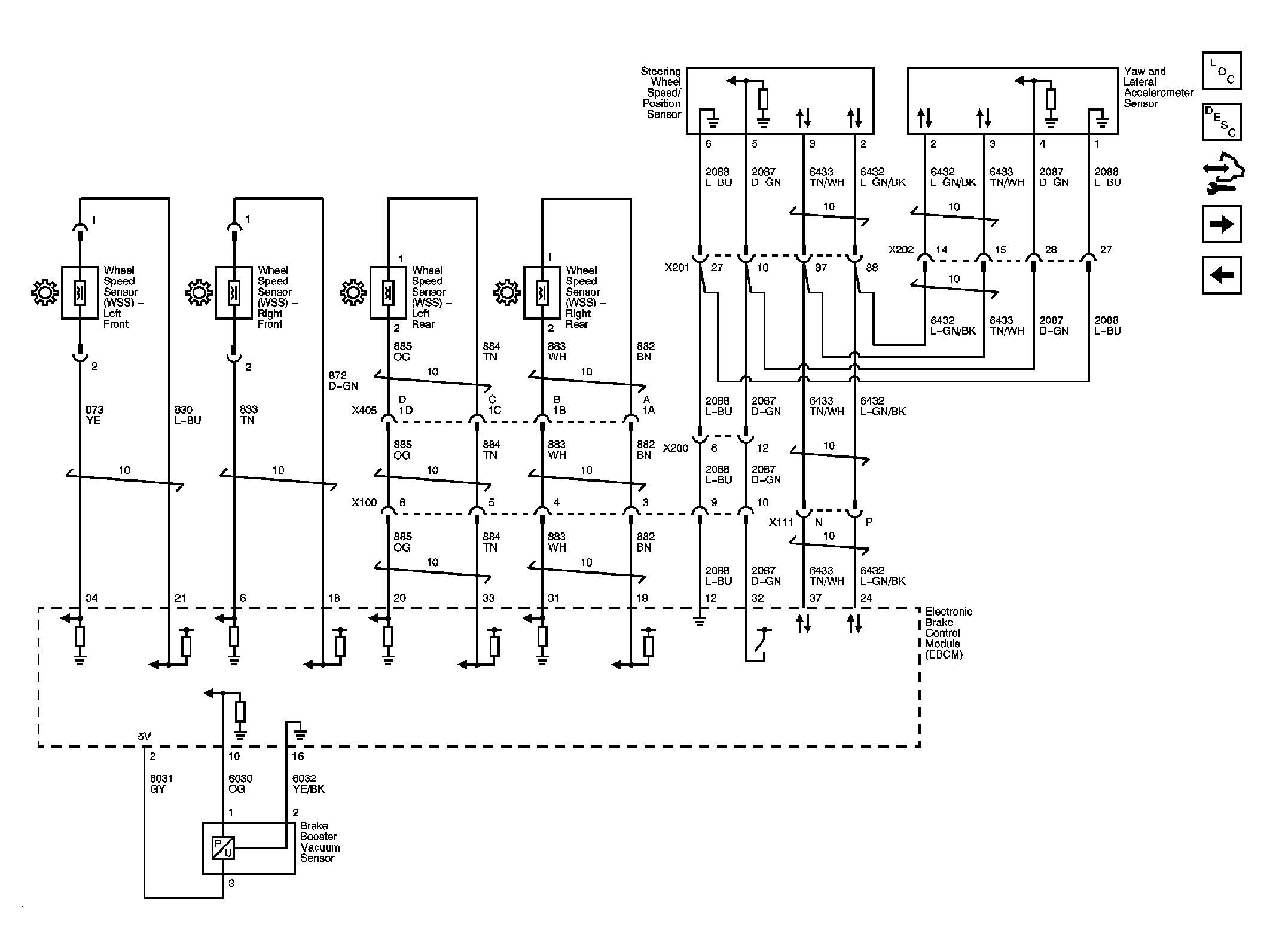

Fig 2: Sensors Circuit Schematic
GM2077955Courtesy of GENERAL MOTORS CORP.
Fig 3: TCS Control and Indicators Circuit Schematic
GM2077960Courtesy of GENERAL MOTORS CORP.
