Driver or Passenger Seat Side Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

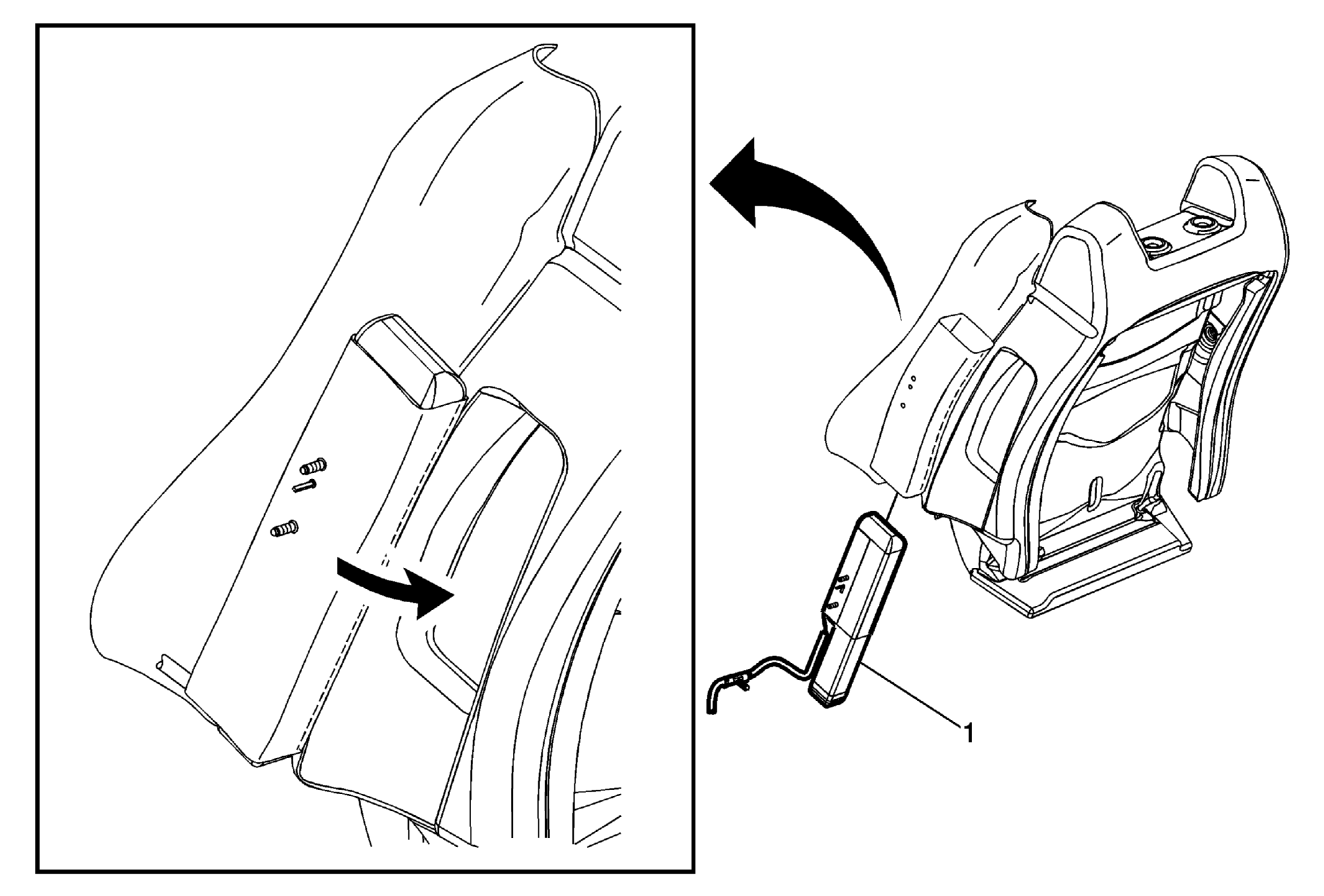

Fig 1: Locating Side Inflatable Restraint Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. WARNING: Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury. Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
1	Side Impact Inflatable Restraint Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 5 N.m (44 lb in)
2	Inflatable Restraint Module Assembly Procedure Unclip the side impact module wiring harness from under the seat. Disconnect the electrical connector. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping . When replacing the inflatable restraint module, ensure the wire is secured inboard of the recline mechanism by utilizing the seat trim hook.

Callout

Component Name

WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

The seat cushion frame
The seat recliner, if equipped
The seat adjuster
The seat back frame

Failure to do so may cause future personal injury.

WARNING: Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury.

Preliminary Procedure

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .

Side Impact Inflatable Restraint Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 5 N.m (44 lb in)

Inflatable Restraint Module Assembly

Procedure

Unclip the side impact module wiring harness from under the seat.
Disconnect the electrical connector.
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
When replacing the inflatable restraint module, ensure the wire is secured inboard of the recline mechanism by utilizing the seat trim hook.
