Steering Wheel Inflatable Restraint Module Coil Replacement

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

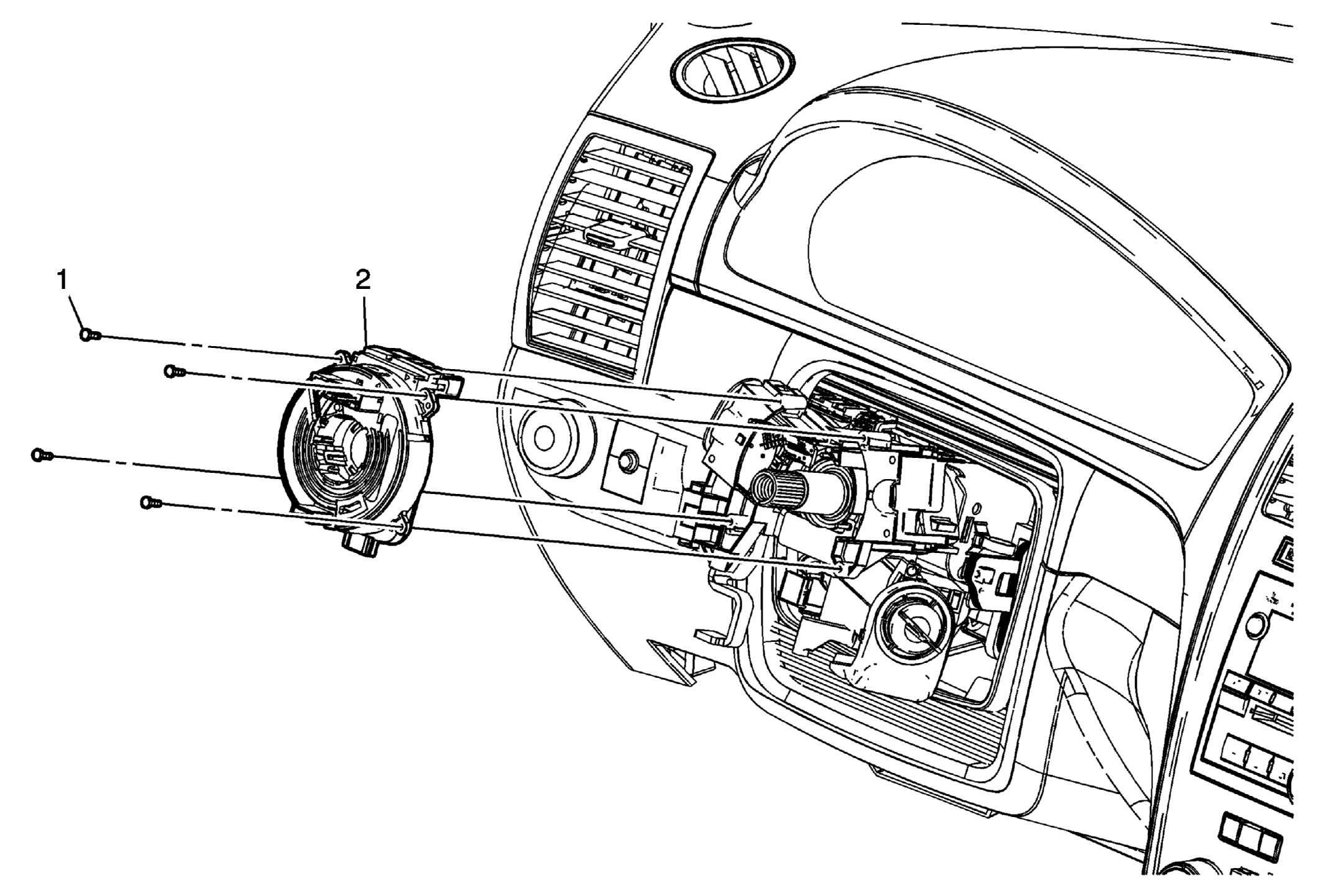

Fig 1: View Of Inflatable Restraint Steering Wheel Module Coil

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the steering wheel. Refer to Steering Wheel Replacement . Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement . Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement . Remove the ignition lock cylinder opening trim cover. Refer to Ignition Lock Cylinder Opening Trim Cover Replacement .
1	Inflatable Restraint Steering Wheel Module Coil Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in).
2	Inflatable Restraint Steering Wheel Module Coil

Callout

Component Name

Preliminary Procedures

Remove the steering wheel. Refer to Steering Wheel Replacement .
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
Remove the ignition lock cylinder opening trim cover. Refer to Ignition Lock Cylinder Opening Trim Cover Replacement .

Inflatable Restraint Steering Wheel Module Coil Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 3 N.m (27 lb in).

Inflatable Restraint Steering Wheel Module Coil
