Inflatable Restraint Instrument Panel Module Indicator Replacement
WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Acadia) or Instrument Panel Accessory Trim Plate Replacement (Enclave) or Instrument Panel Accessory Trim Plate Replacement (OUTLOOK) or Instrument Panel Accessory Trim Plate Replacement (Traverse) . |
|

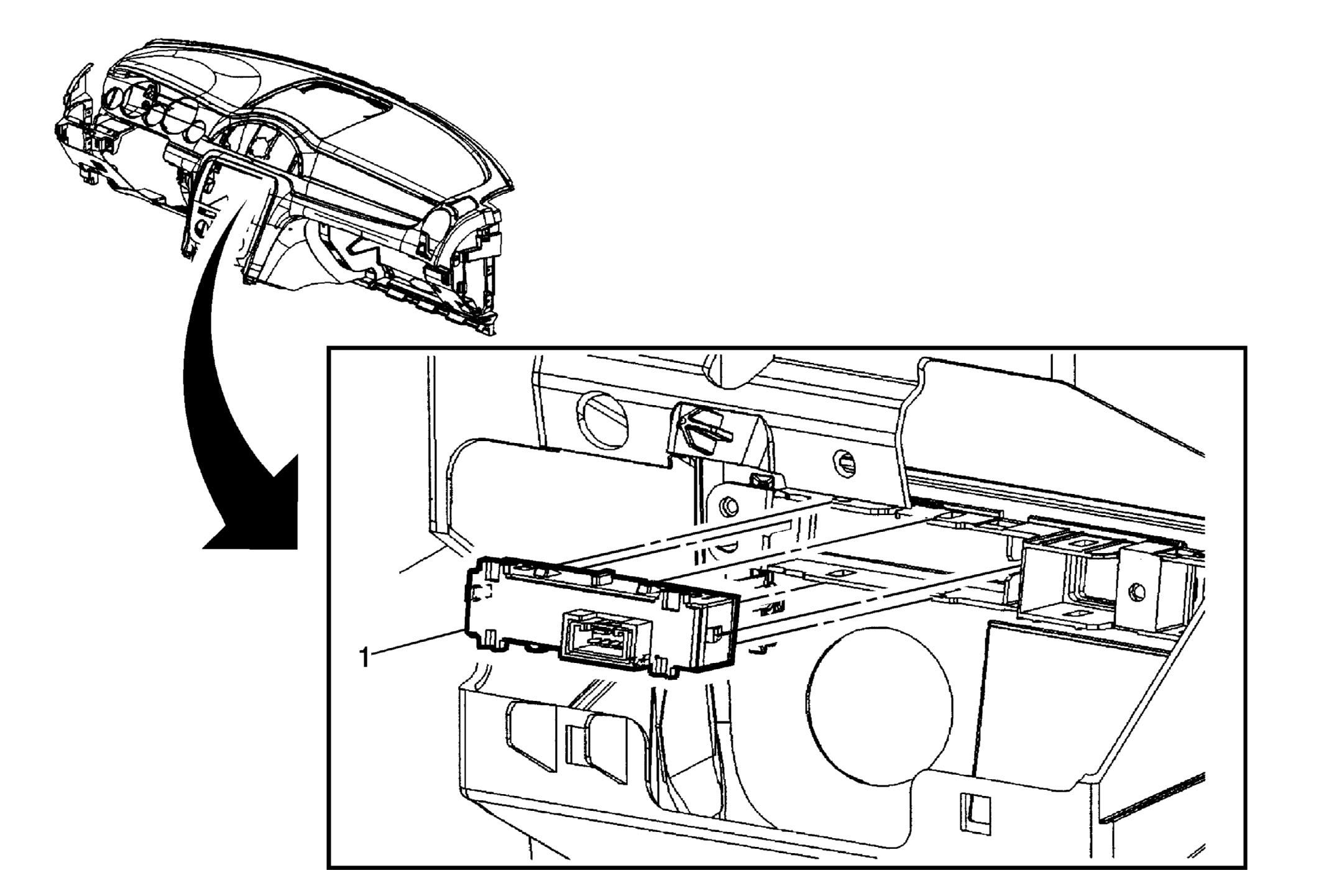

| 1 | Instrument Panel Inflatable Restraint Module Indicator Assembly Procedure: Disconnect the electrical connector. |
