Instrument Panel Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

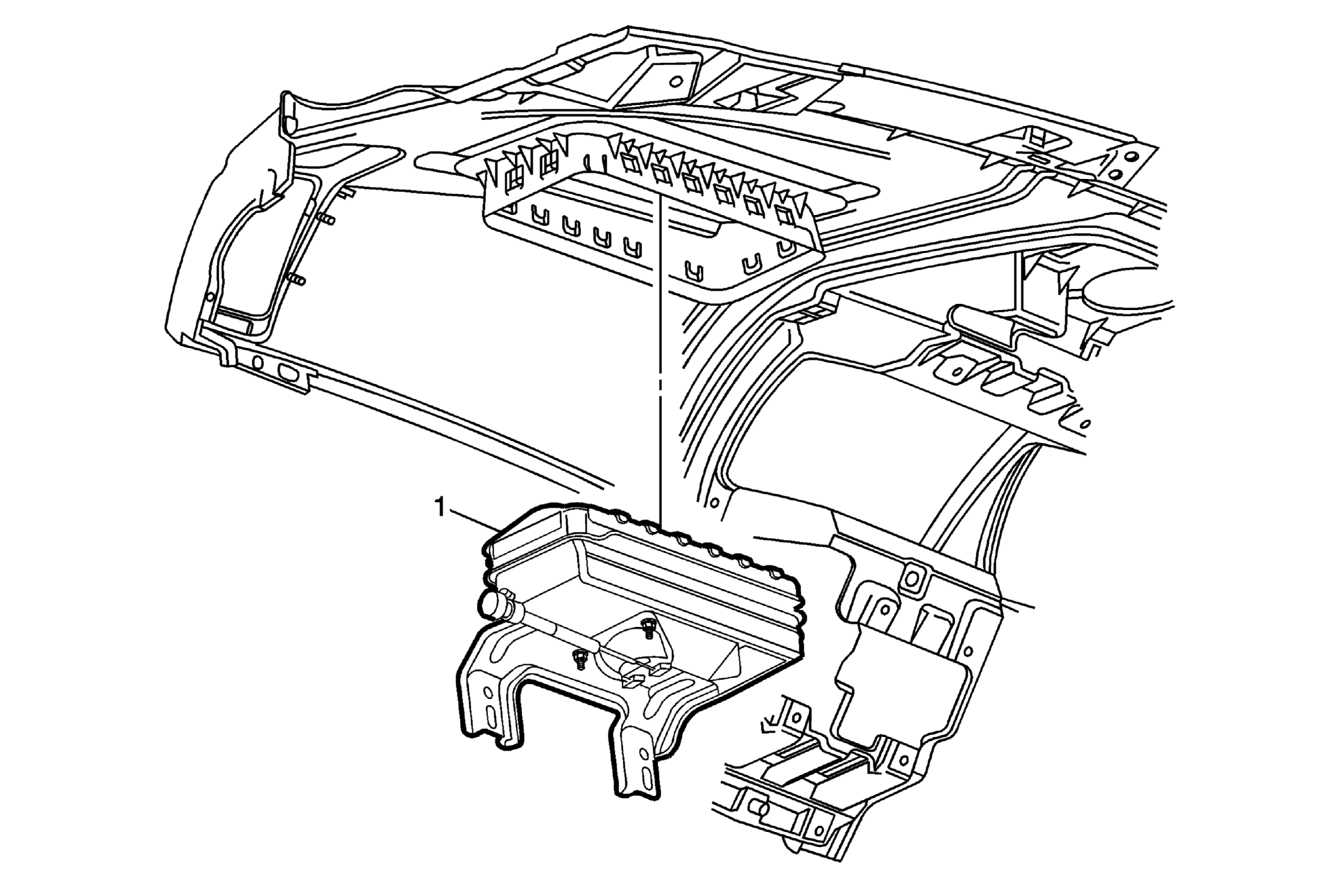

Fig 1: View Of Inflatable Restraint Instrument Panel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement (Acadia w/RPO UV6) or Instrument Panel Trim Pad Replacement (Acadia w/o RPO UV6) or Instrument Panel Trim Pad Replacement (Enclave) or Instrument Panel Trim Pad Replacement (OUTLOOK) or Instrument Panel Trim Pad Replacement (Traverse) .
1	Instrument Panel Inflatable Restraint Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Instrument Panel Inflatable Restraint Module Procedure: Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module, after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
