Glow Plug Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

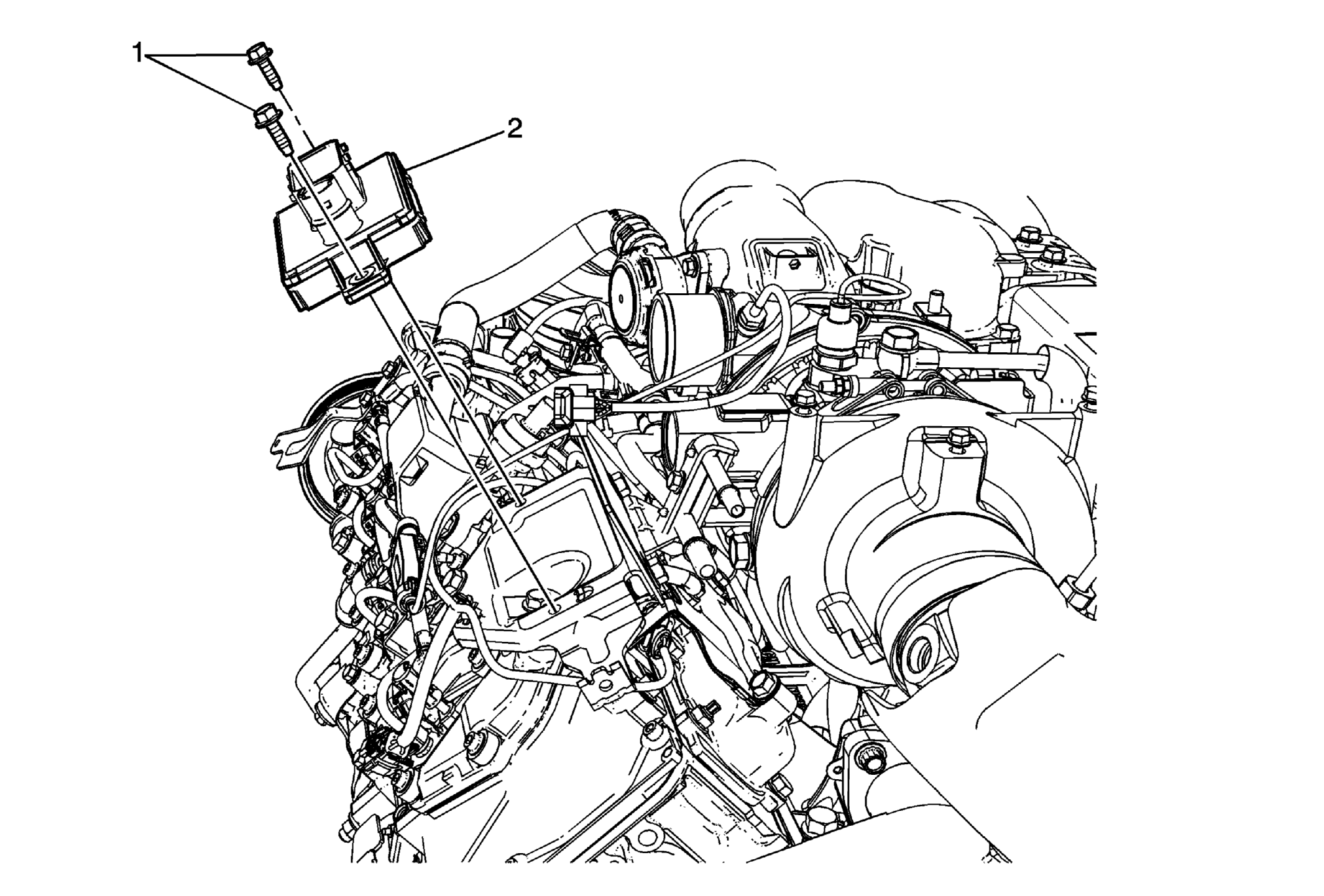

Fig 1: Identifying Glow Plug Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine cover. Refer to Engine Cover Replacement .
1	Glow Plug Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Glow Plug Module Procedure Disconnect the electrical connectors. For setup and programming, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the engine cover. Refer to Engine Cover Replacement .

Glow Plug Module Fastener (Qty: 2)

CAUTION:

Tighten
10 N.m (89 lb in)

Glow Plug Module

Procedure
