Fuel Tank Pressure Sensor: Locations




Wheels/Vehicle Underbody Component Views

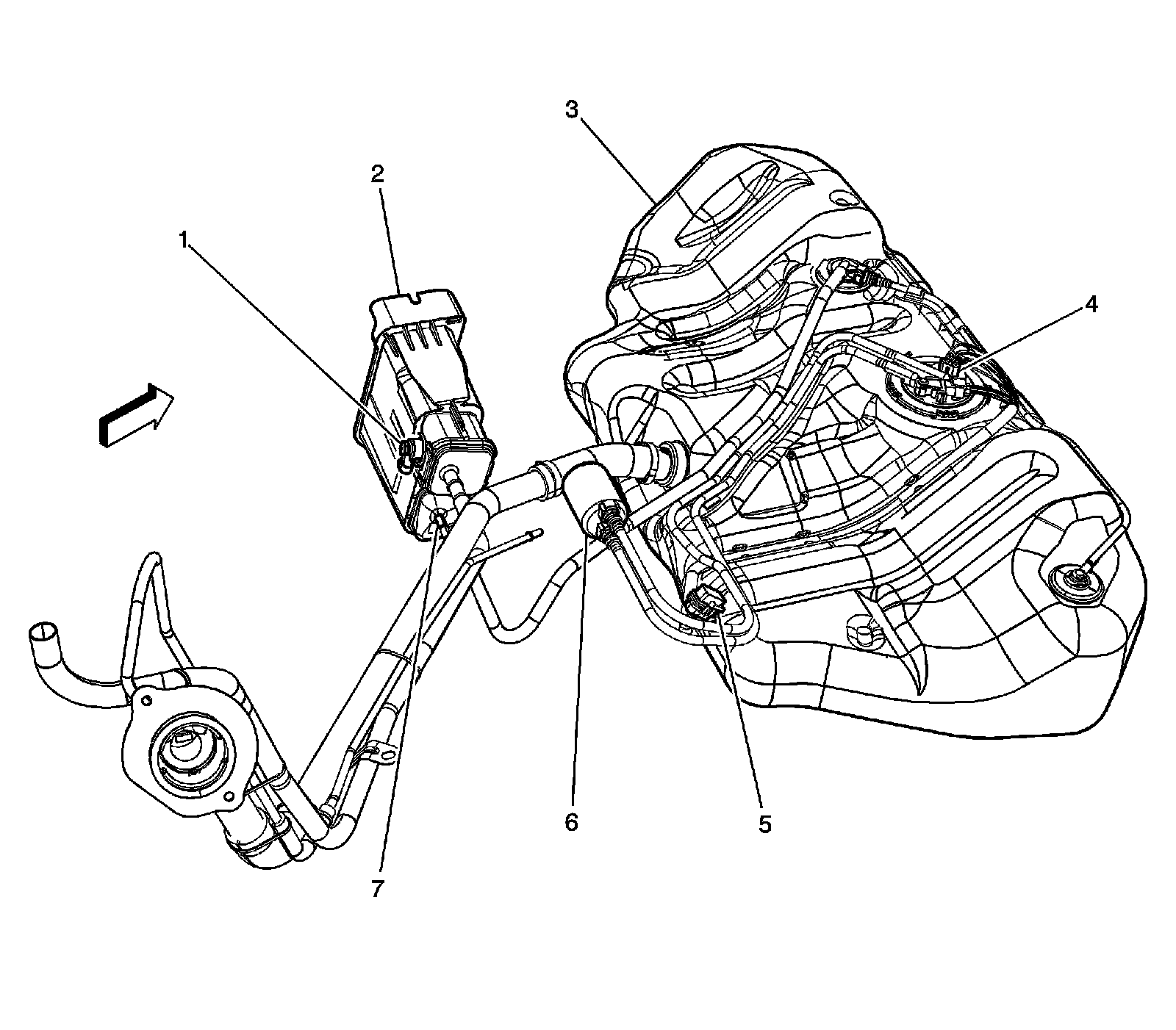

Fuel Tank Components




1 - Fuel Tank Pressure (FTP) Sensor
2 - Evaporative Emission (EVAP) Canister
3 - Fuel Tank
4 - Fuel Pump and Sender Assembly
5 - X305
6 - Fuel Filter
7 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
