Power Window Motor




Component Connector End Views

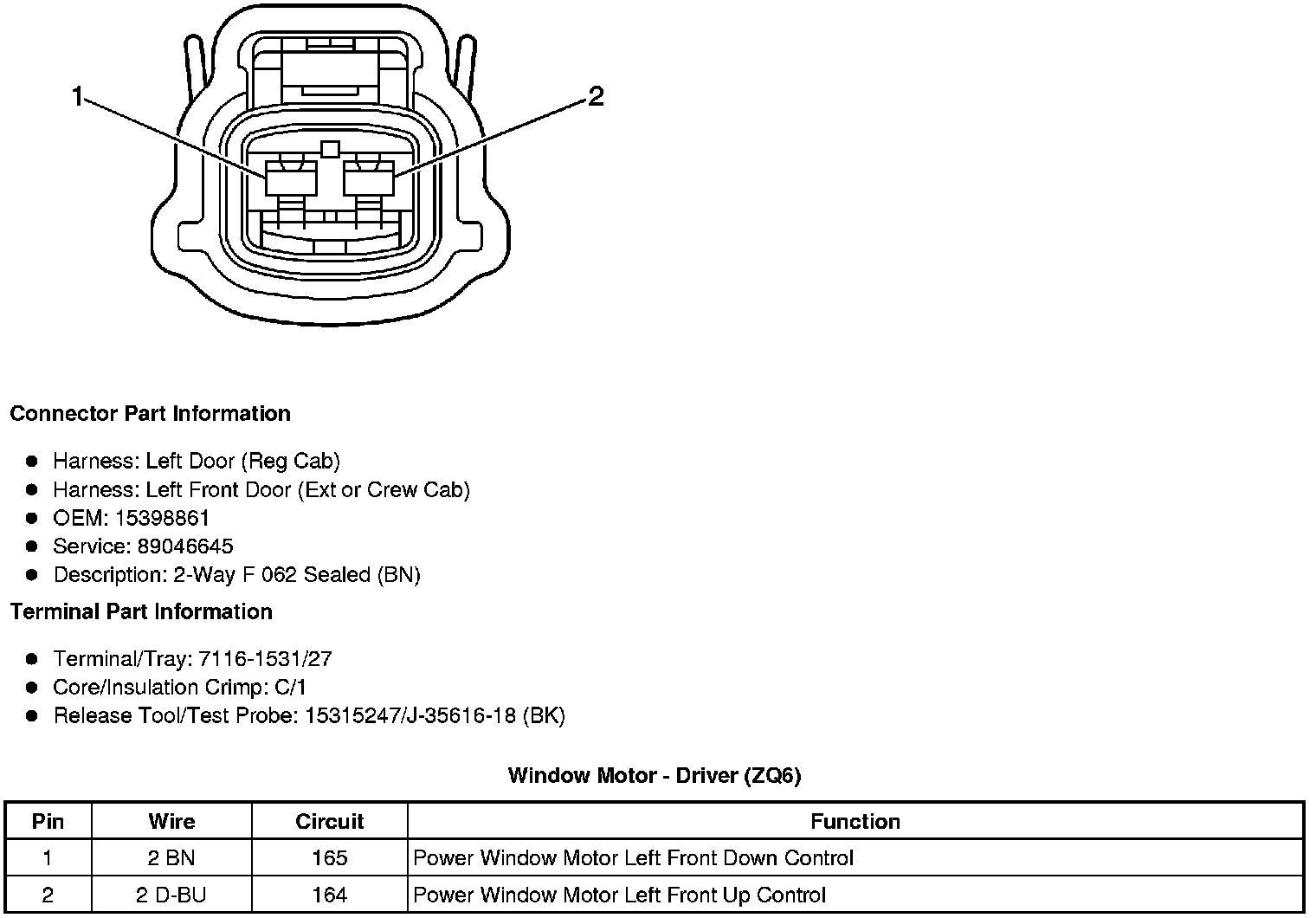

Window Motor - Driver (ZQ6)

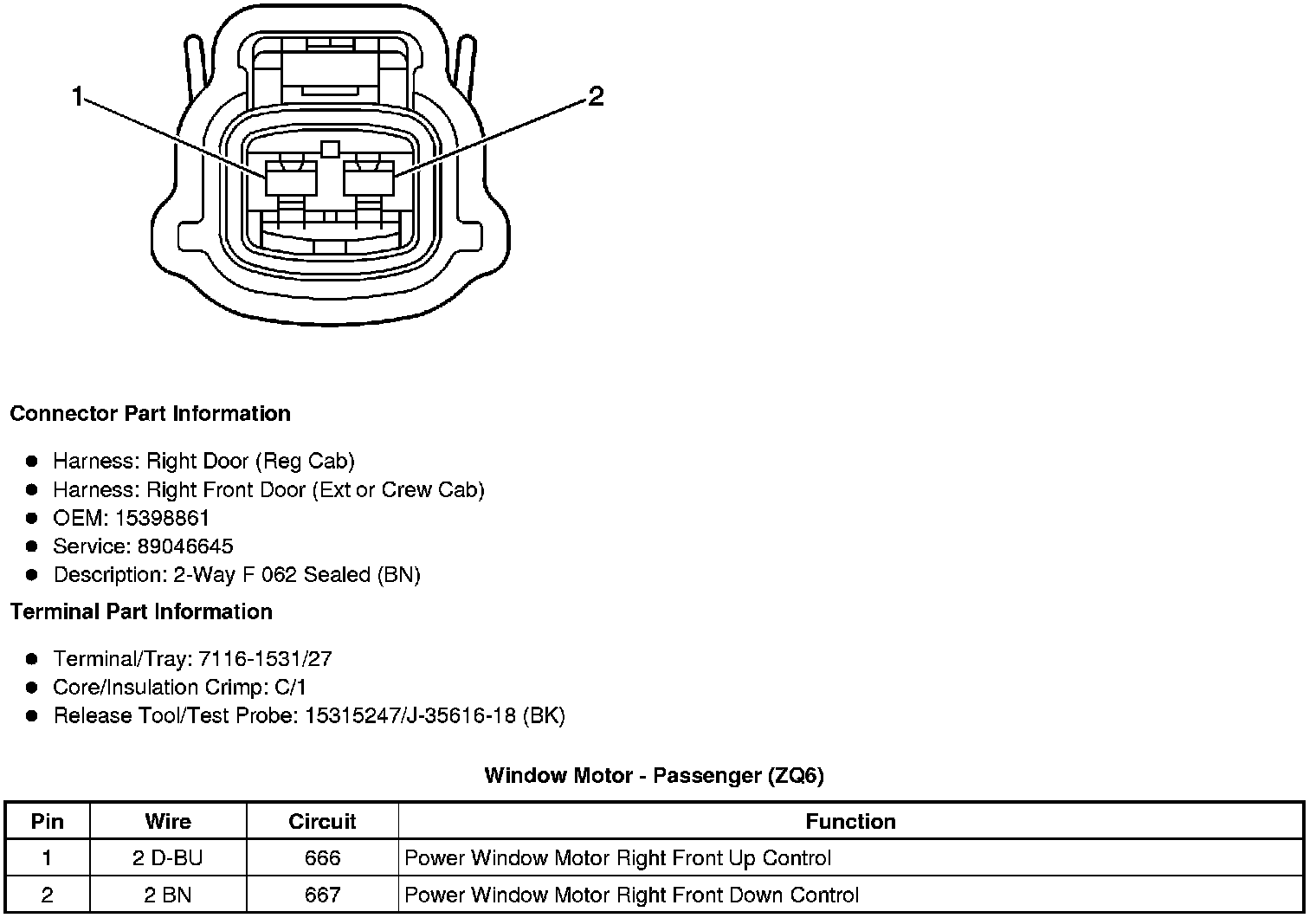

Window Motor - Passenger (ZQ6)

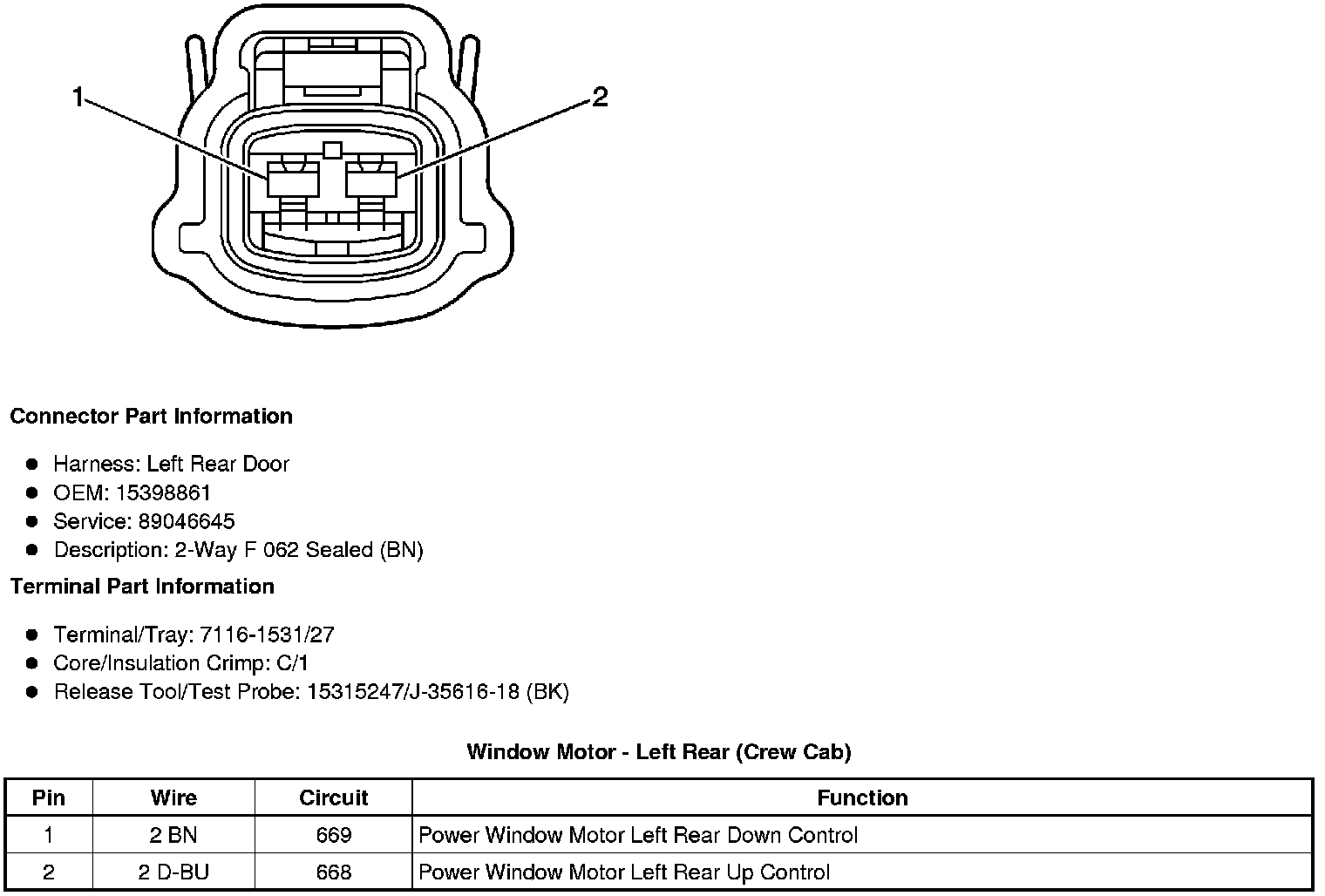

Window Motor - Left Rear (Crew Cab)






Window Motor - Right Rear (Crew Cab)
