Impact Sensor




Component Connector End Views

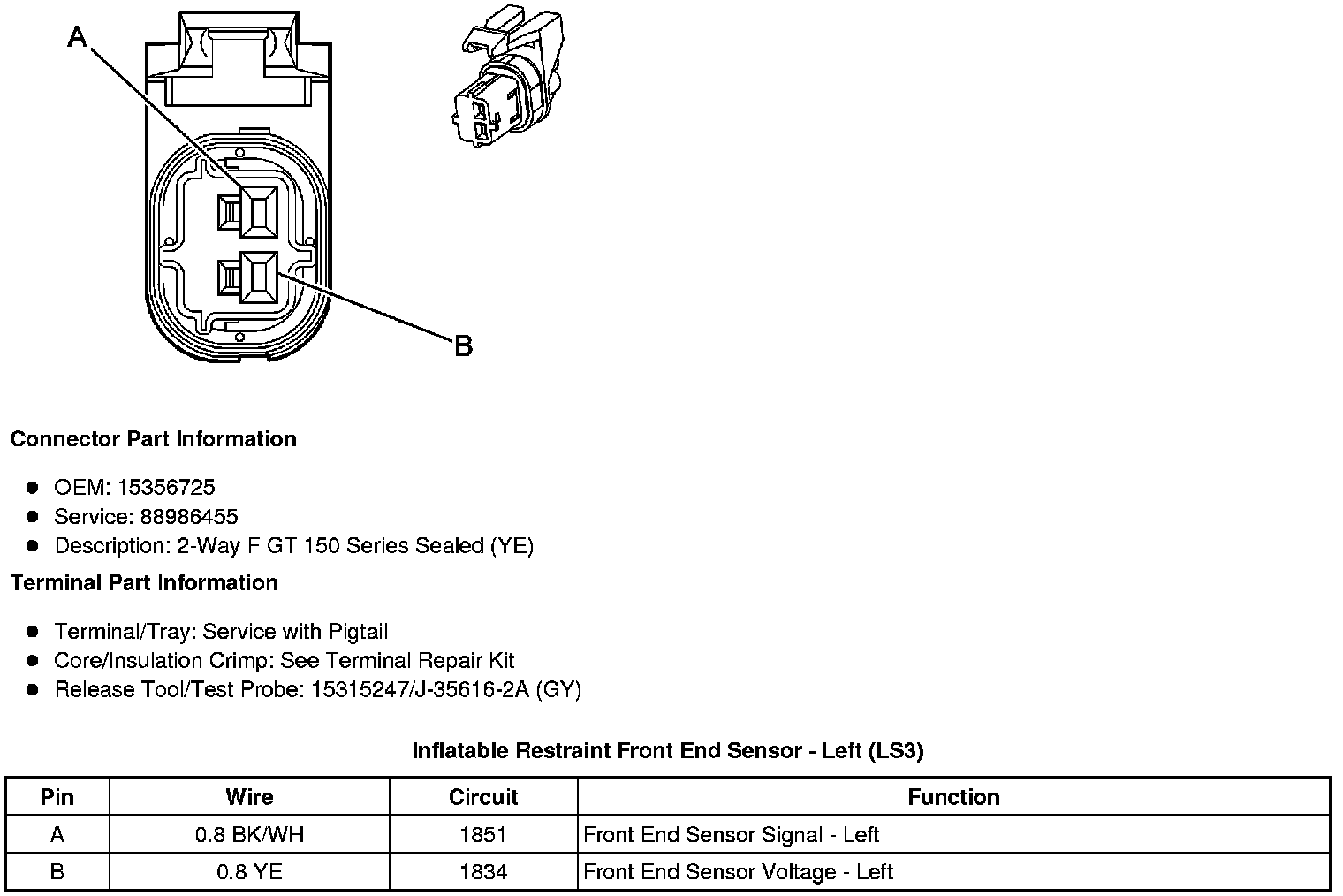

Inflatable Restraint Front End Sensor - Left (LS3)

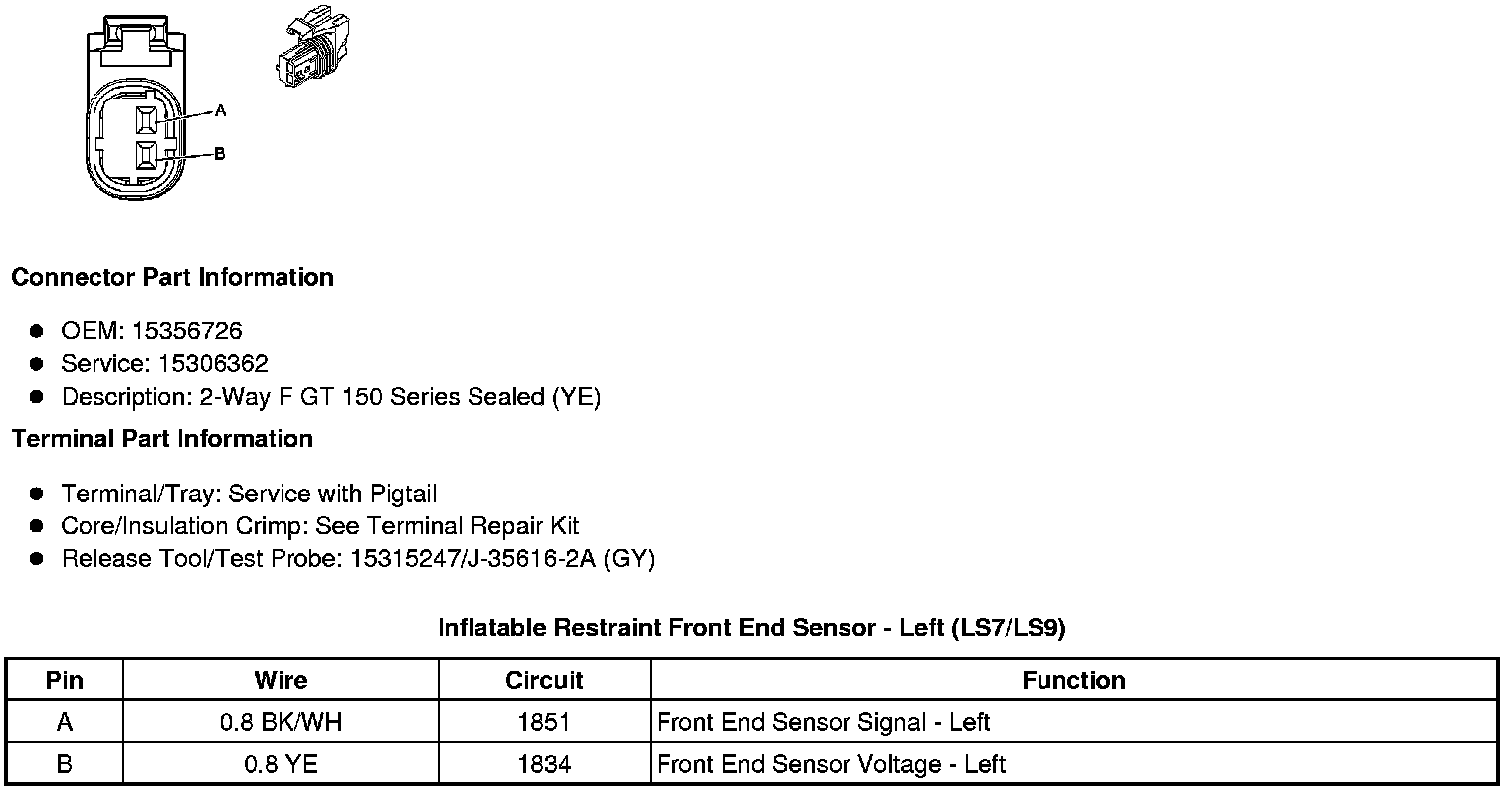

Inflatable Restraint Front End Sensor - Left (LS7/LS9)

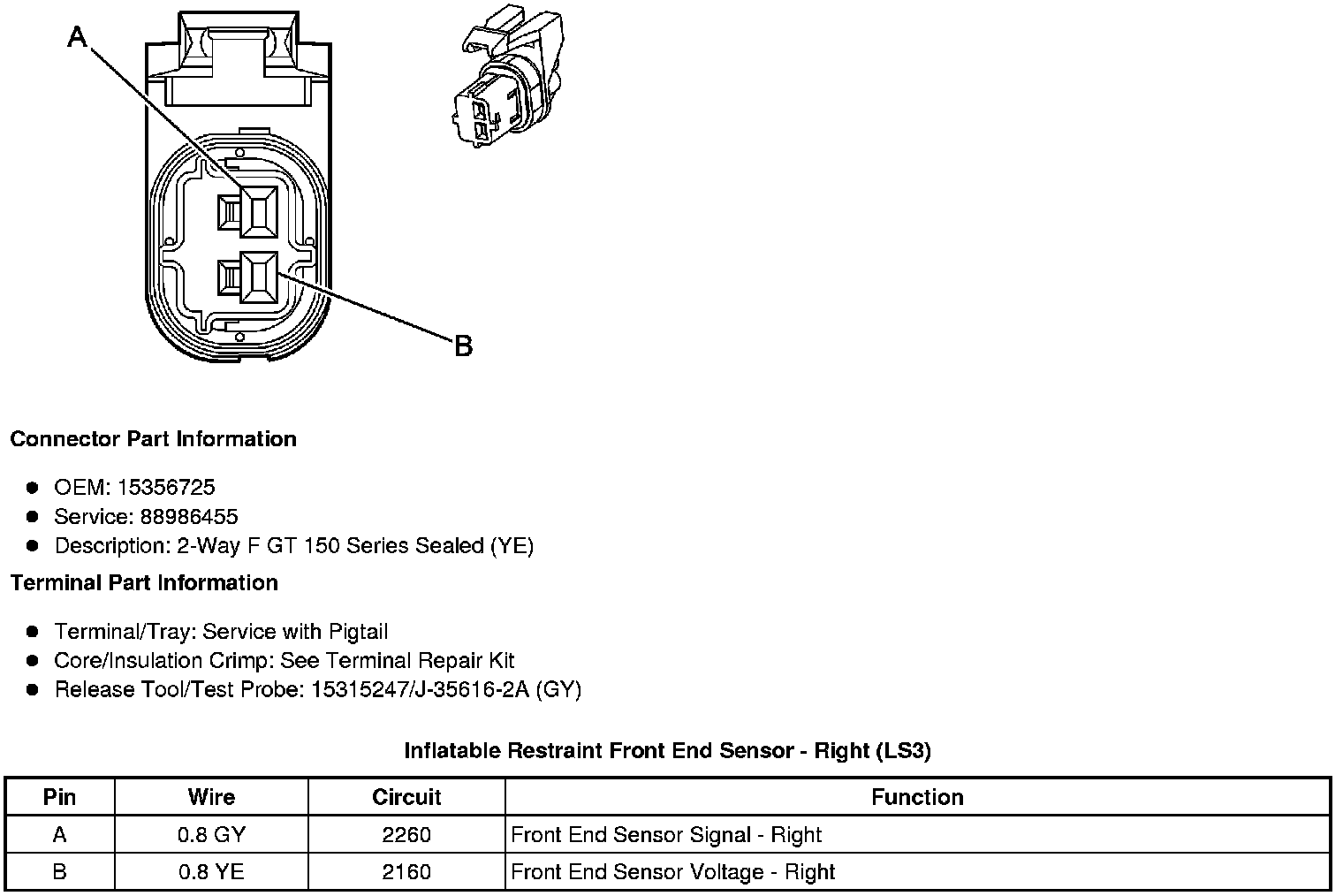

Inflatable Restraint Front End Sensor - Right (LS3)

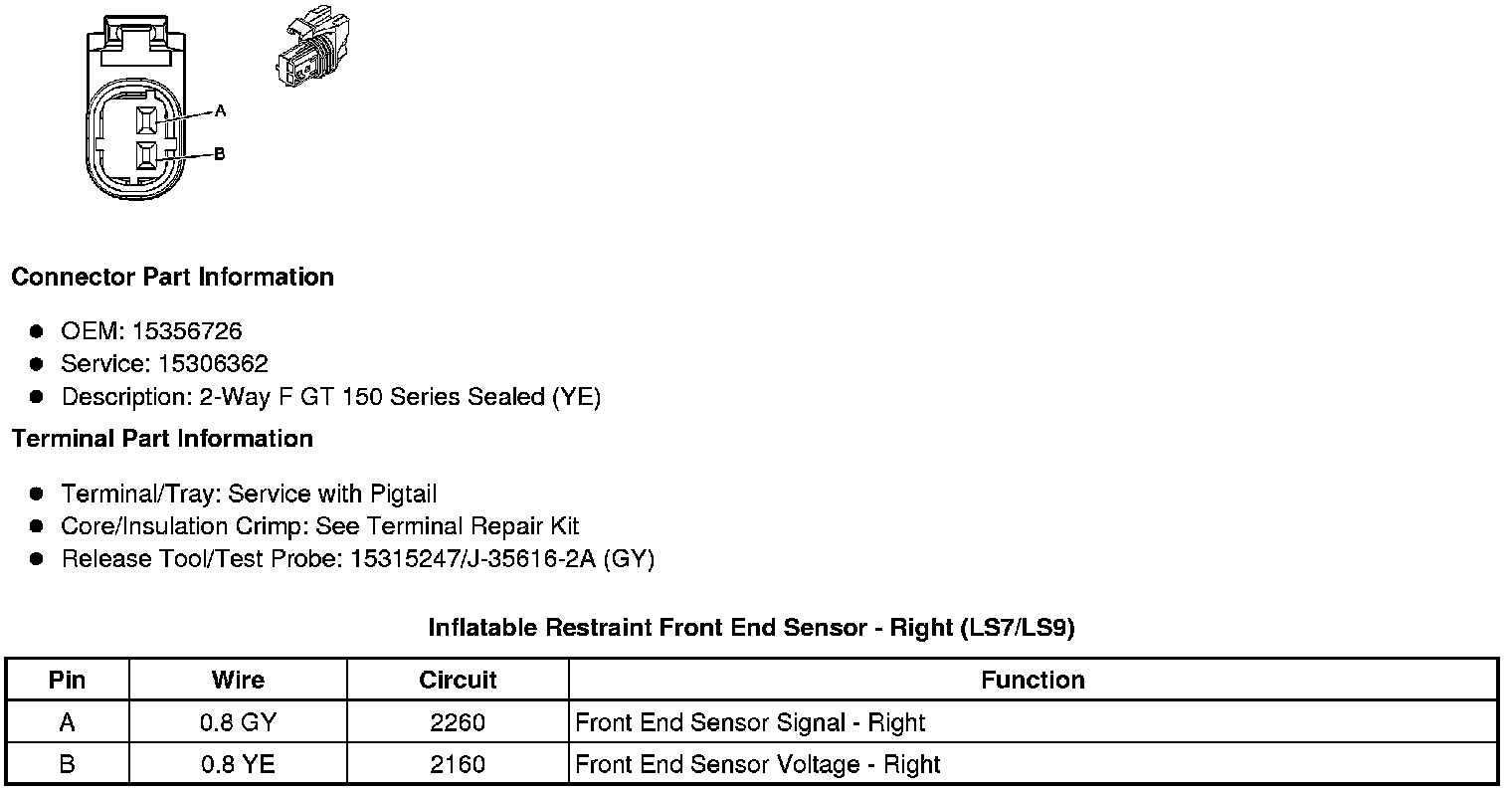

Inflatable Restraint Front End Sensor - Right (LS7/LS9)

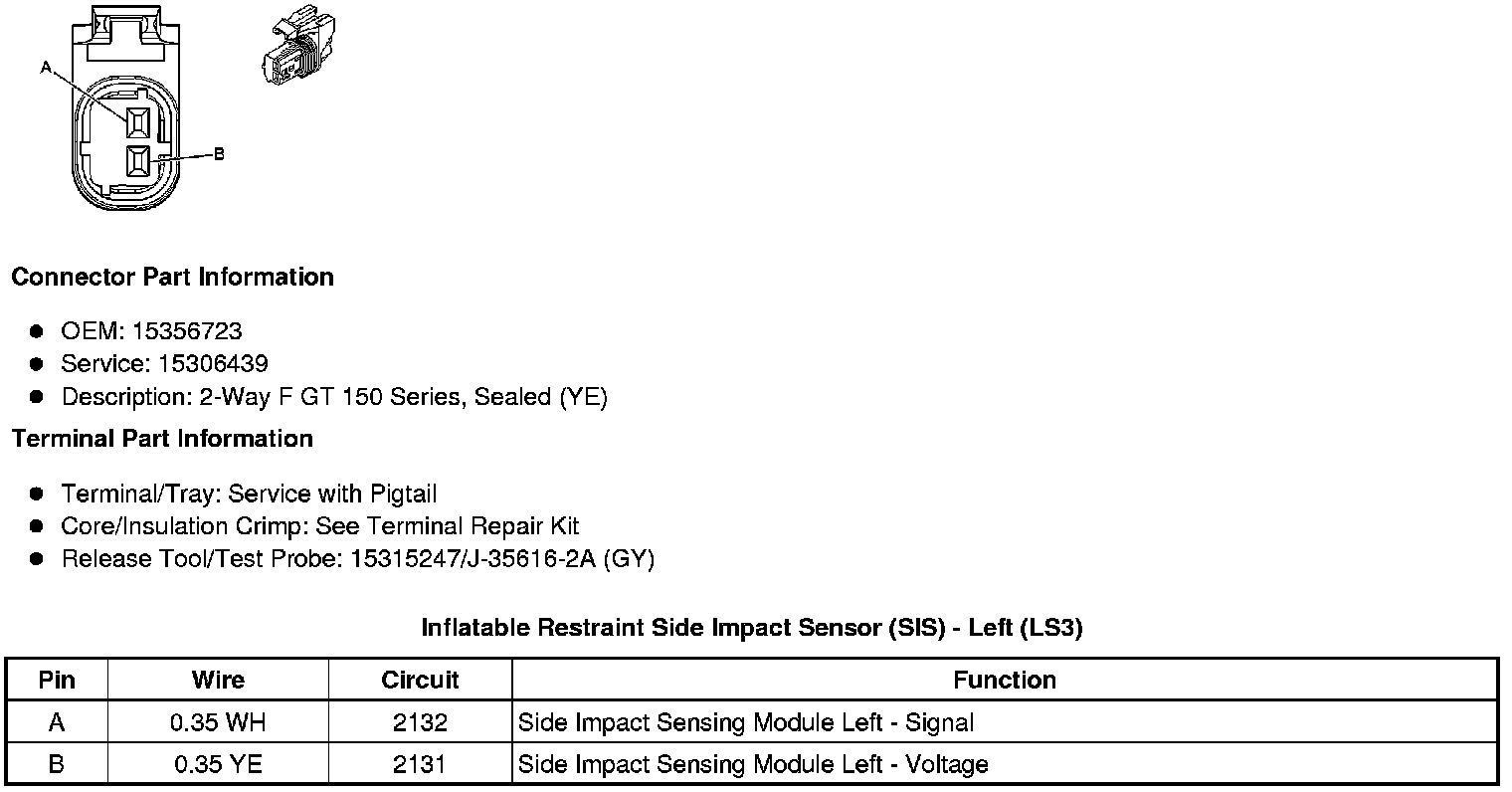

Inflatable Restraint Side Impact Sensor (SIS) - Left (LS3)

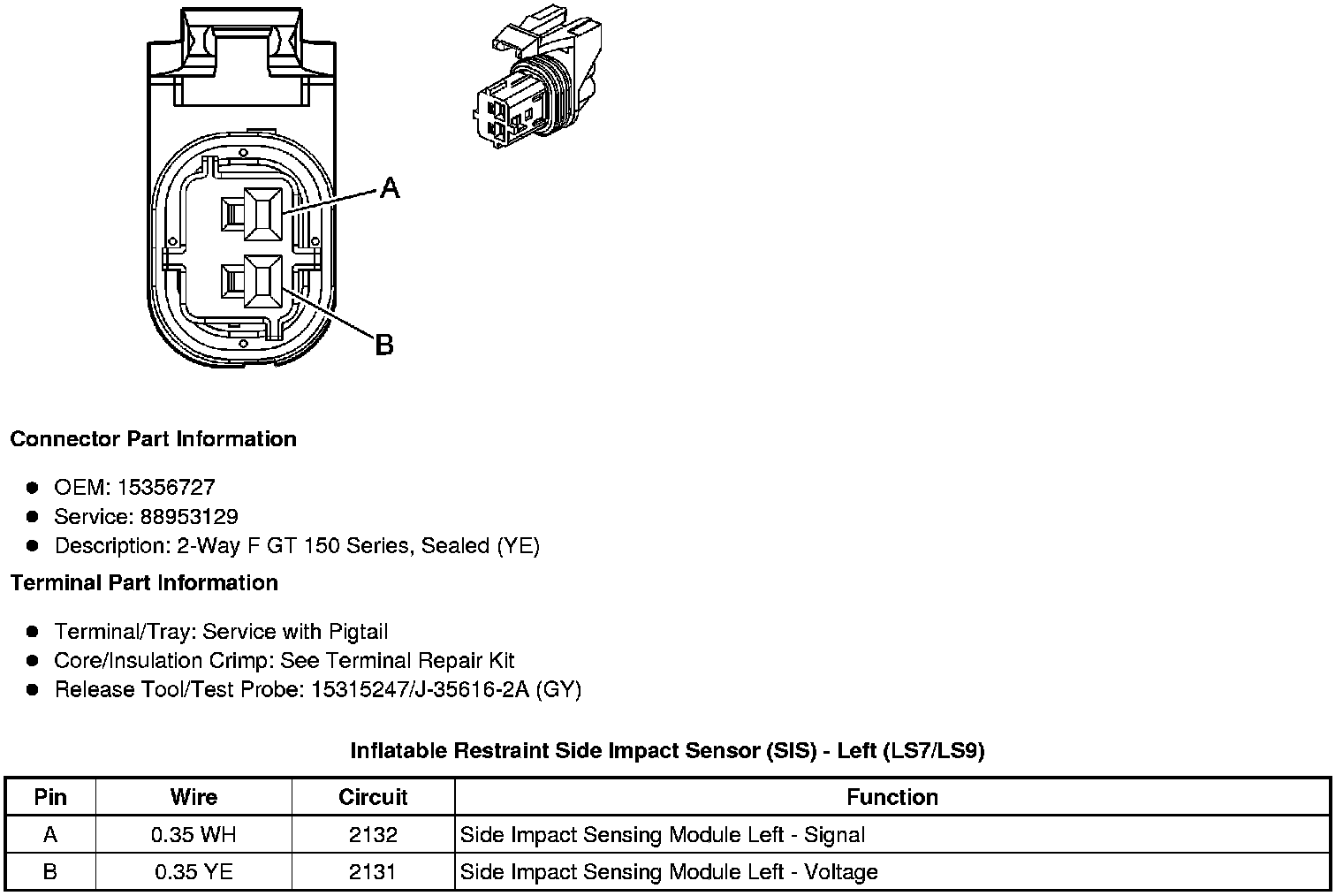

Inflatable Restraint Side Impact Sensor (SIS) - Left (LS7/LS9)

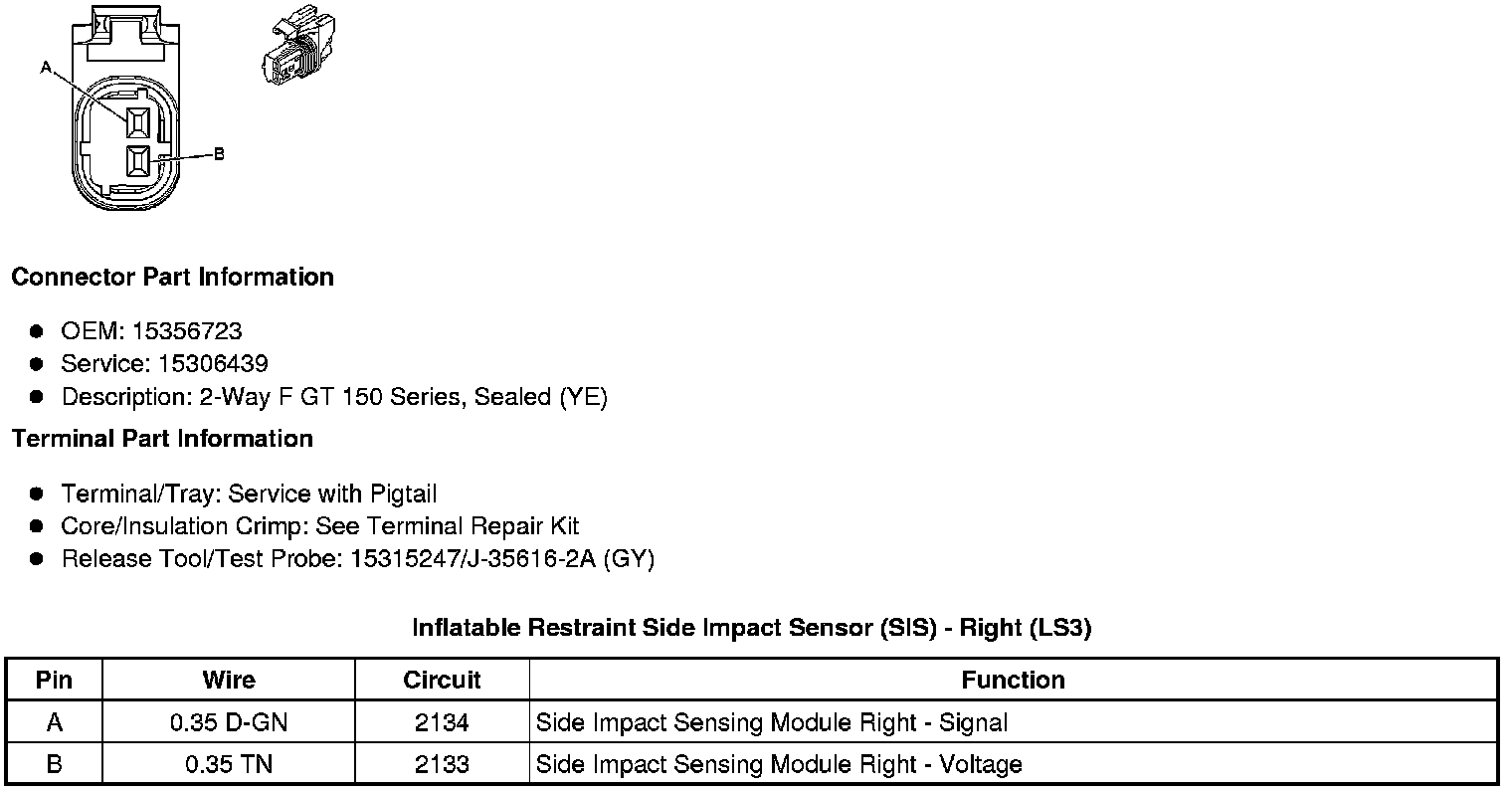

Inflatable Restraint Side Impact Sensor (SIS) - Right (LS3)





Inflatable Restraint Side Impact Sensor (SIS) - Right (LS7/LS9)
