Master Splice List




Master Electrical Component List

J101 - J105:

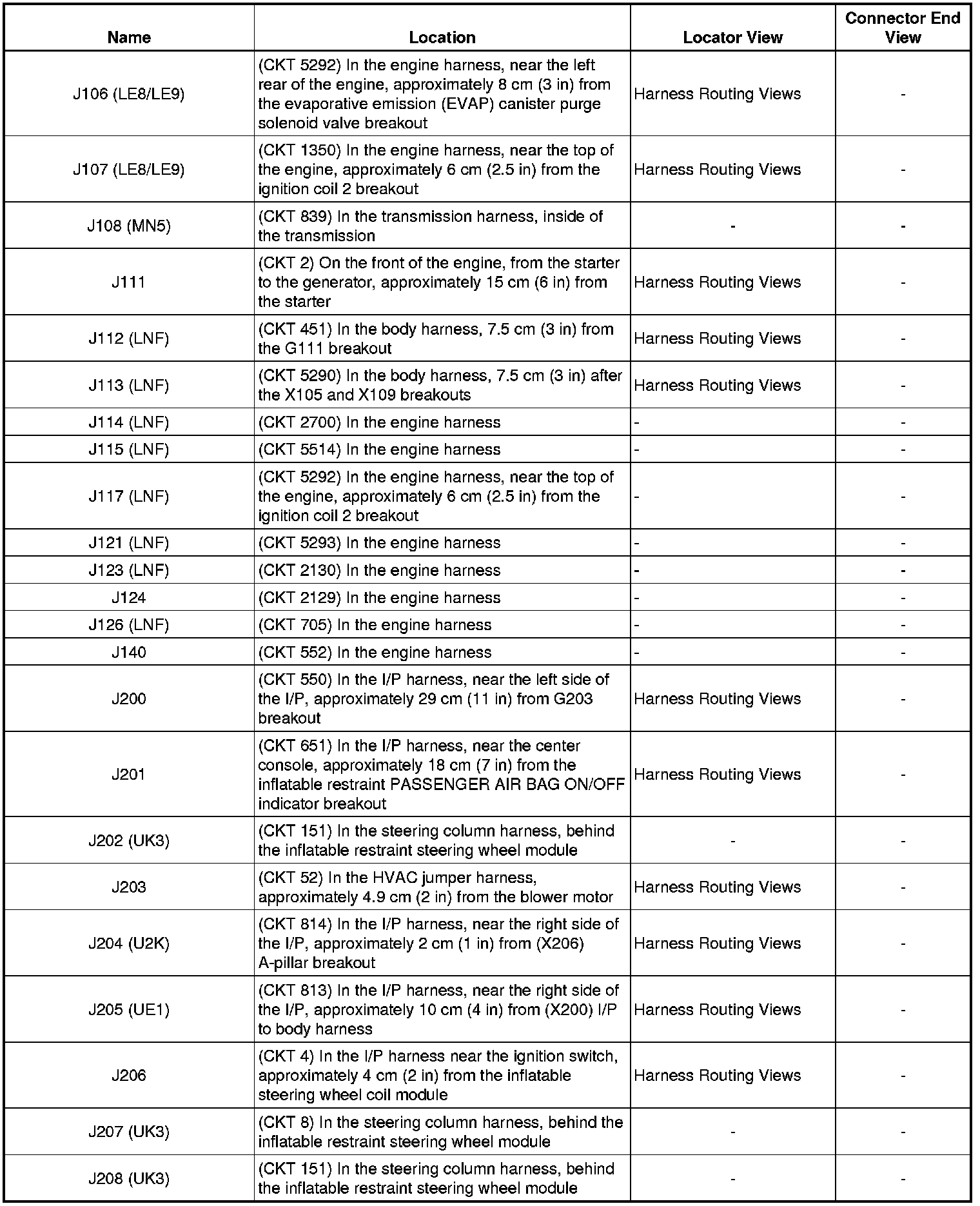

J106 - J208:

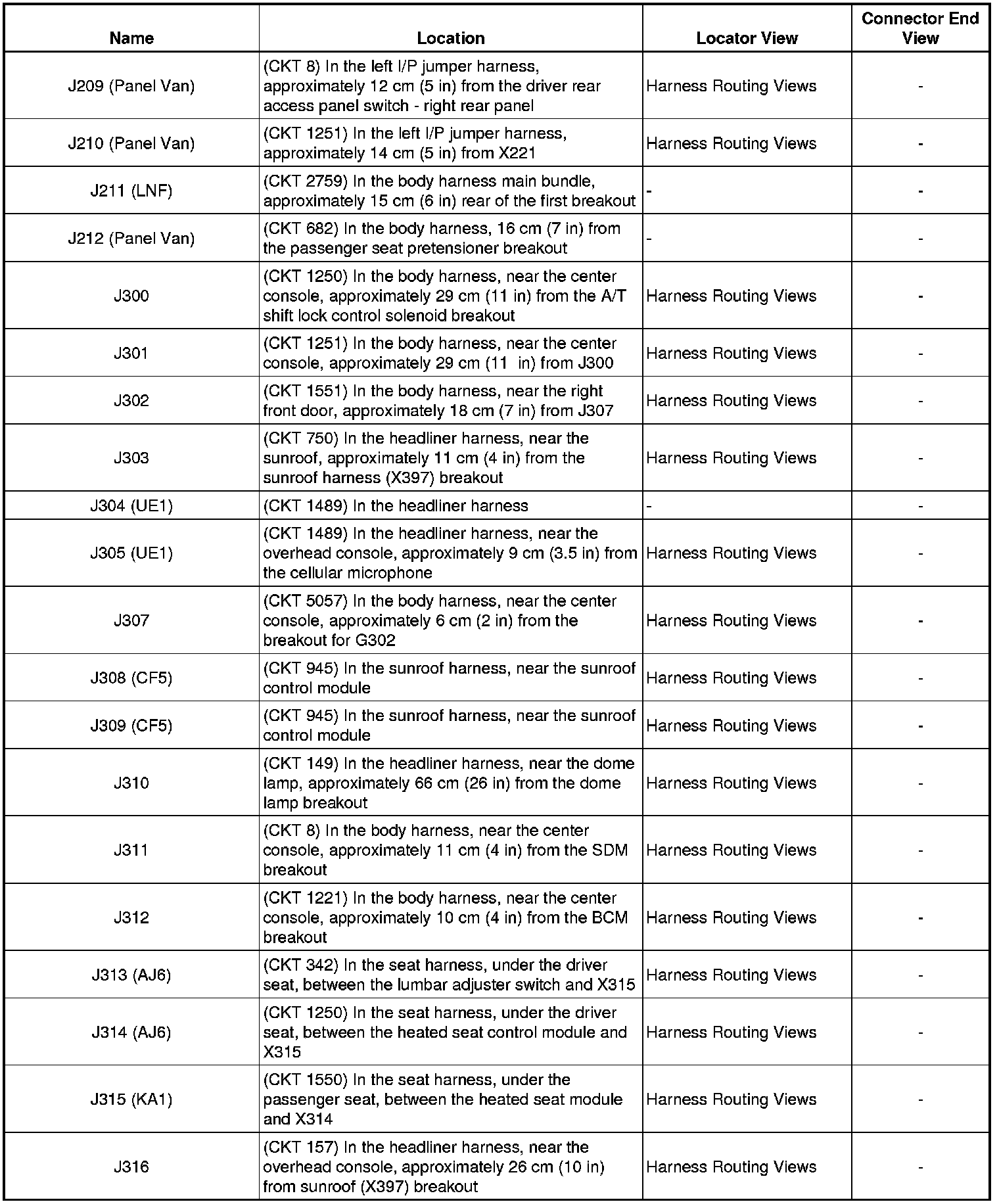

J209 - J316:

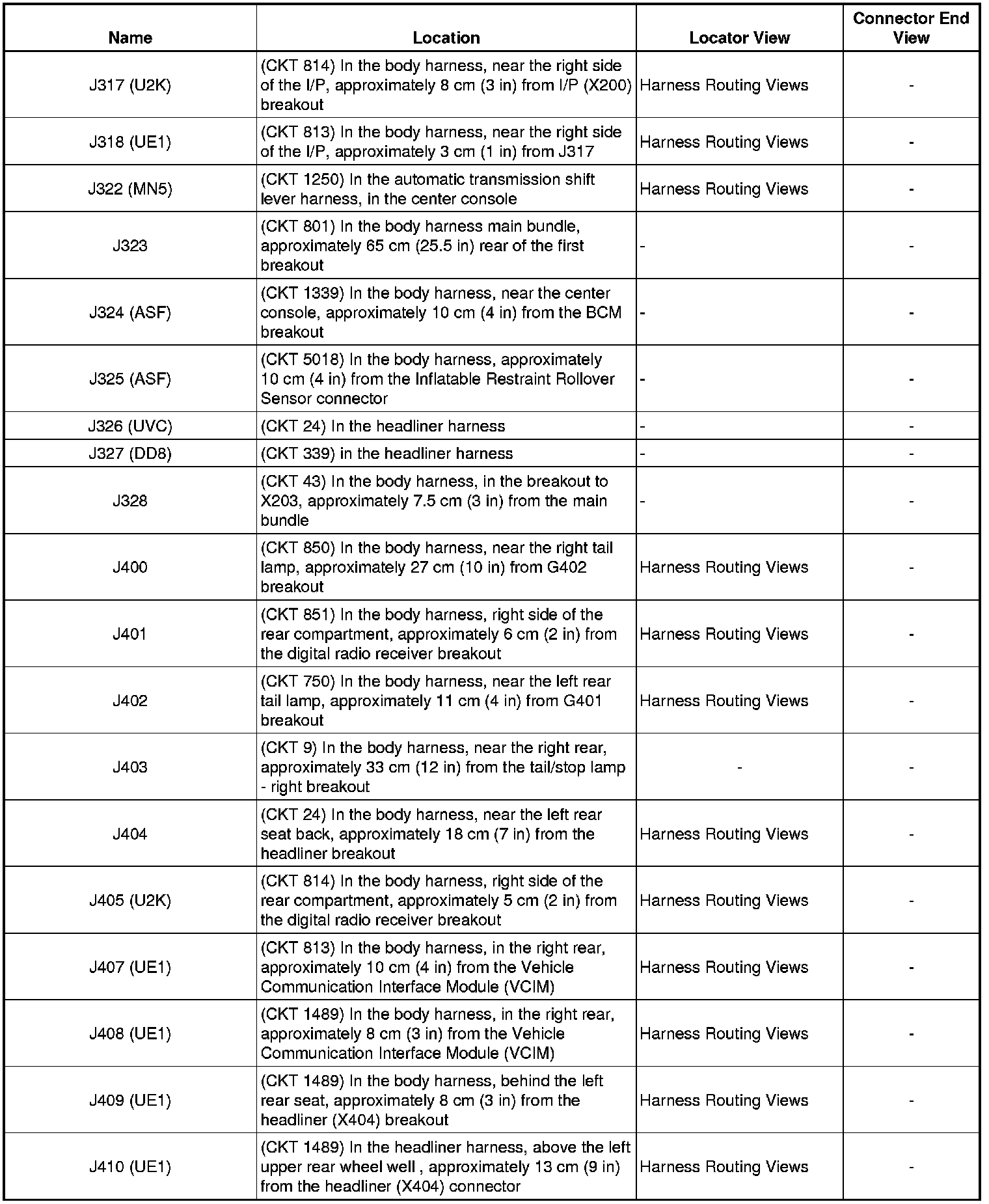

J317 - J410:

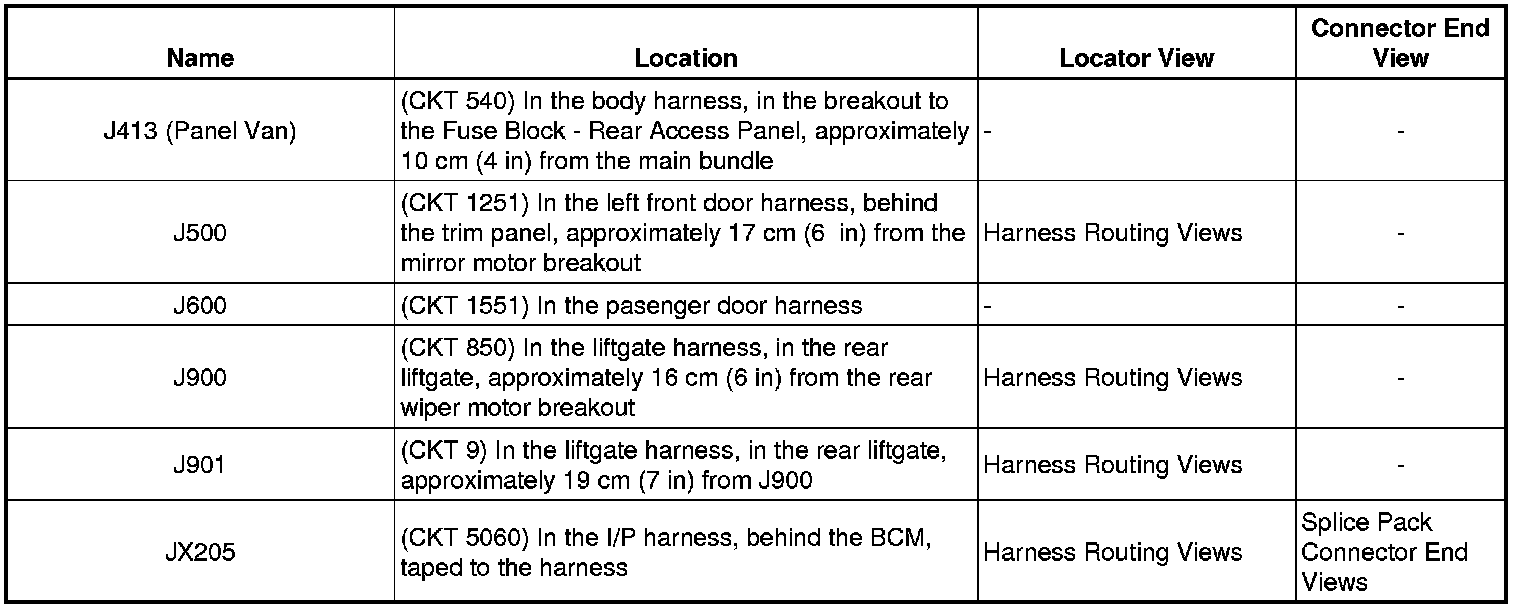

J413 - JX205:
